TECO T-Verter E2 Series - Installation Type for E2-1 P2-201 N4 X IP65; Inverter Circuit Diagram

24

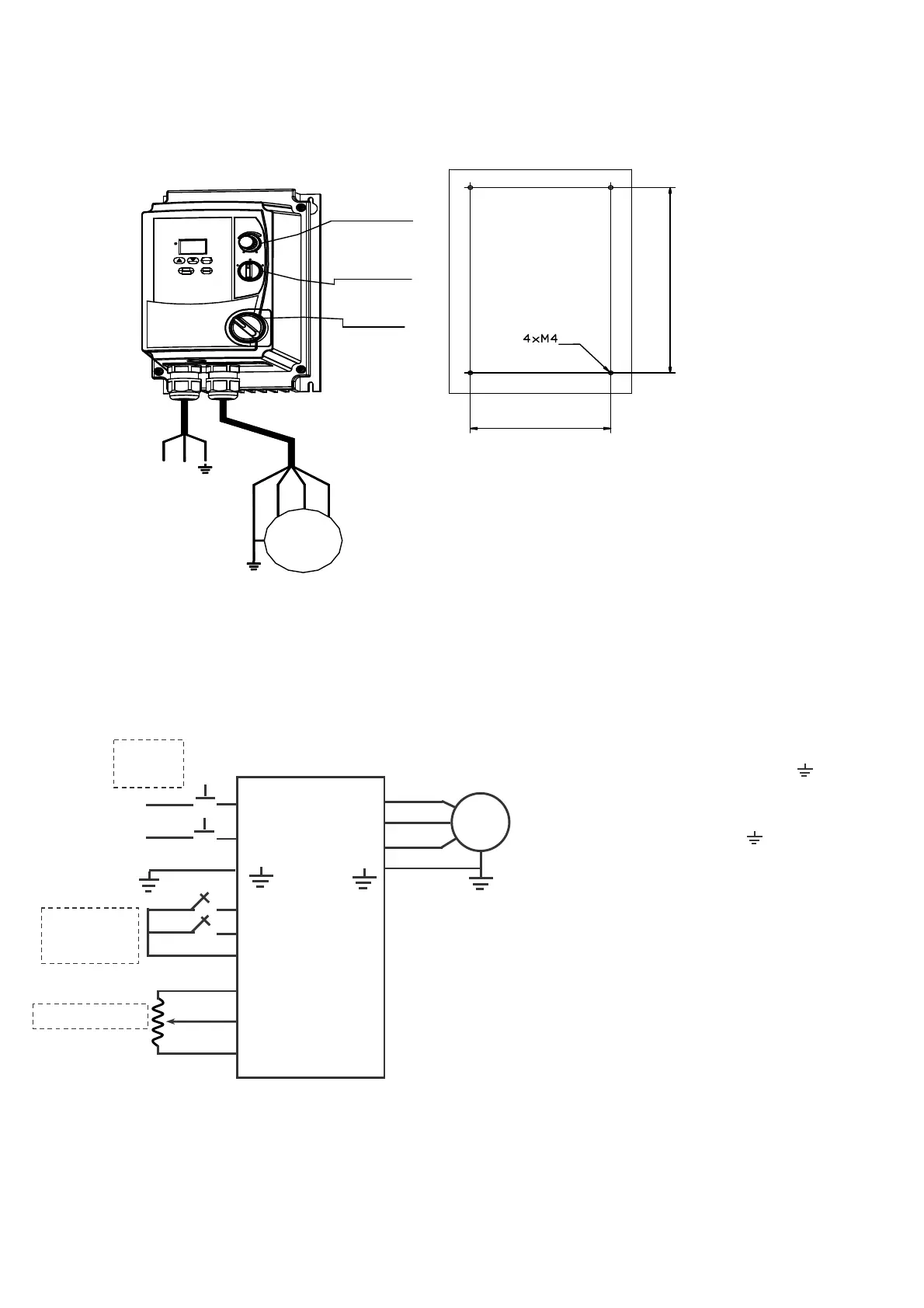

E2-1P2/1P5/101/2P2/2P5/201- - N4X(IP65)TYPE INSTALLATION :
SWITCH
POWER
Potentiometer
REV-0-FWD
SWITCH
L1 L2
RUN
STOP
3 Phases
IM
ENT
DSP
FUN
DATA
RESET
100~120V
or
200-240V
50/60 Hz
Single Phases
T3T2T1
CIRCUIT DIAGRAM
NOTE:
(1). Input source : single-phase(L1,L2,
)
ensurin
g
that it is connected to a 100~120 or 200~240
supply.
(2). Output Moter : three-phase(
,T1,T2,T3).
Caution :
‧Do not start or stop the inverter using the
main circuit power.
‧FOR E2-1P2~201- -N4S TYPE :
Please always remain REV-0-FWD switch at 0
position. In order to keep inverter has no
running signal before power-on again after
power supply interrupted.Otherwise, injury may
result.
‧FOR E2-1P2~201- -N4S TYPE :
Please always remain RE or FW switch at OFF
position. In order to keep inverter has no
running signal before power-on again after
power supply interrupted.Otherwise, injury may
result.
3
PHASE
IM
10V
VI
0V
FW
RE
12V
L1
L2
T1
T2
T3
POWER
SWITCH
REV-0-FWD
SWITCH
Potentiometer
AC
100~120
or
200~240
50/60HZ
NOTE :
1. POWER SWITCH , REV-0-FWD SWITCH AND
Potentiometer are only for E2-1P2~201- N4S TYPE
2. Power supply cable : #14 AGE (2.0mm² )
3. Motor cable : #16 AGE (1.25mm² )
4. Torque value of Screw :
(1). Power/Motor cable (plug in) Therminal : 5kg-cm(4.34 in-lb
)
(2). Remote control wire : 4kg-cm(3.47 in-lb)
(3). Outer Cover (M4) : 6kg-cm(5.20 in-lb)
123.4 mm
198.9 mm
