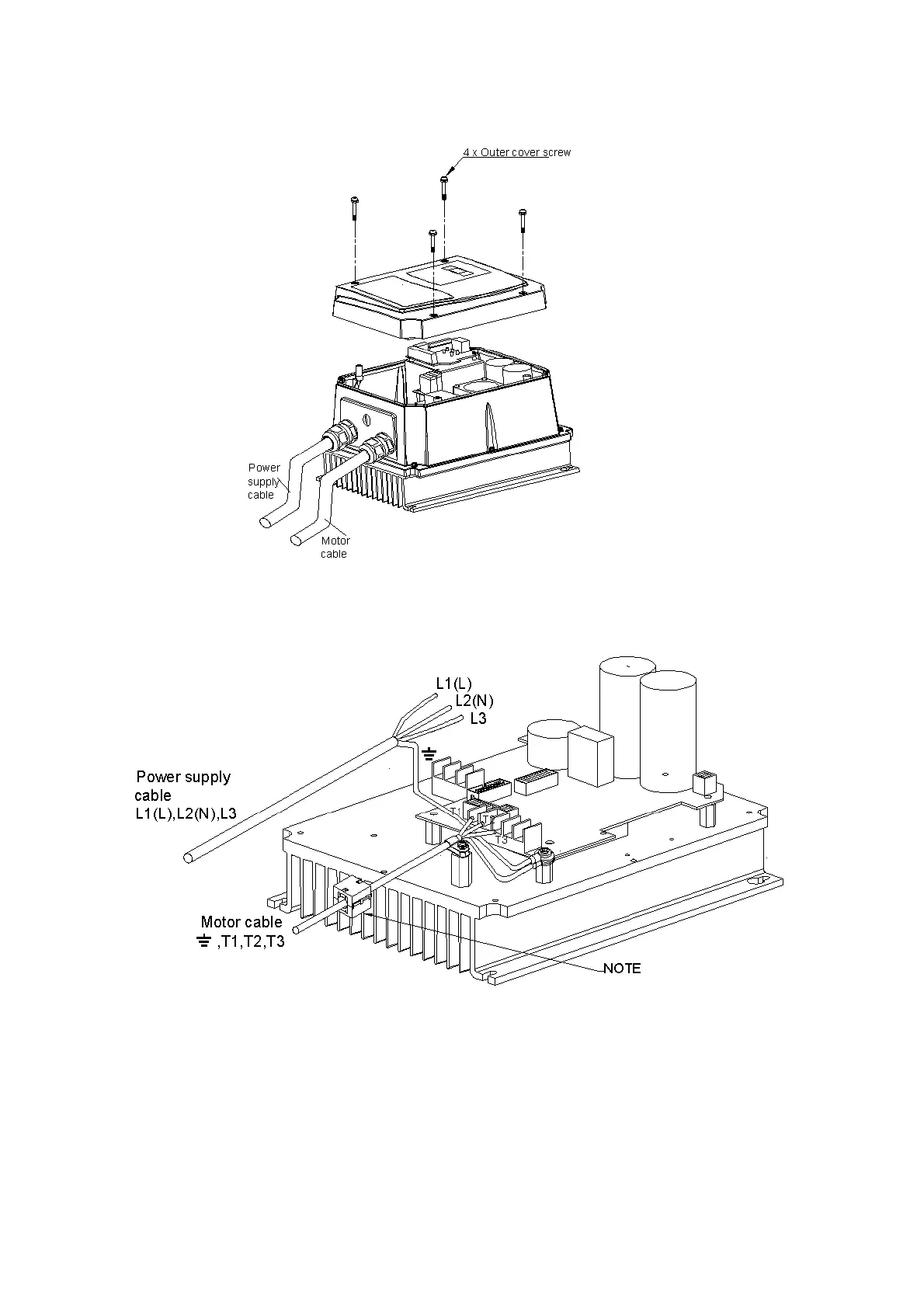

E2-202/203/401/402/403—N4 (WITHOUT SWITCH TYPE) CONNECTIONS&EMC MOUNTING:
CONNECTION
MOUNTING
NOTE:
For ALL FILTER MODELS, additional items will be find inside the box including: [1] pcs of EMC
conformed waterproof (IP65) ferrite core; [1]pcs of metal fastener; [1]pcs of MF Zin 5-C screw.
"CAUTION: if application use requires meeting EMC regulation, you MUST first constrain the motor
cables, close the ferrite core onto the motor cable outside the plastic enclosure as stated in the above
diagram. Please also note the length of the Motor cable CANNOT exceed 5M under EMC regulation"
