TECO T-Verter E2 Series User Manual

26

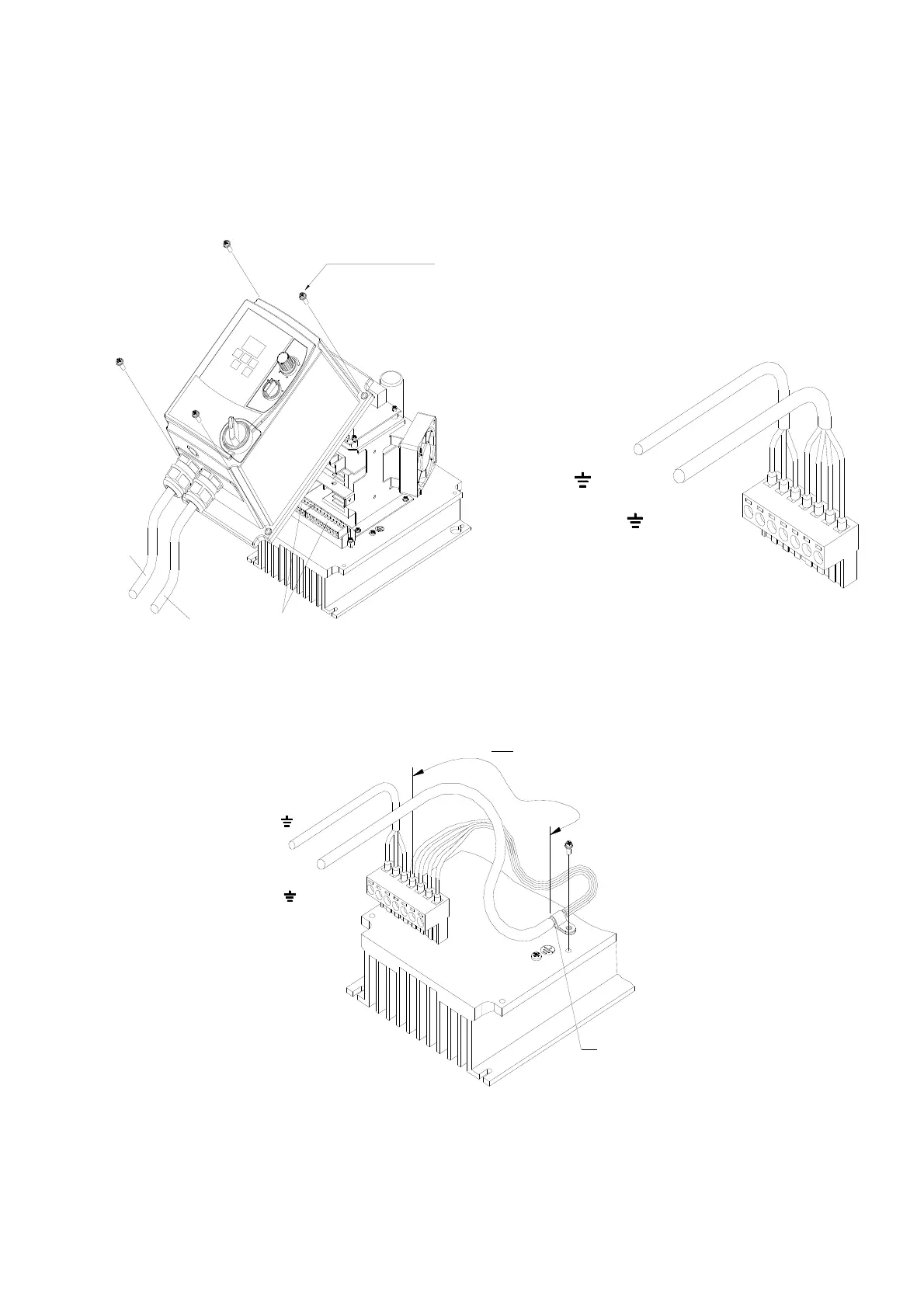

E2-1P2~201- -N4S (WITH SWITCH TYPE ) EMC MOUNTING & CONNECTIONS :
4 x Outer cover screw
CONNECTIONS
Plug-in terminals
Power
supply
cable
Motor cable
EMC MOUNTIING
Power supply
cable
L1,L2,
Cutting Length
of cable shield
200mm
Cable shieldin
g
connected to
ground clamp
Note:
TM2 Remote control
cable should be connect
to ground screw
Length: Max 2M
,T1,T2,T3
Motor cable
,T1,T2,T3
Motor cable
Power supply
cable
L1,L2,
