TECO T-Verter E2 Series User Manual

59

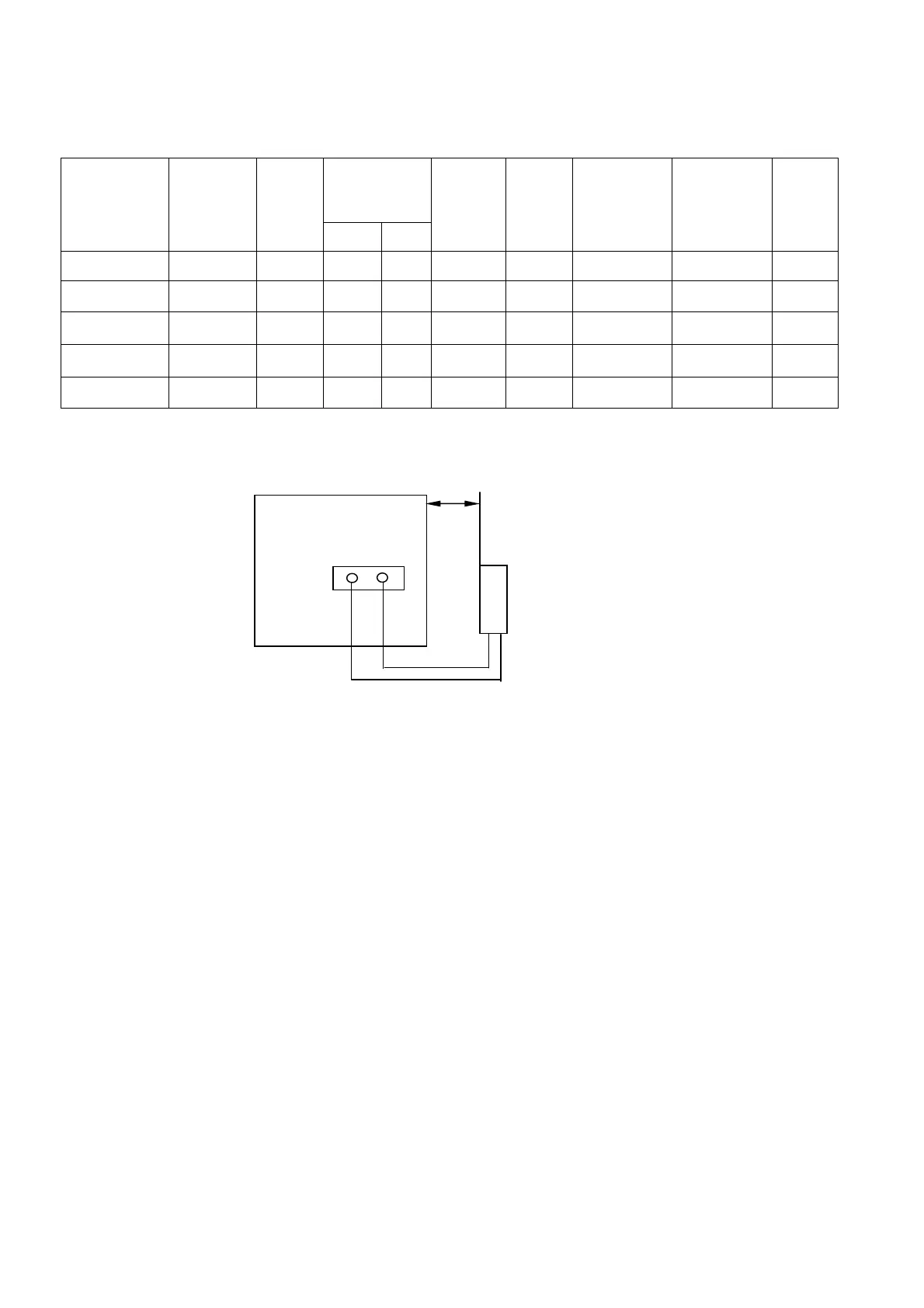

Specification of Braking Resister
Specification
of Braking
Resister
Model of
Inverter
Model of
Braking
resister
Rate of
Motor
(KW)
(W)
(Ω)
Braking
Resister
ED(%)
Torque
of
braking
(%)
Size of
resister
(L*W*H) mm
Size of
carton
(L*W*H)
mm
Weight
(5pc)
N.W
(kg)
E2-202-Hxxx BRN2-202 1.5 150 100 10 119
215*40*20 325*225*70.5
2.1
E2-203-Hxxx BRN2-203 2.2 200 70 9 116
165*60*30 200*195*80
3.2
E2-401-H3xx BRN2-401 0.75 60 750 8 125
115*40*20 200*195*80
1.1
E2-402-H3xx BRN2-401 1.5 150 400 10 119
215*40*20 325*225*70.5
2.1
E2-403-H3xx BRN2-403 2.2 200 250 8 128
165*60*30 200*195*80
3.2
Note: 1. Braking level: 385/770Vdc for E2-200/400 series
2. Braking resister mounting is below:
5cm
Inverter
P R
TM1 Braking resister
