Tecsun PL-505 - LCD Display

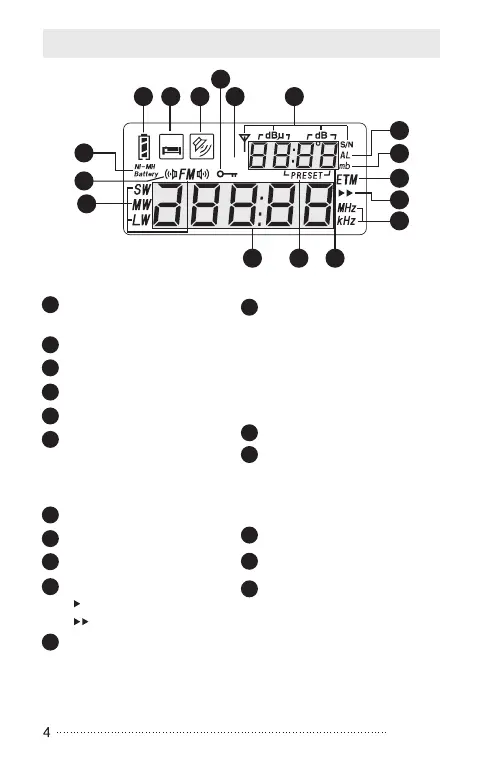

LCD DISPLAY
Battery consumption indicator /
Charging indicator
1
2
Sleep timer indicator
3
Alarm on/off indicator
6
Signal indicators
dBu: signal strength unit
dB : Signal to Noise Ratio
(S/N) unit
7
8
SW meter band indicator
9
ETM indicator
5
Temperature (Temp.)
Tuning speed:
" " Slow Tuning
" " Fast Tuning
10
11
kHz: frequency unit for MW,
LW & SW
MHz: frequency unit for FM
Alarm time indicator
15
Digital number display (4 Digits)
With radio off: world time, alarm
time, temperature
With radio on: word time, signal
strength / SNR, alarm time,
temperature, local time, memory
address, meter band.
12
14
Digital number display
With radio off: local time
With radio on: frequency display,
band display
FM stereo status indicator
16
17
Preset memory address
13
Rechargeable batteries indicator
PL-505
1
2 3 5
6
7
8
9
10
11
15
17
14
13 12
Temp.
SLEEP
4
16
4
Key-lock indicator
Band indicator
