844E Sprayer Crontrol
98-70006 R3

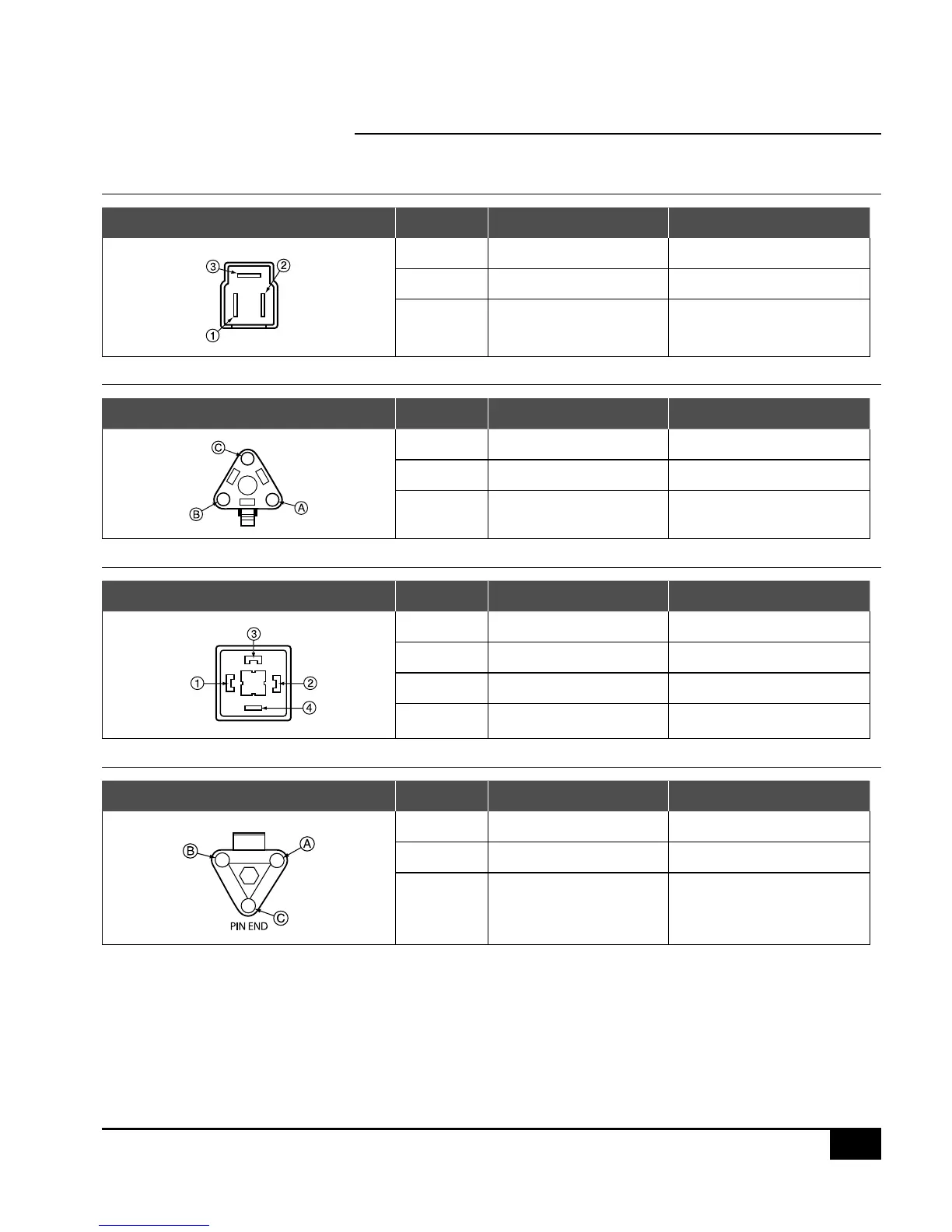

Figure 1-16: Power Connector
Power Connector Pin No. Wire Color Signal Name
1 Brown +12 VDC (Computer)
2 Blue +12 VDC (Valves)
3 Yellow/Green Ground
Figure 1-17: Speed Sensor Connector
Speed Sensor Connector Pin No. Wire Color Signal Name
A Brown Power Out
B White Speed Signal
C Green Ground
Figure 1-18: Pressure Sensor Connector
Pressure Sensor Connector Pin No. Wire Color Signal Name
1 Brown Power Out
2 White Speed Signal
3 N/C
3 N/C
Figure 1-19: Flow Sensor Connector
Flow Sensor Connector Pin No. Wire Color Signal Name
A Brown Power Out
B White Speed Signal
C Green Sensor Ground
