844E Sprayer Control

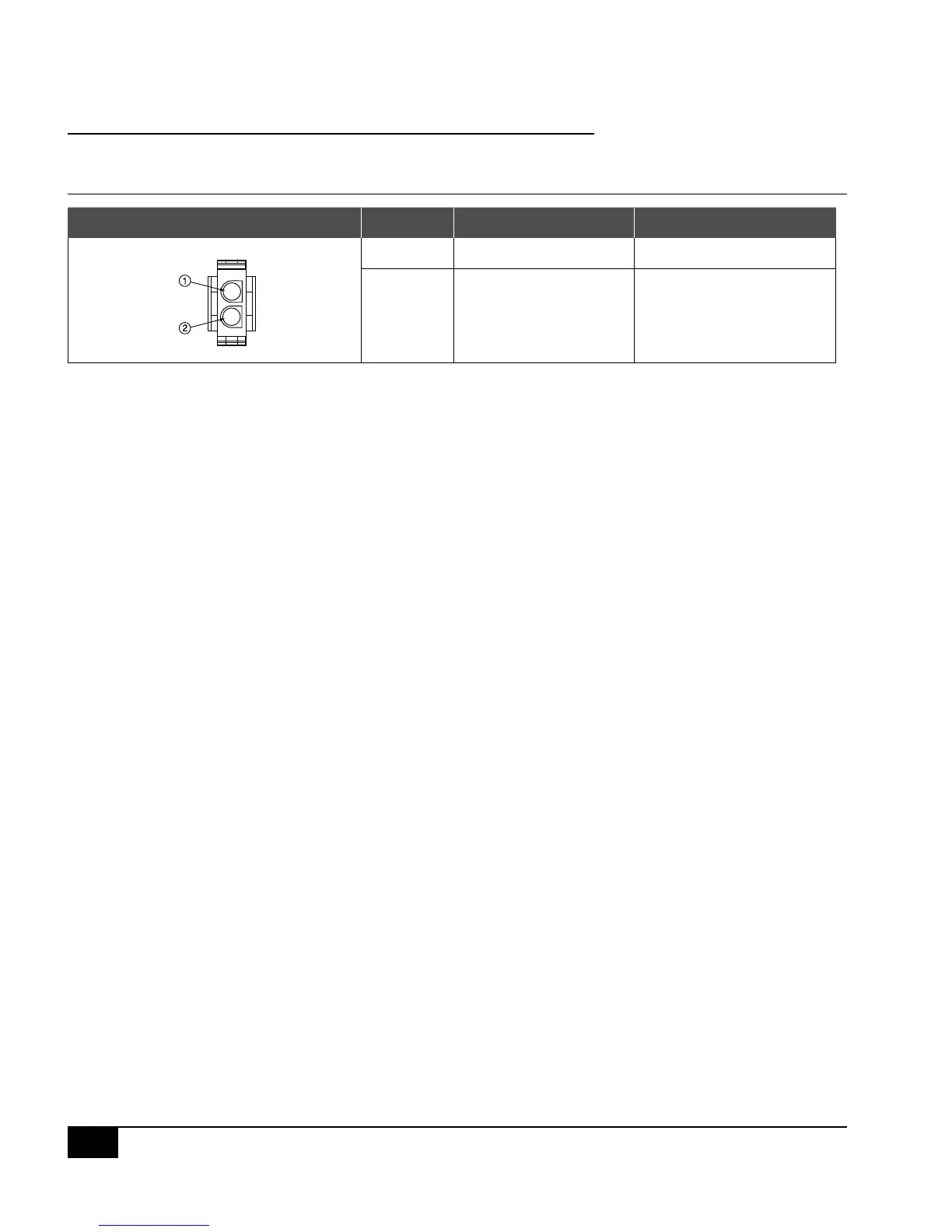

Figure 1-20: Regulator Connector
Regulator Connector Pin No. Wire Color Signal Name
1 Brown Power Out
2 White Speed Signal
NOTE: The 844 is designed to handle a maximum of 4 amps per boom section.
You are now ready to begin the programming of the
TeeJet 844 Sprayer Control.
Valves requiring DPDT switches are not compatible with the TeeJet 844 Sprayer Control.
