VOT1; Rev 1.5; EN; 5.11.2015
TKT66 ā Installation and maintenance
5.3 Commissioning
All operations related to the system installation and commissioning must be performed by a
skilled electrician.
The two empty columns of the type label inside the central battery unit shall be marked with the
total load connected to the central battery unit and the nominal battery mode duration.
5.3.1 Setting of battery capacity
The charging current has been set to minimum at the factory. The charging current must be set /
checked as follows:

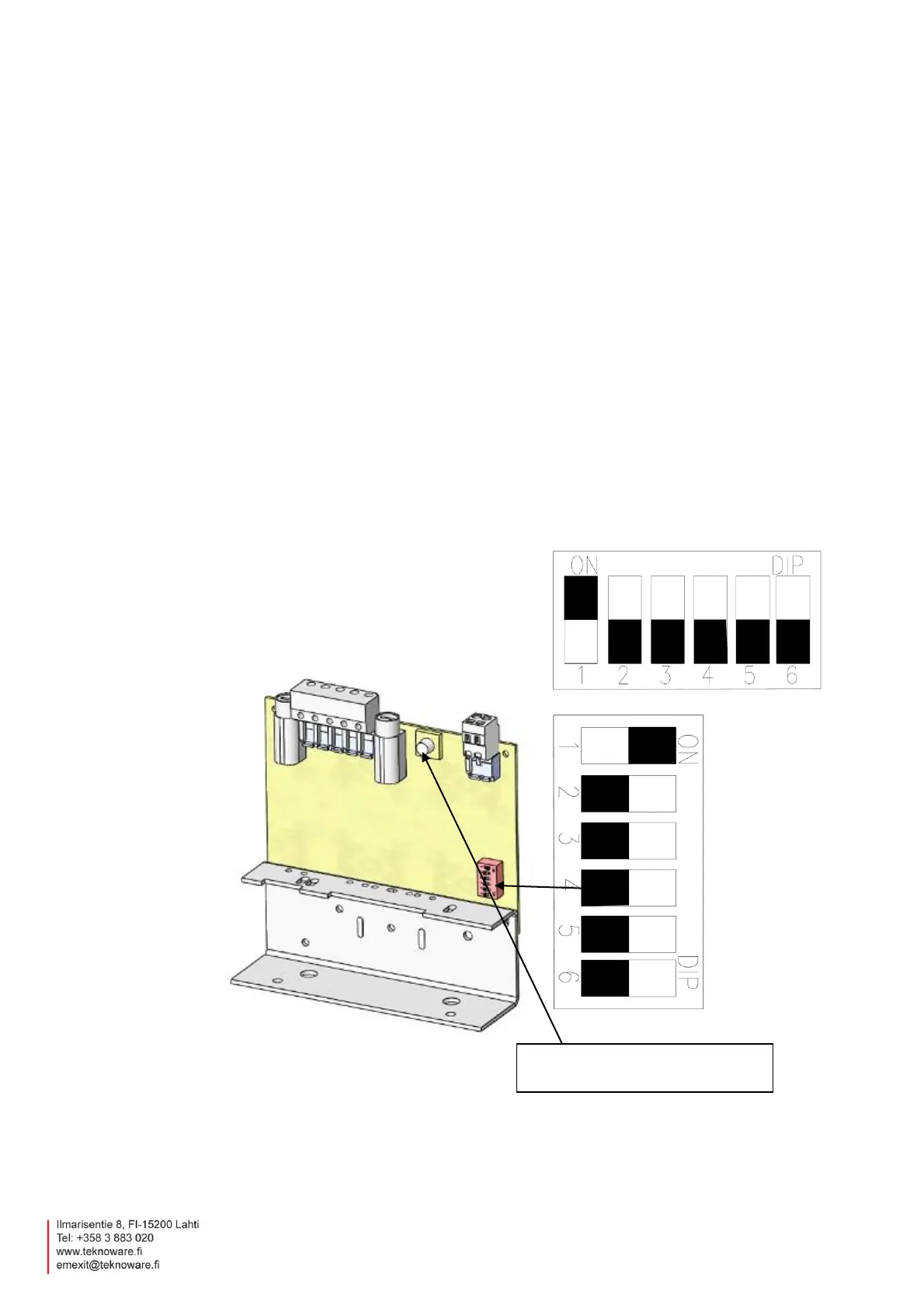

1. Set the current on the TS5 XST0201(B) DIP switch according to the guidelines in the illustration
below.
NOTE: The charging current must ALWAYS be set / checked based on the number of ampere-hours
(Ah) in the batteries used. Incorrect settings may damage the batteries. When all dip switches are set to
'OFF' position, the charging current is set correctly for 65 Ah batteries. Other battery sizes are as shown
in the sticker. The sticker shows a setting for a 7 Ah charging current as an example.
NOTE: THE CHARGING CURRENT SHALL ALWAYS BE SET WITH MAINS SUPPLY OFF. ONLY
ONE DIP SWITCH IS ALLOWED TO BE SWITCHED ON AT THE SAME TIME.
Forced charge button for
batteries
