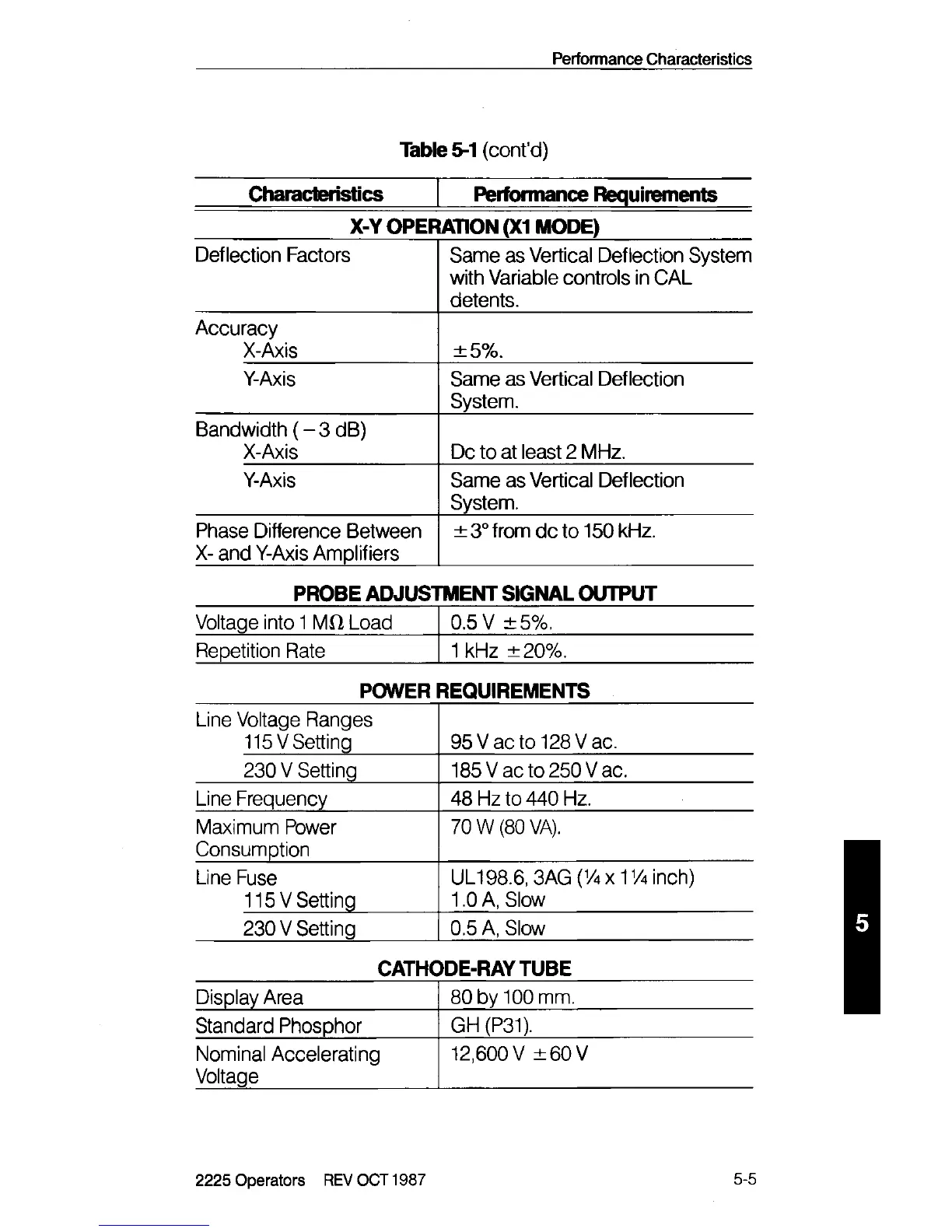

Performance Characteristics
Table 5-1 (cont’d)
Characteristics
Performance Requirements
X-Y OPERATION (X I MODE)
Deflection Factors
Same as Vertical Deflection System
with Variable controls in CAL
detents.
Accuracy
X-Axis
±5%.
Y-Axis
Same as Vertical Deflection
System.
Bandwidth ( - 3 dB)
X-Axis
Dc to at least 2 MHz.
Y-Axis
Same as Vertical Deflection
System.
Phase Difference Between
X- and Y-Axis Amplifiers
± 3° from dc to 150 kHz.
PROBE ADJUSTMENT SIGNAL OUTPUT
Voltage into 1 M fl Load 0.5 V ±5%.
Repetition Rate
1 kHz ±20%.
POWER REQUIREMENTS
Line Voltage Ranges
115 V Setting 95 Vac to 128 Vac.
230 V Setting
185 Vac to 250 Vac.
Line Frequency
48 Hz to 440 Hz.
Maximum Power
Consumption
70 W (80 VA).
Line Fuse
115 V Setting
UL198.6, 3AG {Va x 1 Va inch)
1.0 A, Slow
230 V Setting
0.5 A, Slow
CATHODE-RAY TUBE
Display Area
80 by 100 mm.
Standard Phosphor
GH (P31).
Nominal Accelerating
Voltage
12,600 V ±60 V
2225 Operators REV OCT 1987
5-5
