General
Information
-
2236
Operators
П
П

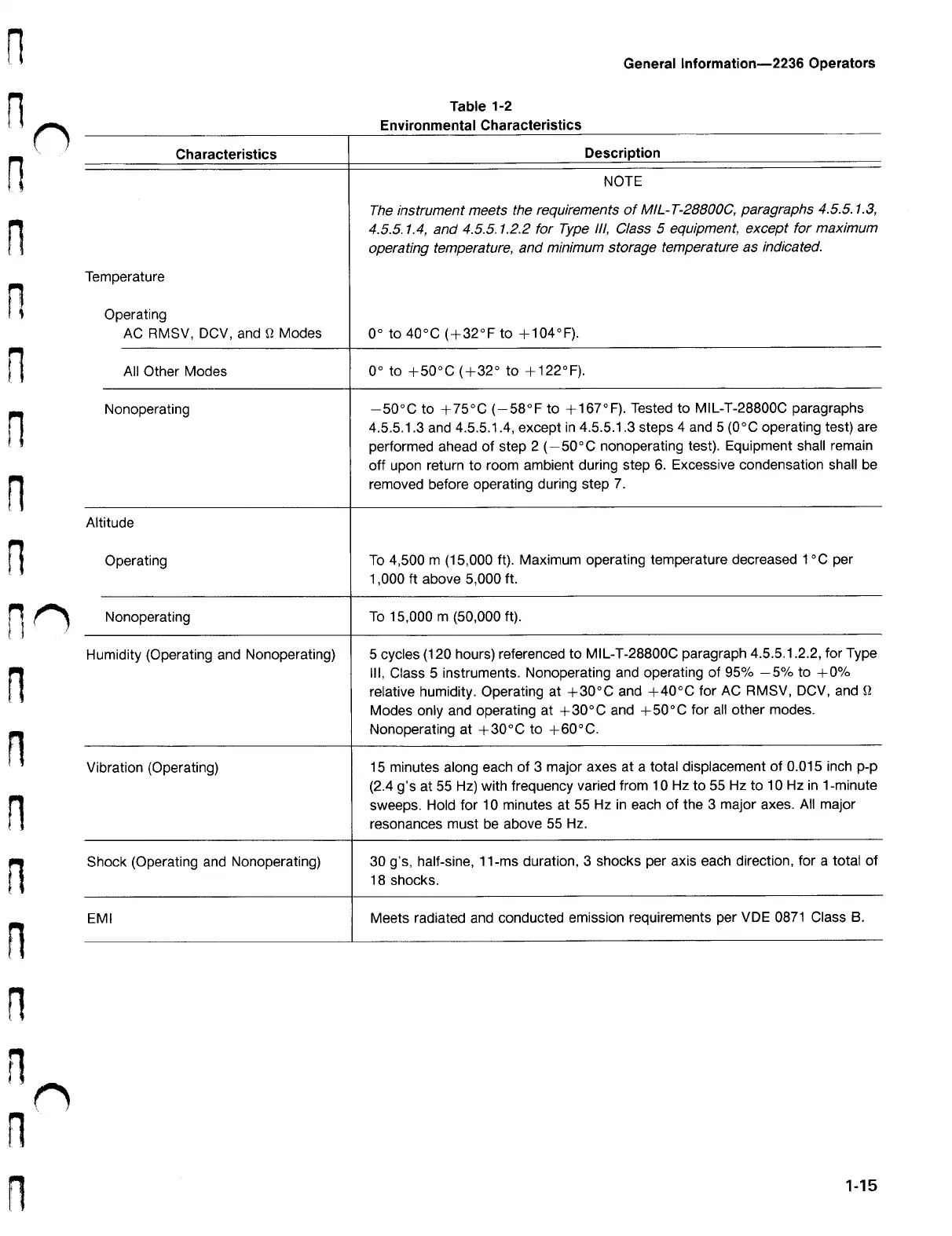

Table
1-2
Environmental
Characteristics
C
Characteristics
Description
NOTE
The
instrument
meets
the
requirements
of
MIL
-
T
-
28800C
,
paragraphs
4.5.5.1.3
,
4.5.5.1.4
,
and
4.5.5.1.2.2
for
Type
III
,
Class
5
equipment
,
except
for
maximum
operating
temperature
,
and
minimum
storage
temperature
as
indicated
.
л
П
Temperature
Operating
AC
RMSV
,
DCV
,
and
I
Modes
°
to
40
°
C
(
+
32
°
F
to
+
104
°
F
)
.
All
Other
Modes
°
to
+
50
°
C
(
+
32
°
to
+
122
°
F
)
.
Nonoperating
-50
°
C
to
+
75
°
C
(
-58
°
F
to
+
167
°
F
)
.
Tested
to
MIL
-
T
-
28800C
paragraphs
4.5.5.1.3
and
4.5.5.1.4
,
except
in
4.5.5.1.3
steps
4
and
5
(
°
C
operating
test
)
are
performed
ahead
of
step
2
(
-50
°
C
nonoperating
test
)
.
Equipment
shall
remain
off
upon
return
to
room
ambient
during
step
6.
Excessive
condensation
shall
be
removed
before
operating
during
step
7
.
П
Altitude
Operating
TO
4,500
m
(
15,000
ft
)
.
Maximum
operating
temperature
decreased
1
°
C
per
1,000
ft
above
5,000
ft
.
on
Nonoperating
To
15,000
m
(
50,000
ft
)
.
Humidity
(
Operating
and
Nonoperating
)
5
cycles
(
120
hours
)
referenced
to
MIL
-
T
-
28800C
paragraph
4.5.5.1.2.2
,
for
Type
III
,
Class
5
instruments
.
Nonoperating
and
operating
of
95
%
-5
%
to
+
%
relative
humidity
.
Operating
at
+
30
°
C
and
+
40
°
C
for
AC
RMSV
,
DCV
,
and
1
Modes
only
and
operating
at
+
30
°
C
and
+
50
°
C
for
all
other
modes
.
Nonoperating
at
+
30
°
C
to
+
60
°
C
.
Vibration
(
Operating
)
15
minutes
along
each
of
3
major
axes
at
a
total
displacement
of
0.015
inch
p
-
p
(
2.4
g's
at
55
Hz
)
with
frequency
varied
from
10
Hz
to
55
Hz
to
10
Hz
in
1
-
minute
sweeps
.
Hold
for
10
minutes
at
55
Hz
in
each
of
the
3
major
axes
.
All
major
resonances
must
be
above
55
Hz
.
Shock
(
Operating
and
Nonoperating
)
30
g's
,
half
-
sine
,
11
-
ms
duration
,
3
shocks
per
axis
each
direction
,
for
a
total
of
18
shocks
.
EMI
Meets
radiated
and
conducted
emission
requirements
per
VDE
0871
Class
B.
П
П
n
П
7
7
1
П
C
1-15
