Tektronix 2236 User Manual

П
Section
2—2236
Operators

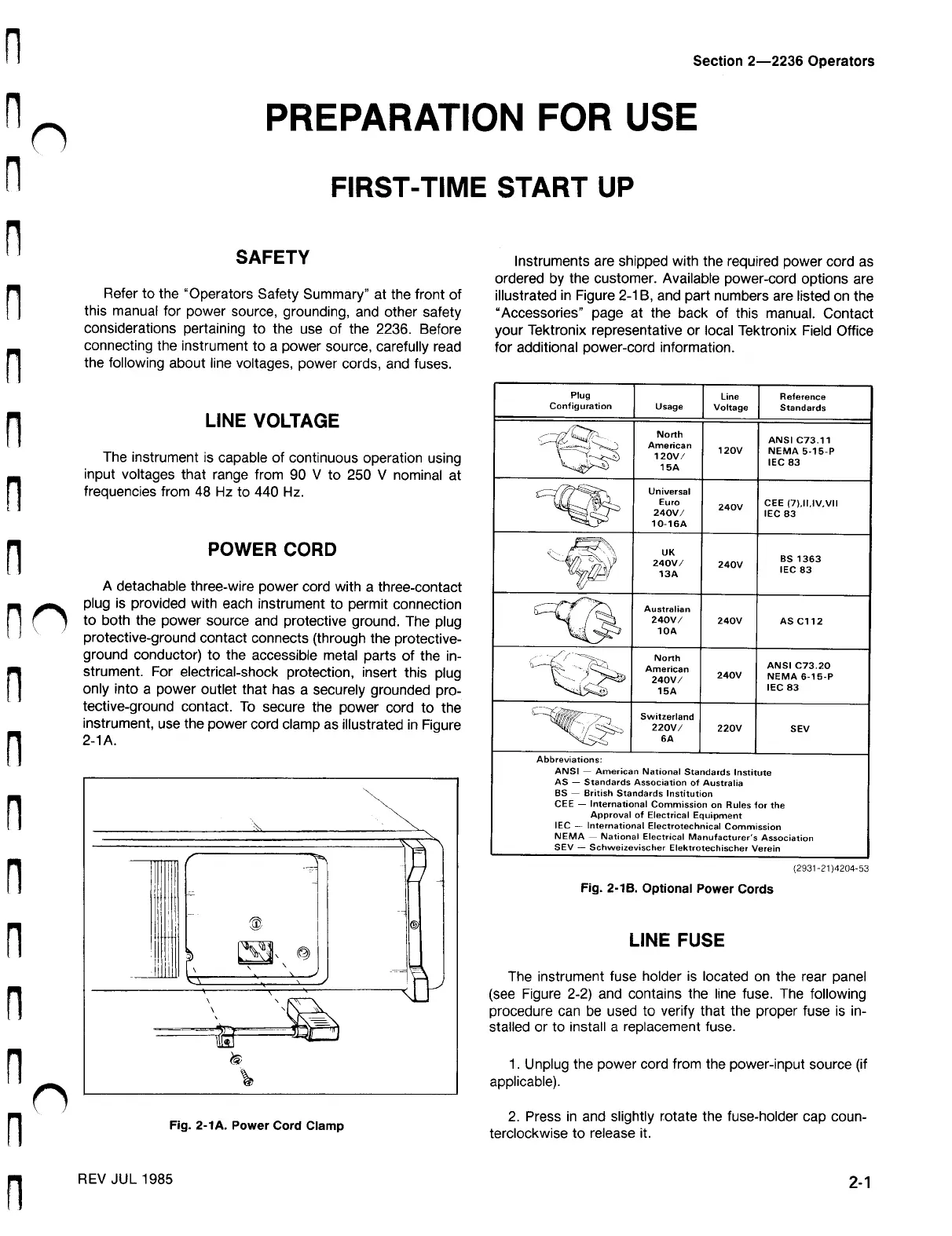

PREPARATION FOR USE
C
FIRST - TIME START UP
SAFETY
Refer to the " Operators Safety Summary " at the front of
this
manual for power
source
,
grounding
, and
other safety
considerations
pertaining
to
the use of the
2236. Before
connecting the instrument to a power source , carefully read
the
following about line
voltages
, power
cords , and fuses .
Instruments are shipped with the required power cord as
ordered
by
the
customer .
Available power - cord
options
are
illustrated in Figure 2-1B , and part numbers are listed on the
" Accessories " page at the back of this manual . Contact
your Tektronix representative or local Tektronix Field Office
for additional power - cord information .
Plug
Configuration
Usage
Line
Voltage
Reference
Standards
LINE VOLTAGE
North
American
120V /
15A
120V
ANSI
C73.11
NEMA 5-15 - P
IEC
83
The
instrument is
capable
of
continuous
operation
using
input voltages that range from 90 V to 250 V nominal at
frequencies from 48 Hz to 440 Hz .
Universal
Euro
240V /
10-16A
240V
CEE ( 7
) ,
11,1V .
VII
IEC 83
POWER CORD
UK
240V /
13A
240V
BS 1363
IEC 83
Australian
240V /
10A
240V AS C112
A
detachable three - wire
power cord with a
three - contact
plug is provided with each instrument to permit connection
to both
the
power
source and
protective
ground . The
plug
protective
-
ground contact
connects
( through
the
protective
ground conductor ) to the accessible metal parts of the in
strument . For
electrical
-
shock
protection ,
insert this
plug
only into
a
power
outlet that has a
securely
grounded
pro
tective
-
ground contact . To
secure the
power cord to
the
instrument
, use
the power cord
clamp as
illustrated
in Figure
2-1A .
North
American
240V /
15A
240V
П
on
o
ANSI
C73.20
NEMA 6-15 - P
JEC 83
Switzerland
220V
/
6A
220V SEV
Abbreviations :
ANSI –
American
National
Standards
Institute
AS –
Standards
Association of
Australia
BS – British
Standards
Institution
CEE –
International
Commission
on
Rules for
the
Approval of
Electrical
Equipment
IEC
International
Electrotechnical
Commission
NEMA
-
National
Electrical
Manufacturer's
Association
SEV --
Schweizevischer
Elektrotechischer
Verein
( 2931-21 ) 4204-53
Fig . 2-1B . Optional Power Cords
LINE FUSE
П
П
The
instrument fuse holder
is located on
the rear
panel
( see Figure 2-2 ) and contains the line fuse . The following
procedure can be used to verify that the proper fuse is in
stalled or to install a replacement fuse .
1. Unplug the power cord from the power - input source ( if
applicable )
O
Fig .
2-1A .
Power
Cord
Clamp
2. Press in and slightly rotate the fuse - holder cap coun
terclockwise to release it .
REV JUL
1985
2-1
