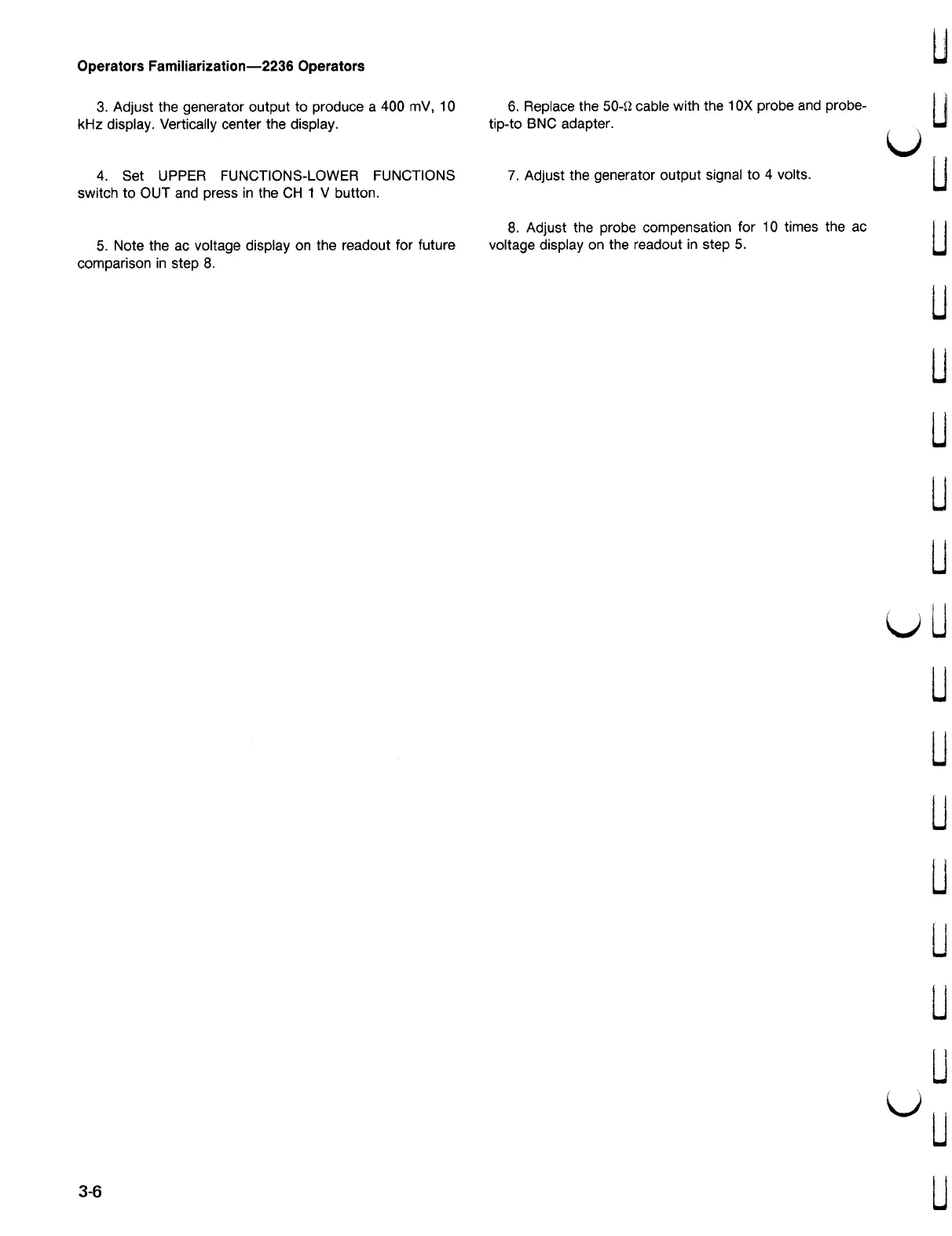

Operators Familiarization - 2236 Operators
3. Adjust the
generator
output to
produce a
400 mV , 10
kHz display . Vertically center the display .
6. Replace the 50-12 cable with the 10X probe and probe
tip - to BNC adapter .
4. Set UPPER FUNCTIONS - LOWER FUNCTIONS
switch to OUT and press in the CH 1 V button .
7. Adjust
the
generator
output
signal to 4
volts
.
8. Adjust
the
probe
compensation for
10 times
the ac
voltage
display
on the
readout
in
step 5 .
5. Note the ac
voltage display on the
readout for future
comparison in step 8 .
U
U
미
بال
u
L
บ
3-6
