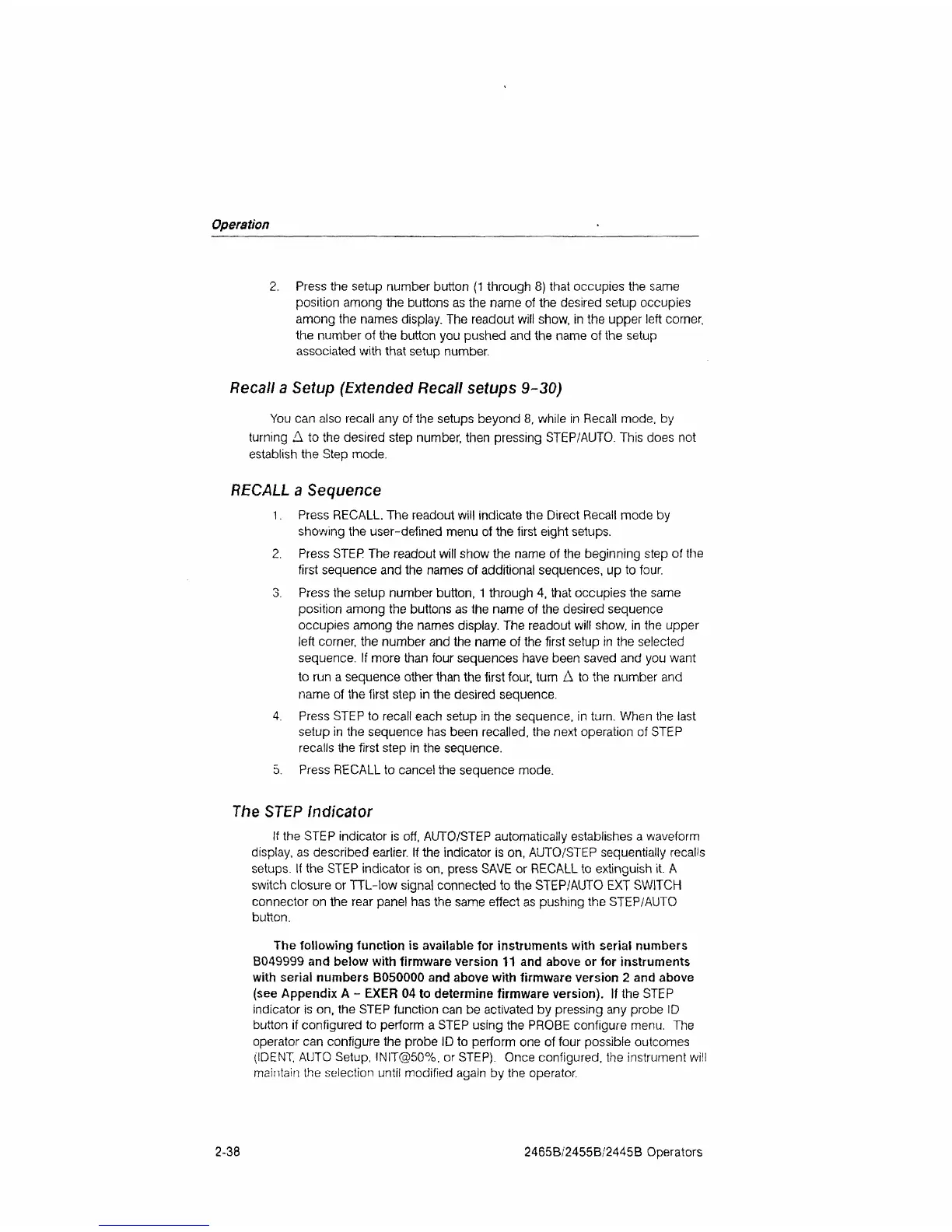

Operation
2. Press the setup number button (1 through 8) that occupies the same
position among the buttons as the name of the desired setup occupies
among the names display. The readout will show, in the upper left corner,
the number of the button you pushed and the name of the setup
associated with that setup number.
Recall
a
Setup (Extended Recall setups
9-30)
You can also recall any of the setups beyond 8, while in Recall mode, by
turning A to the desired step number, then pressing STEP/AUTO. This does not
establish the Step mode.
RECALL
a
Sequence
1.
Press RECALL. The readout will indicate the Direct Recall mode by
showing the user-defined menu of the first eight setups.
2.
Press STEP The readout will show the name of the beginning step of the
first sequence and the names of additional sequences, up to four.
3. Press the setup number button, 1 through 4, that occupies the same
position among the buttons as the name of the desired sequence
occupies among the names display. The readout will show, in the upper
left corner, the number and the name of the first setup in the selected
sequence. If more than four sequences have been saved and you want
to run a sequence other than the first four, turn A to the number and
name of the first step in the desired sequence.
4.
Press STEP to recall each setup in the sequence, in
turn.
When the last
setup in the sequence has been recalled, the next operation of STEP
recalls the first step in the sequence.
5. Press RECALL to cancel the sequence mode.
The STEP Indicator
If the STEP indicator is off, AUTO/STEP automatically establishes a waveform
display, as described earlier. If the indicator is on, AUTO/STEP sequentially recalls
setups. If the STEP indicator is on, press SAVE or RECALL to extinguish it. A
switch closure or TTL-low signal connected to the STEP/AUTO EXT SWITCH
connector on the rear panel has the same effect as pushing the STEP/AUTO
button.
The following function is available for instruments with serial numbers
B049999 and below with firmware version 11 and above or for instruments
with serial numbers B050000 and above with firmware version 2 and above
(see Appendix A - EXER 04 to determine firmware version). If the STEP
indicator is on, the STEP function can be activated by pressing any probe ID
button if configured to perform a STEP using the PROBE configure menu. The
operator can configure the probe ID to perform one of four possible outcomes
(IDENT, AUTO Setup, !NIT@50%. or STEP). Once configured, the instrument wi!!
maintain the selection until modified again by the operator.
2-38 2465B/2455B/2445B Operators
