Controls,
Connectors,
and
Indicators
GPIB STATUS Included only with the available IEEE-Standard-488
Indicators interface
(GPIB);
show key interactions with a GPIB
system.
LOCK lights when the instrument controls are
disabled by a local lockout message from the system
controller. SRQ lights when the instrument requests
a
service response from the system controller. REM lights
when the system controller assumes control
of
the
instrument. See
24X5B/2467B Option 10 Instrument
Interfacing Guide
for detailed information on using the
instrument in a GPIB system.
"^
Z_
REAOOUT INTENSITY SCALE ILLUM *.*'' POWER
#*$&
i V^-^y V^SWH Si--i/SC4U
^—^
V— i>
•
D
0 G
6860-02

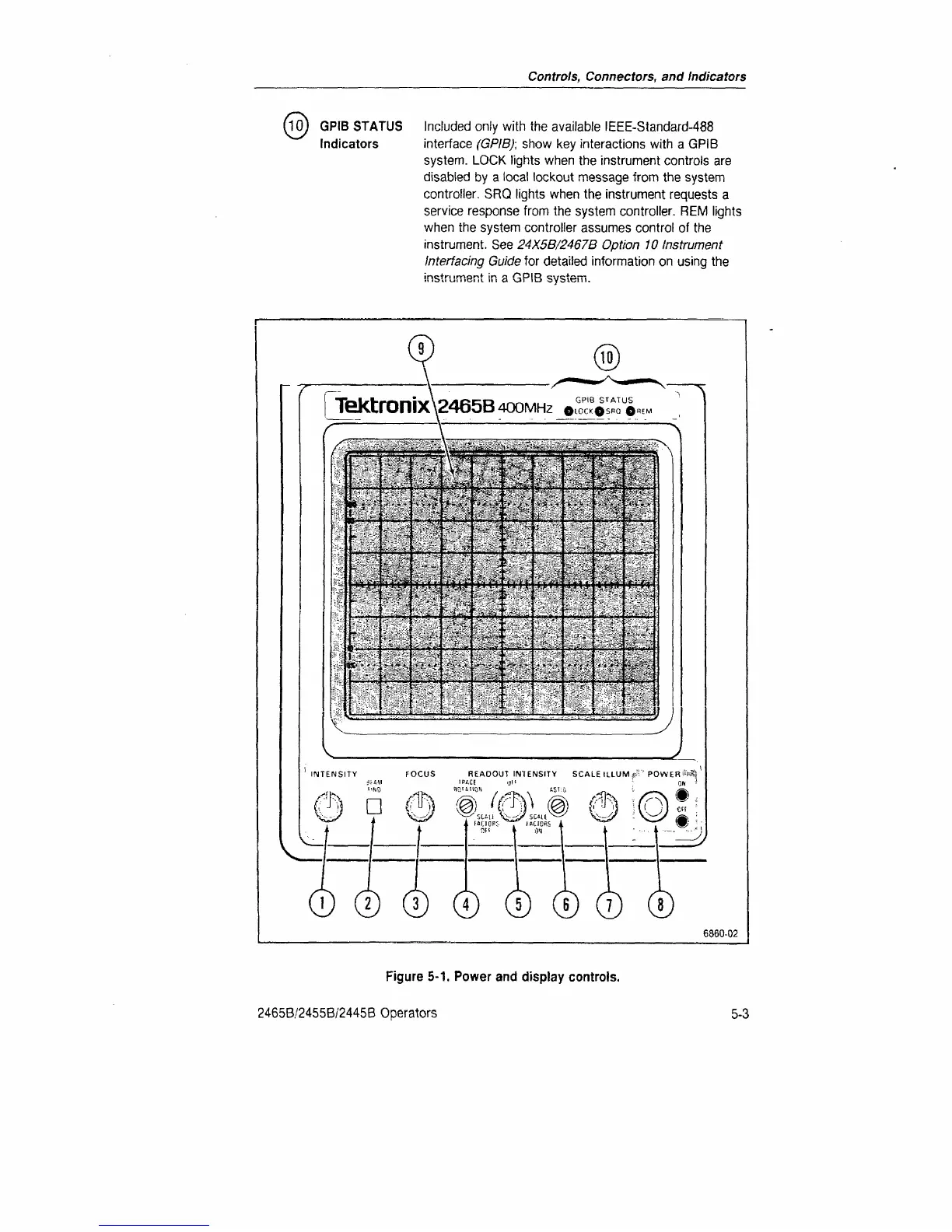

Figure
5-1.
Power and display controls.
2465B/2455B/2445B Operators
5-3
