Tektronix 2465B Operator's Manual

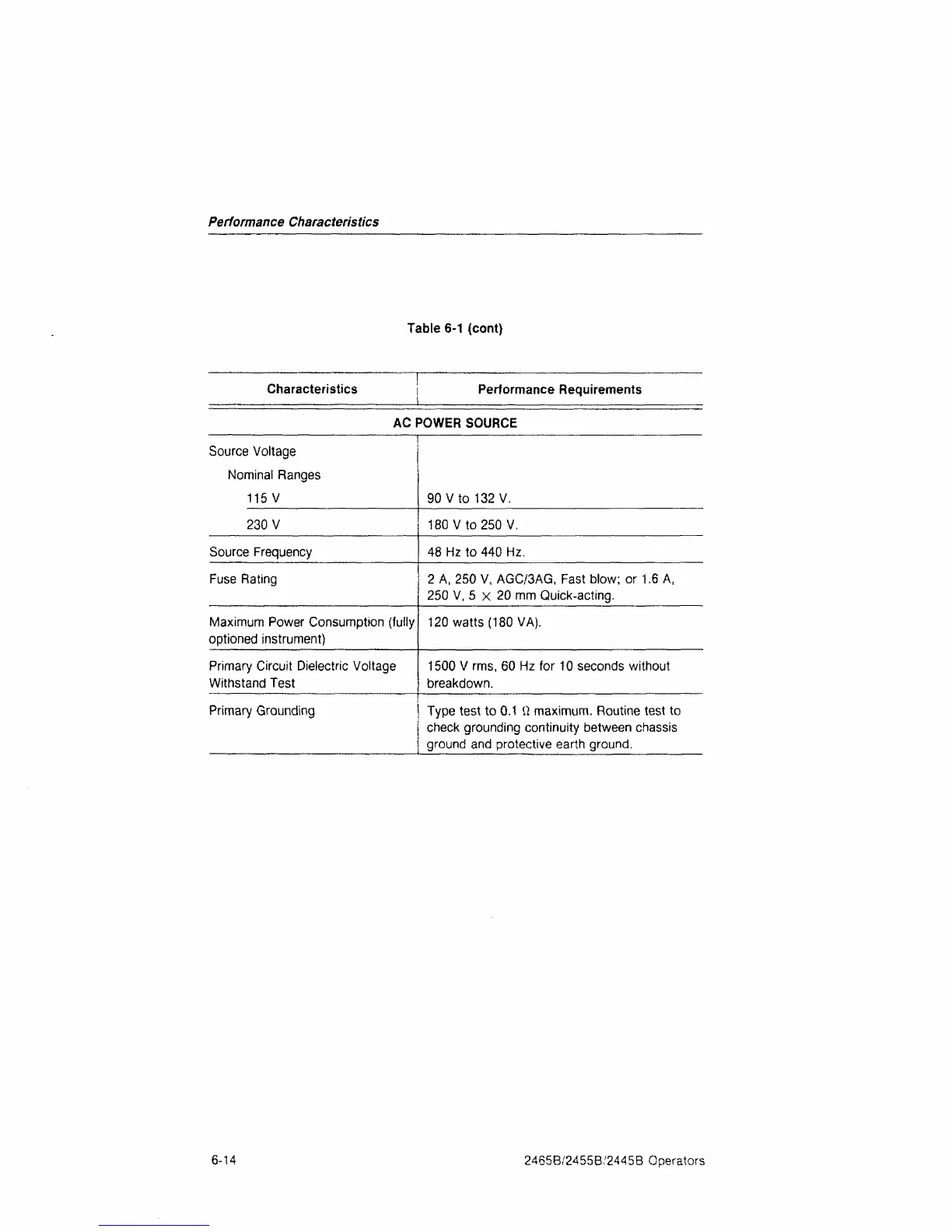

Performance Characteristics
Table 6-1 (cont)
Characteristics | Performance Requirements
AC POWER SOURCE
Source Voltage
Nominal Ranges
115 V
230 V
Source Frequency
Fuse Rating
Maximum Power Consumption (fully
optioned instrument)
Primary Circuit Dielectric Voltage
Withstand Test
90 Vto 132 V.
180 V to 250 V.
48 Hz to 440 Hz.
2 A, 250 V, AGC/3AG, Fast blow; or 1.6 A,
250 V, 5 x 20 mm Quick-acting.
120 watts (180 VA).
1500 V rms, 60 Hz for 10 seconds without
breakdown.
Primary Grounding J Type test to 0.1 ii maximum. Routine test to
j check grounding continuity between chassis
j ground and protective earth ground.
6-14
2465B/2455B/2445B Operators

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
