Calibration Procedure—
465B
Service
Performance Check

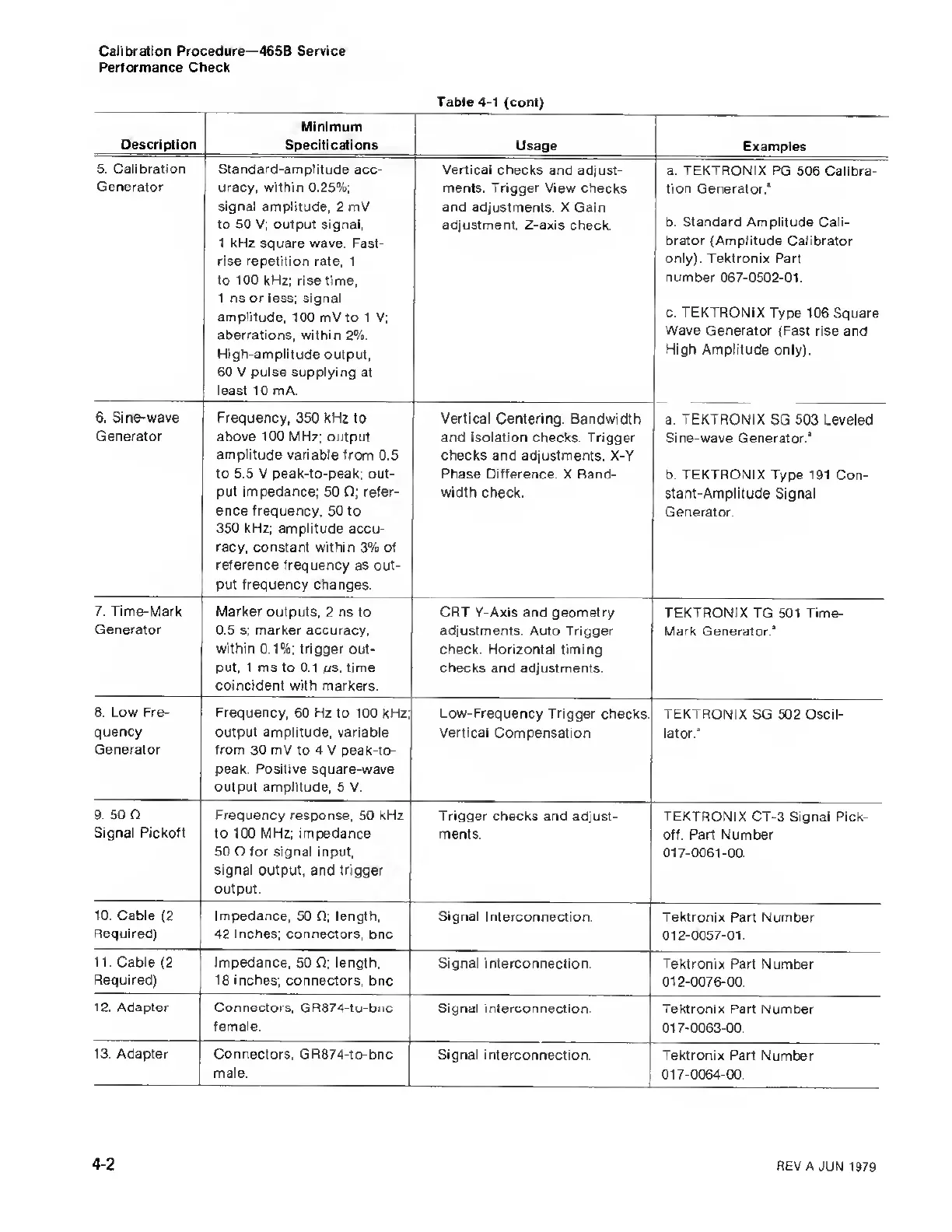

Table 4-1
(cont)
Description
Minimum
Specifications
Usage
Examples
5. Calibration
Generator
Standard-amplitude
acc-
uracy, within
0.25%;
signal amplitude,
2
mV
to 50 V; output signal,
1 kHz square wave. Fast-
rise repetition rate,
1
to 100 kHz; rise time,
1 ns or less; signal
amplitude, 100 mV
to
1
V;
aberrations, within
2%.
High-amplitude
output,
60
V
pulse
supplying at
least
10
mA.
Vertical checks and adjust-
ments. Trigger View
checks
and adjustments. X Gain
adjustment.
Z-axis check.
a. TEKTRONIX PG 506 Calibra-
tion Generator.
11
b.
Standard Amplitude
Cali-
brator
(Amplitude Calibrator
only).
Tektronix Part
number
067-0502-01.
c.
TEKTRONIX
Type 106
Square
Wave
Generator (Fast
rise and
High Amplitude
only).
6. Sine-wave
Generator
Frequency,
350
kHz
to
above 100 MHz; output
amplitude variable from
0.5
to
5.5
V peak-to-peak; out-
put impedance; 50 C; refer-
ence frequency.
50 to
350 kHz; amplitude
accu-
racy, constant within
3% of
reference frequency
as out-
put frequency changes.
Vertical Centering. Bandwidth
and Isolation
checks. Trigger
checks and adjustments. X-Y
Phase
Difference X Band-
width check.
a.
TEKTRONIX
SG 503 Leveled
Sine-wave
Generator.
3
b
Tektronix Type
191 Con-
stant-Amplitude Signal
Generator
7. Time-Mark
Generator
Marker
outputs, 2 ns to
0.5
s;
marker
accuracy,
within
0.1%;
trigger
out-
put,
1 ms to
0.1 /us, time
coincident with
markers.
CRT Y-Axis
and geometry
adjustments.
Auto Trigger
check. Horizontal timing
checks and adjustments.
TEKTRONIX TG
501 Time-
Mark Generator.
3
8. Low
Fre-
quency
Generator
Frequency, 60 Hz to 100
kHz;
output amplitude, variable
from 30 mV to 4 V peak-to-
peak. Positive square-wave
output amplitude,
5 V.
Low-Frequency Trigger
checks.
Vertical
Compensation
TEKTRONIX SG 502 Oscil-
lator.'
9. 50 n
Signal Pickoff
Frequency response,
50 kHz
to 100 MHz; impedance
50 O for signal input,
signal
output, and trigger
output.
Trigger checks and
adjust-
ments.
TEKTRONIX CT-3 Signal Pick-
Off. Part Number
017-0061-00.
10. Cable
(2
Required)
Impedance, 50
fi;
length,
42 Inches; connectors,
bnc
Signal Interconnection.
Tektronix Part Number
012-0057-01.
11. Cable
(2
Required)
Impedance,
50 0; length.
18 inches; connectors,
bnc
Signal interconnection.
Tektronix Part Number
012-0076-00.
12. Adapter Connectors,
GR874-to-bnc
female.
Signal
interconnection. Tektronix Part
Number
017-0063-00.
13.
Adapter Connectors, GR874-to-bnc
male.
Signal interconnection.
L
Tektronix Part Number
017-0064-00.
4-2
REV
A JUN 1979
