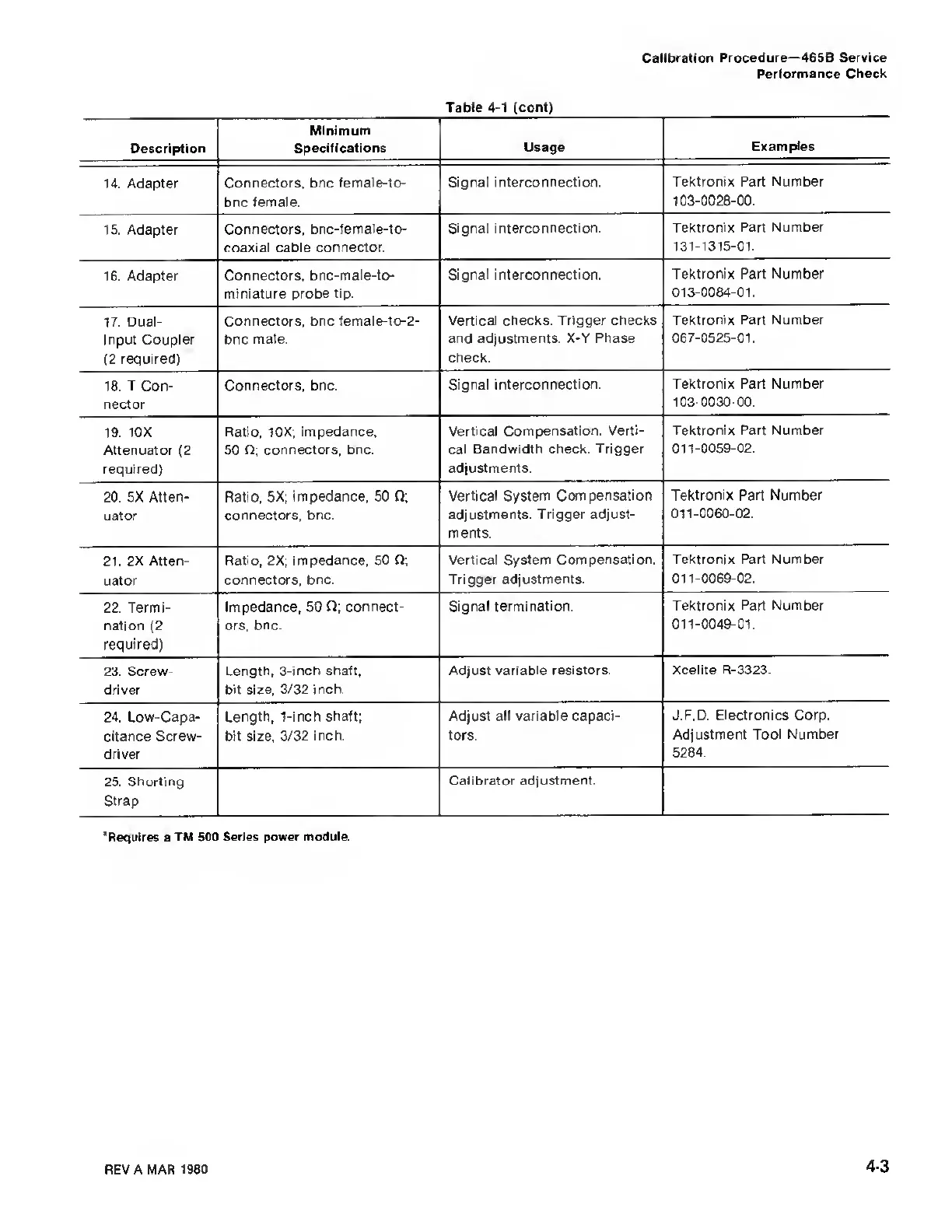

Tektronix 465B

Calibration Procedure—
465B Service
Performance Check
Table
4-1
(cont)
Description
Minimum
Specifications
Usage
Examples
14. Adapter
Connectors, bnc female-to-
bnc
female.
Signal interconnection.
Tektronix Part Number
103-0028-00.
15. Adapter Connectors,
bnc-female-to-
coaxial cable connector.
Signal interconnection.
Tektronix Part
Number
131-1315-01.
16. Adapter
Connectors, bnc-male-to-
miniature probe tip.
Signal interconnection.
Tektronix Part
Number
013-0084-01.
17. Dual-
Input
Coupler
(2
required)
Connectors,
bnc female-to-2-
bnc
male.
Vertical
checks.
Trigger checks
and
adjustments. X-Y Phase
check.
Tektronix Part
Number
067-0525-01.
18. T Con-
nector
Connectors,
bnc.
Signal interconnection.
Tektronix Part Number
103 0030
00.
19.
10X
Attenuator
(2
required)
Ratio, 10X; impedance,
50 D; connectors,
bnc.
Vertical
Compensation. Verti-
cal
Bandwidth
check. Trigger
adjustments.
Tektronix
Part
Number
011-0059-02.
20. 5X Atten-
uator
Ratio, 5X;
impedance, 50 fi;
connectors,
bnc.
Vertical
System Compensation
adjustments.
Trigger adjust-
ments.
Tektronix Part
Number
011-0060-02.
21. 2X
Atten-
uator
Ratio, 2X;
impedance,
50 Q;
connectors, bnc.
Vertical System
Compensation.
Trigger
adjustments.
Tektronix
Part Number
011-0069-02.
22. Termi-
nation
(2
required)
Impedance,
50
fi; connect-
ors, bnc.
Signal termination.
Tektronix Part Number
011-0049-01.
23.
Screw-
driver
Length,
3-inch shaft,
bit size, 3/32
inch.
Adjust
variable
resistors.
Xcelite R-3323.
24. Low-Capa-
citance
Screw-
driver
Length, 1-inch shaft;
bit size, 3/32 inch.
Adjust
all variable capaci-
tors.
J.F.D. Electronics Corp.
Adjustment Tool Number
5284.
25. Shorting
Strap
Calibrator adjustment.
‘Requires a TM 500
Series power module.
REV
A MAR 1980
4-3
