Tektronix AWG7000B Series Quick Start Manual

Waveform Displa
y and Edit

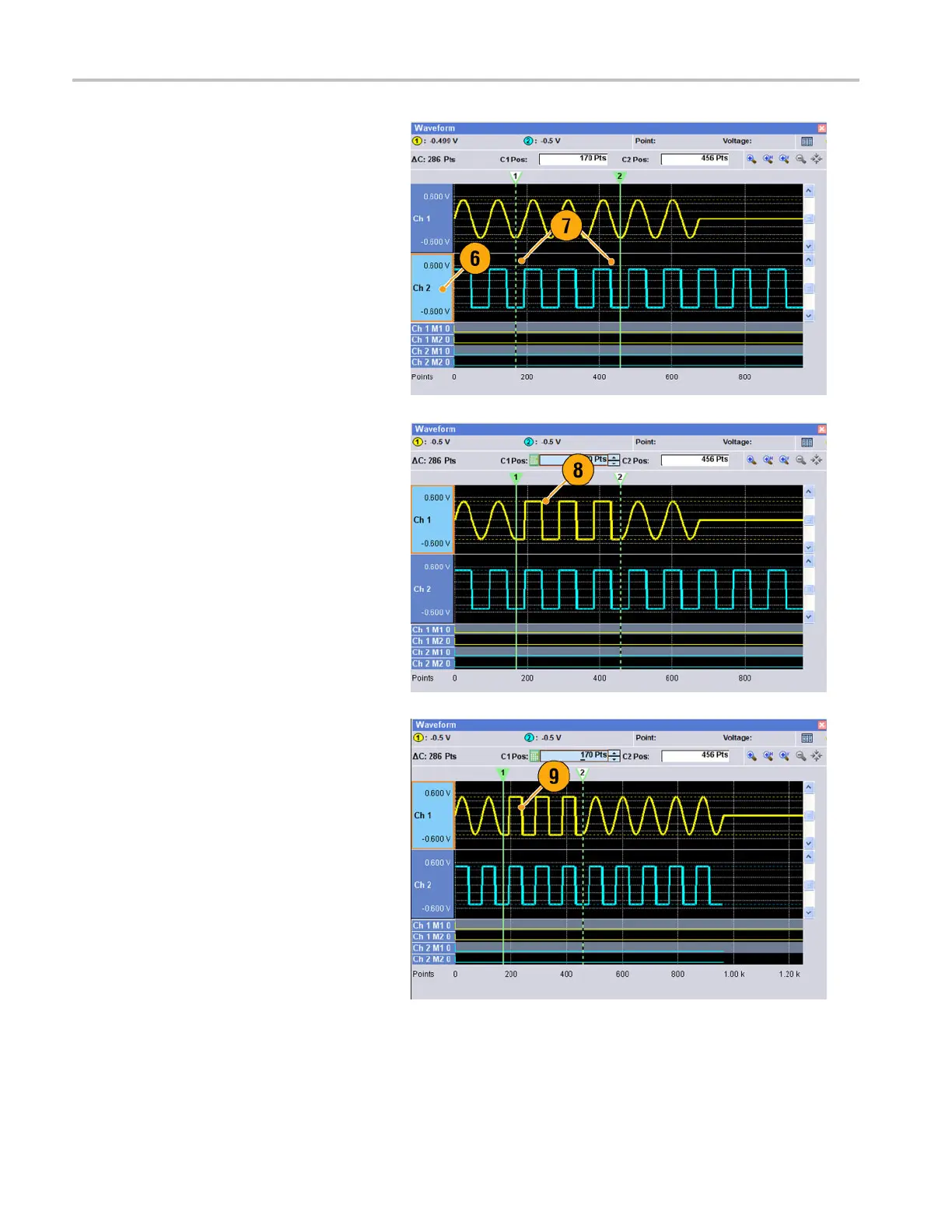

6. Select Ch 2.
7. Specify the edit target using the cursors.
From the Edit menu, select Copy.
8. This is an e
xample of Paste-Replace.
The specified range of Ch 2 waveform is
pasted and replaces the Ch 1 waveform.
TheCh1wa
veform length is not
changed.
9. This is an example of Paste-Insert.
The specified range of Ch 2 waveform
is inserted on the Ch 1 waveform. The
Ch 1 waveform length is c hanged.
60 AWG5000 and AWG7000 Series Quick Start User Manual
