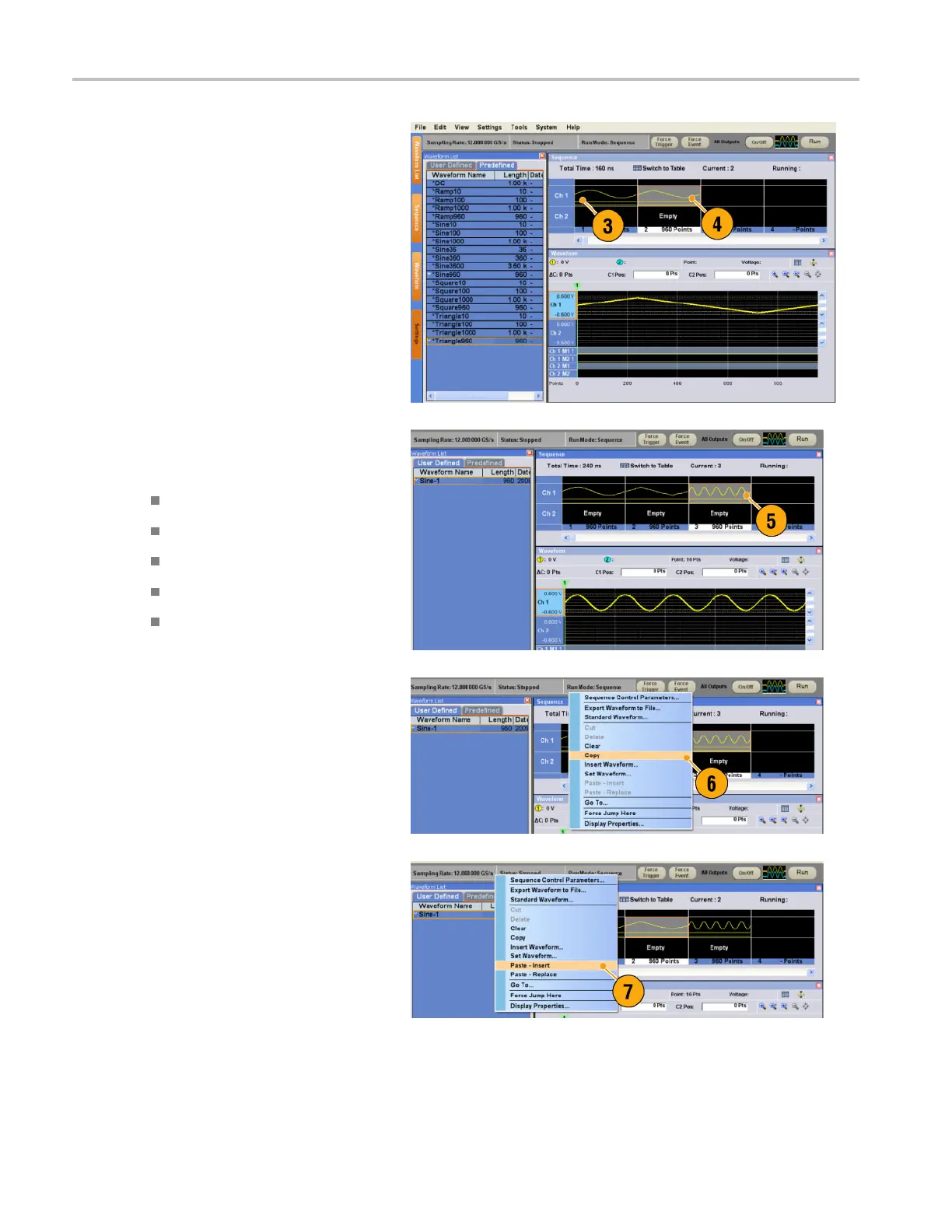

3. Select *Sine960 from the Predefined
page of the Waveform List window,
and drag and dr
op it to the first cell of
Ch 1 sequence.
4. Similarly, select *Triangle960 from
the Waveform List window, and set
the waveform
to the second cell of
Ch 1 sequence.
5. Create a sine waveform with the following
attributes and set the waveform to the
third cell of Ch 1 sequence.
Waveform Length: 960 points
Cycles: 5
Amplitude: 1.0 Vp-p
Offset: 0.0 V
Waveform Name: Sine-1
6. Select third cell of s equence, and select
Copy fr
om the popup menu.
7. Sele
ct second cell of sequence, and
select Paste-Insert from the popup
menu.
82 AWG5000 and AWG7000 Series Quick Start User Manual
