Acquiring Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3-49
Next acquired
waveform record
Next acquired
waveform record
Acquired waveform records
Display Updated display Updated display
Fast acquisitions display Fast acquisitions display Fast acquisitions display
Dead time Dead time Dead time
Normal DSO mode
Fast Acquisition mode
1st acquired
waveform record
Waveform
memory
bit maps
Waveform
memory
Waveform
memory
Waveform
memory
Waveform
memory
bit maps
Waveform
memory
bit maps
Intensity controls Intensity controls Intensity controls

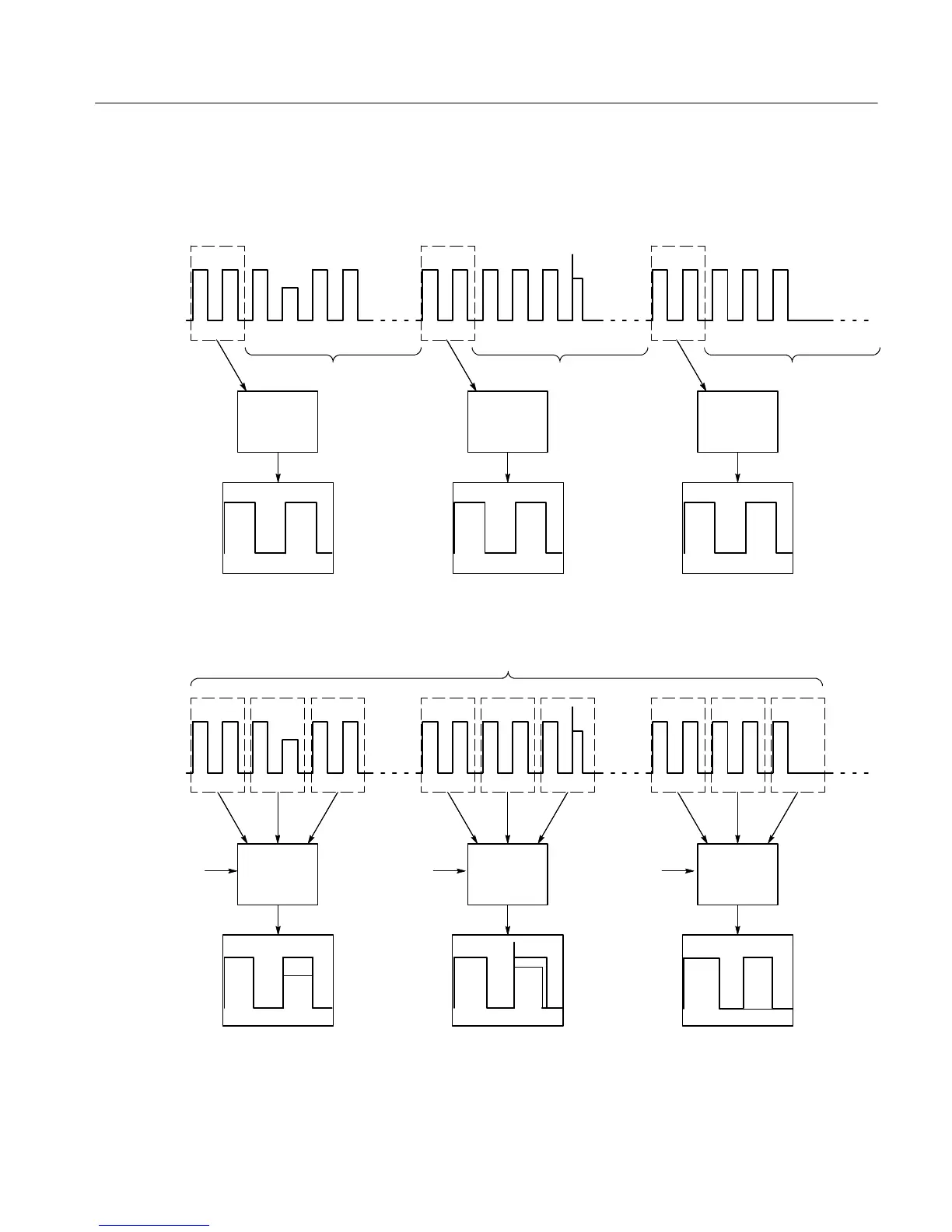

Figure 3- 13: Normal DSO Acquisition and Display mode versus Fast Acquisition mode
