Creating and Using Math Waveforms
3- 230
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Use the procedure that follows to select a predefined spectral math waveform.
Remember, a channel source should be acquiring or have acquired data. This
source does not have to be displayed to be used.

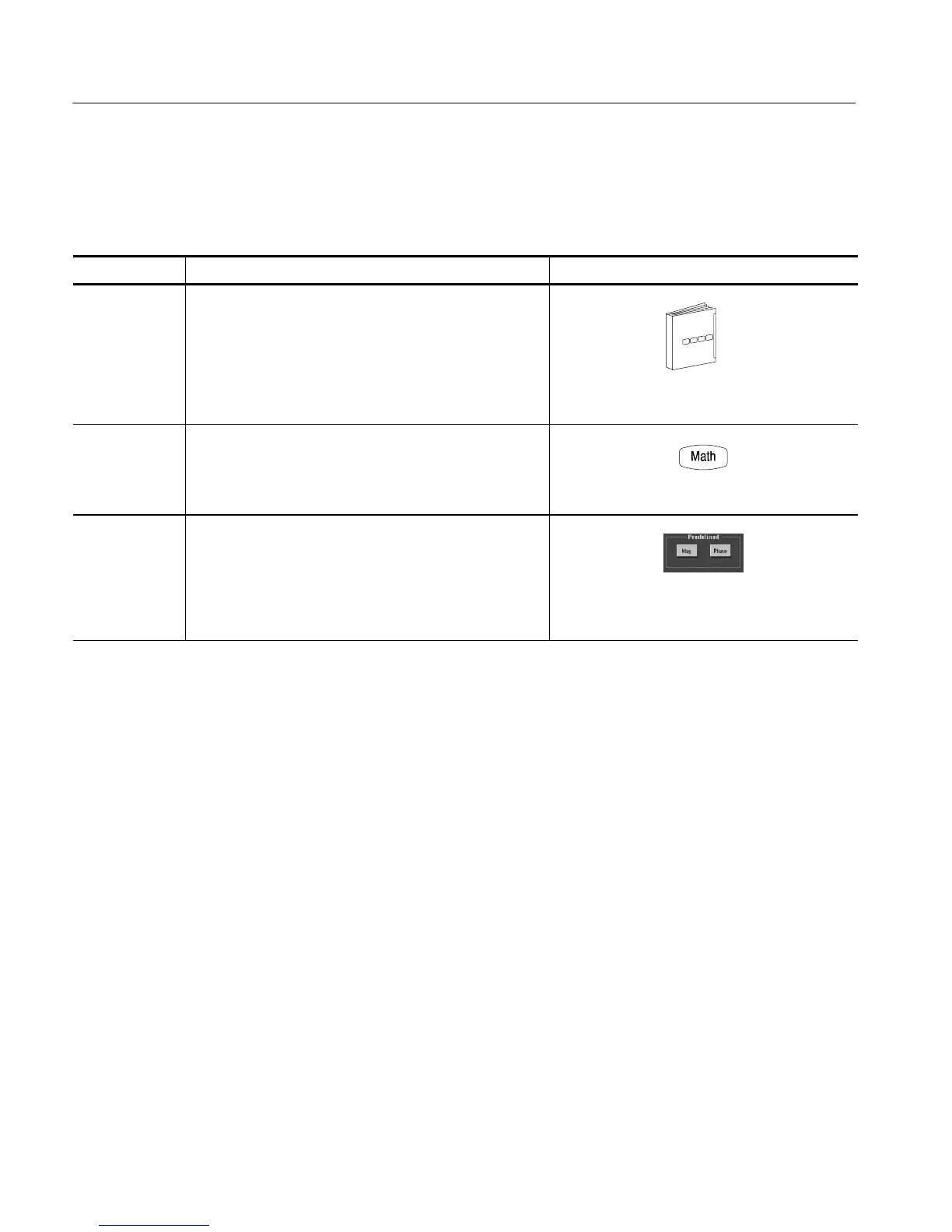

Overview To select a p redefined spectral math waveform Related control elements and resources
Prerequisites 1. All channel and reference Waveforms and automatic
measurement scalars that you will use in your math
waveform must be available (channels and references
contain data, measurement scalars are defined, and so
on).
See page page 3--34 for acquisition setup and page 3--71
for trigger setup.
Display the
math control
window
2. From the toolbar, touch the Math button to display the
Define Math control window.
Select a
predefined
spectral
analysis math
waveform
3. Touch Mag or Phase to select a predefined magnitude
or phase spectral analysis waveform. Selecti ng a
predefined spectral waveform turns on display of the
waveform.
To Select a Predefined
Spectral Math Waveform
To Next Page
