Data Input/Output
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 277
Printing Waveforms
You can print the display screen, including any waveforms displayed. Before you
can print, you must install and set up your printer. Consult the instructions that
come with your printer. Also for printer setup instructions, you can display
Windows help and access its section on printers.
To print a waveform from the front panel, push the front-panel PRINT button.
The display screen will print on the default printer. For additional print options,
see the topics that follow.
To print a waveform, from the application menu bar, select the File menu, and
then select Print. The instrument displays the standard MS Windows 2000 Print
window shown in Figure 3--63. Access the Windows help system for more
information.

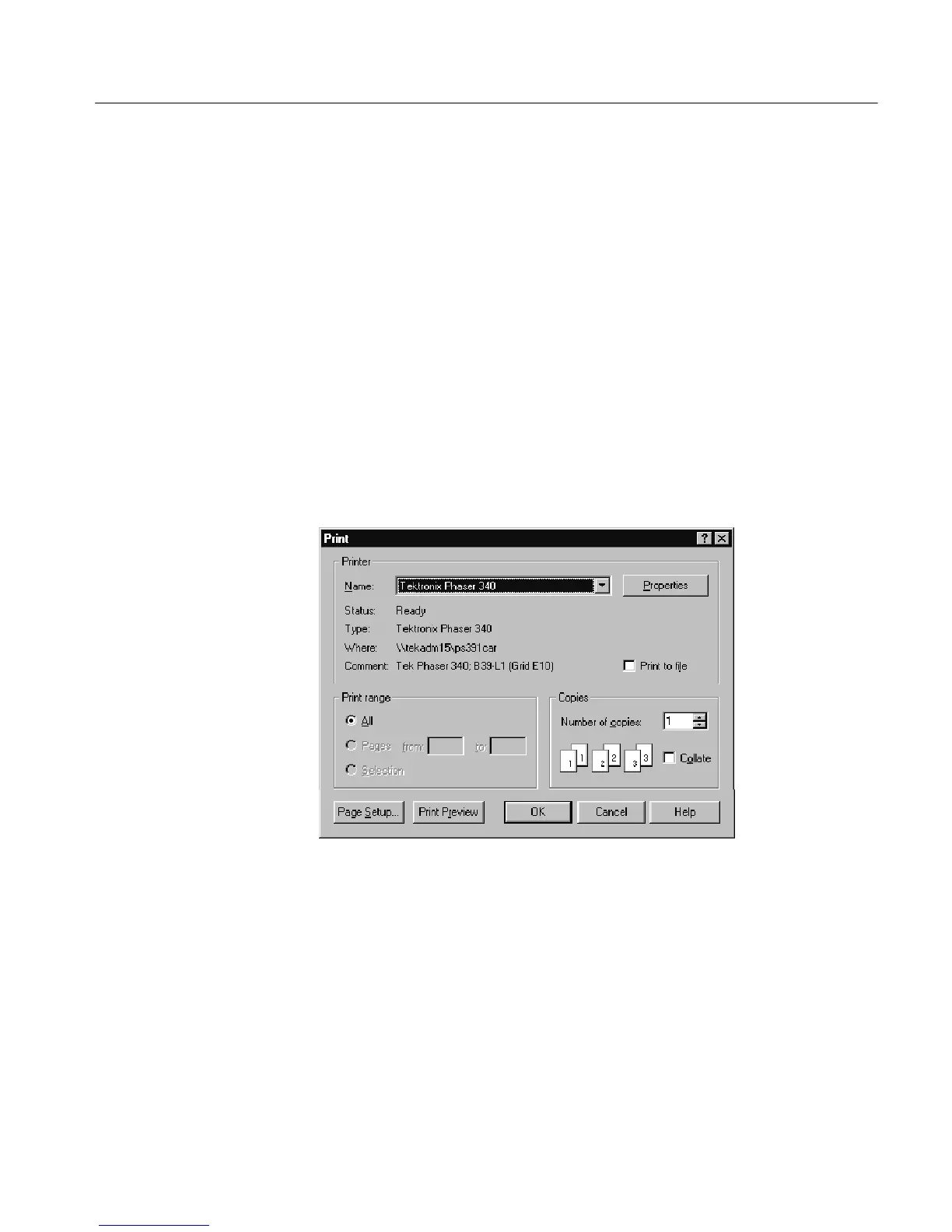

Figure 3- 63: Print window
To Print from Front Panel
To Print from Menu Bar
