Tektronix CSA7404 - Figure 3- -57: Time and Frequency Graphs for the Kaiser-Bessel Window 3

Creating and Using Math Waveforms
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
3- 223
1
0
Amplitude
Time
--67 dB side lobe
0
-- 8 0
dB
Frequency bins
-- 4 0

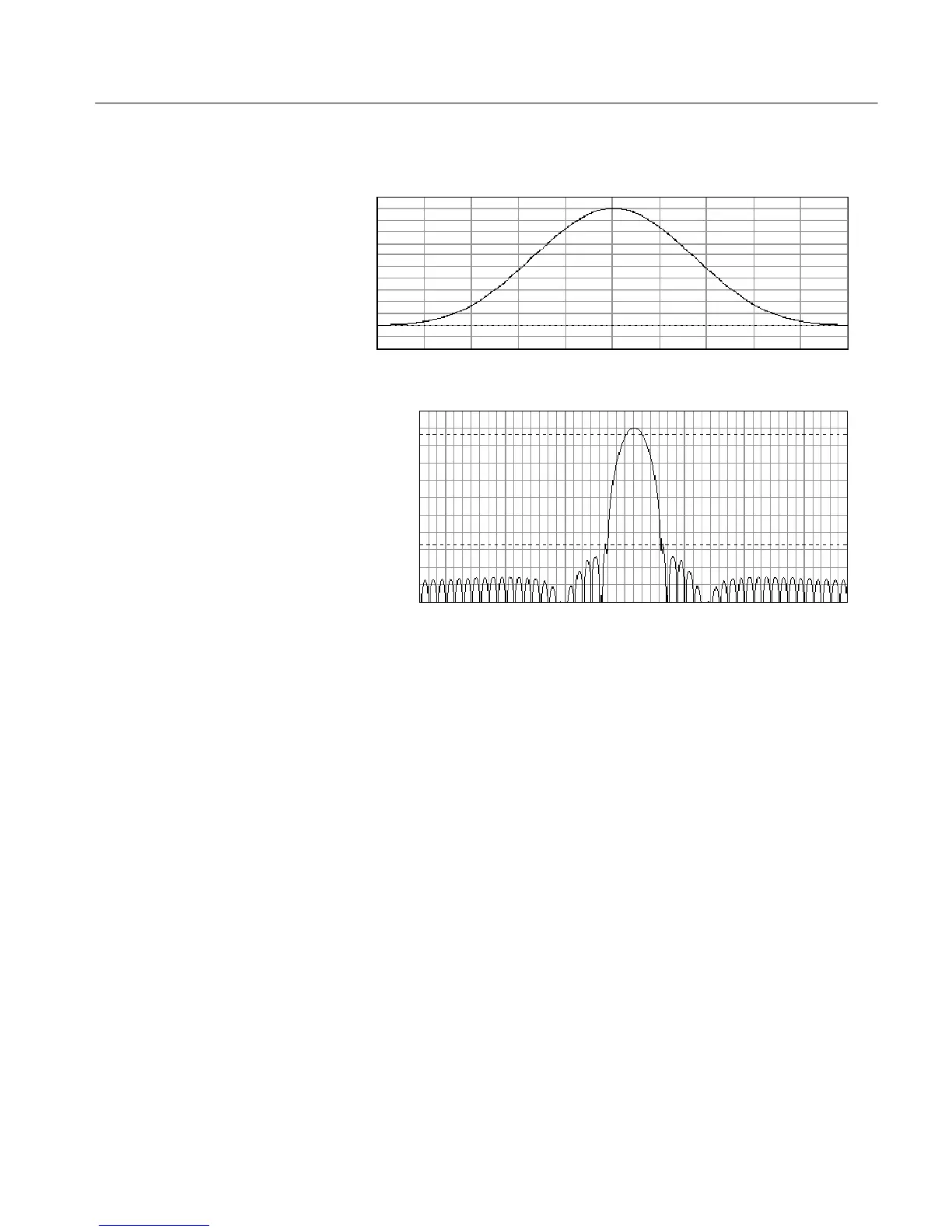

Figure 3- 57: Time and frequency graphs for the Kaiser-Bessel window
