Measuring Waveforms
3- 154
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Overview Related control elements and resourcesTo take automatic measurements (Cont.)
Take
automatic
measurements

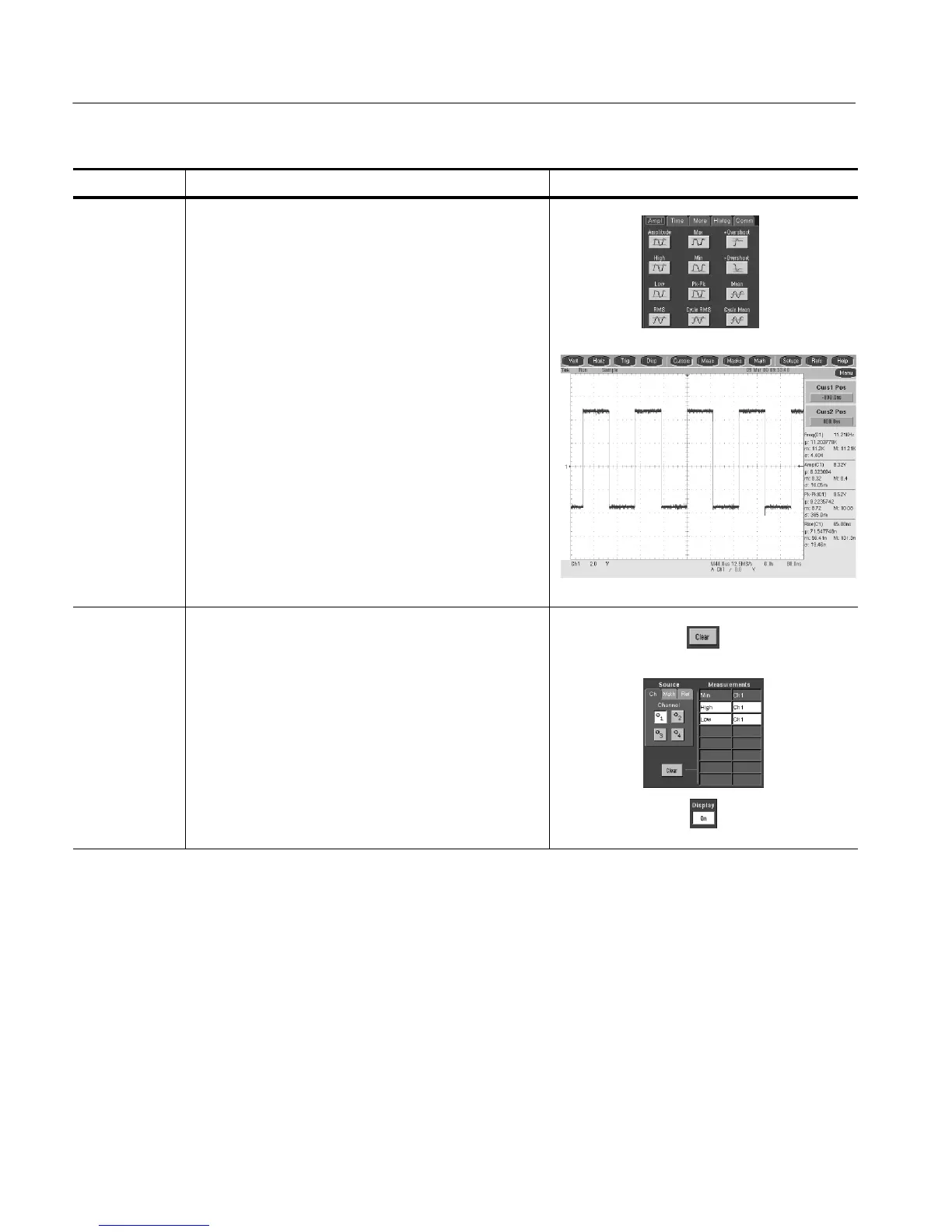

4. From the Measurement setup control window, select the
Ampl, Time, More, Histog, or Comm (optional on
TDS7000 Series & TDS6000 Series) tab that contains
the measurement that you want to take.
5. Touch the button for the measurement that you want to
take. For a list of the measurements this instrument can
take, see Appendix B: Automatic Measurements
Supported.
The readout for the measurement is automatically
displayed, and the measurement i s added to the
measurement list in the control window.
Measurements are displayed in the right control window
area as shown here. If the window is occupied or there
are too many measurements to fit in that area,
measurements are displayed in the lower graticule area.
In Roll mode (CSA7000 Series & TDS7000 Series)
measurements are not available until after you stop
acquisitions.
Remove
measurements
6. To remove the measurement, touch Clear, and the last
measurement selected is removed.
7. To remove any measurement in the measurement list ,
touch the measurement prior to touching the Clear
button. More than one measurement can be selected.
Touch the first measurement that you want to remove,
drag across all of the measurements that you want to
select, and then touch the Clear button.
8. You can also toggle the display of measurements on
and off by touchi ng the Display button.
