Measuring Waveforms
3- 166
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

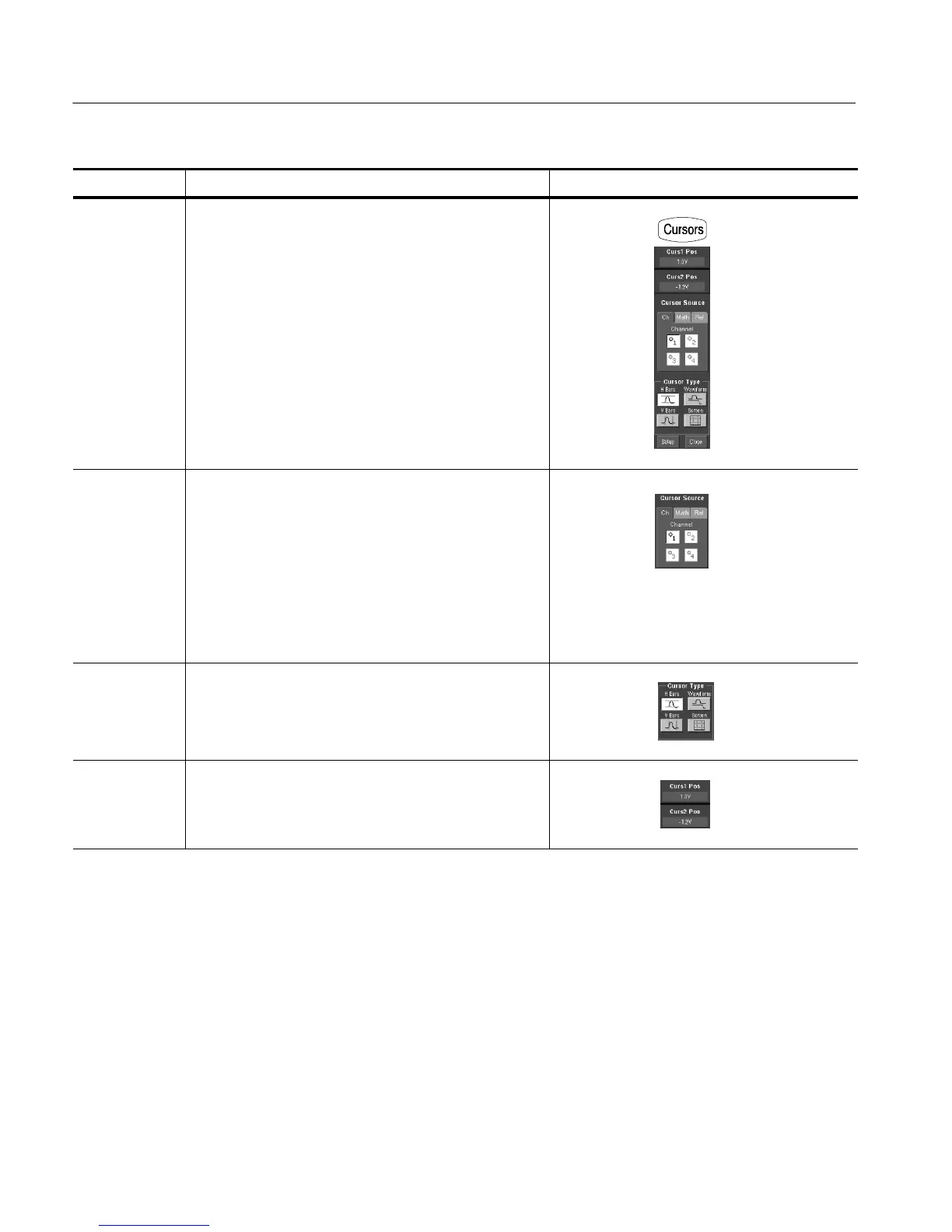

Overview Related control elements and resourcesTo set the cursor sources (Cont.)
Display the
cursor
controls
window
2. Push the CURSORS front-panel button, or from the
toolbar, touch Cursors.
Select the
cursor
sources
3. From the Cursor Source menu, select the channel,
math, or reference tab and then the waveform to take
cursor measurements on (see right). If you are using
Waveform or Screen cursors, your must select a source
for both cursors by first touching a cursor button before
selecting a source.
Note. If a waveform is not available, its source button is
grayed out.
Select a
cursor type
4. From the Cursor Type menu, select the H Bars, V Bars,
Waveform, or Screen cursor type. See Table 3--9 on
page 3--161 for an explanation of the cursor types.
Change cursor
position
5. To change the position of a cursor, use the multipurpose
knobs or the keypad to move a cursor.
