Creating and Using Math Waveforms
3- 198
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

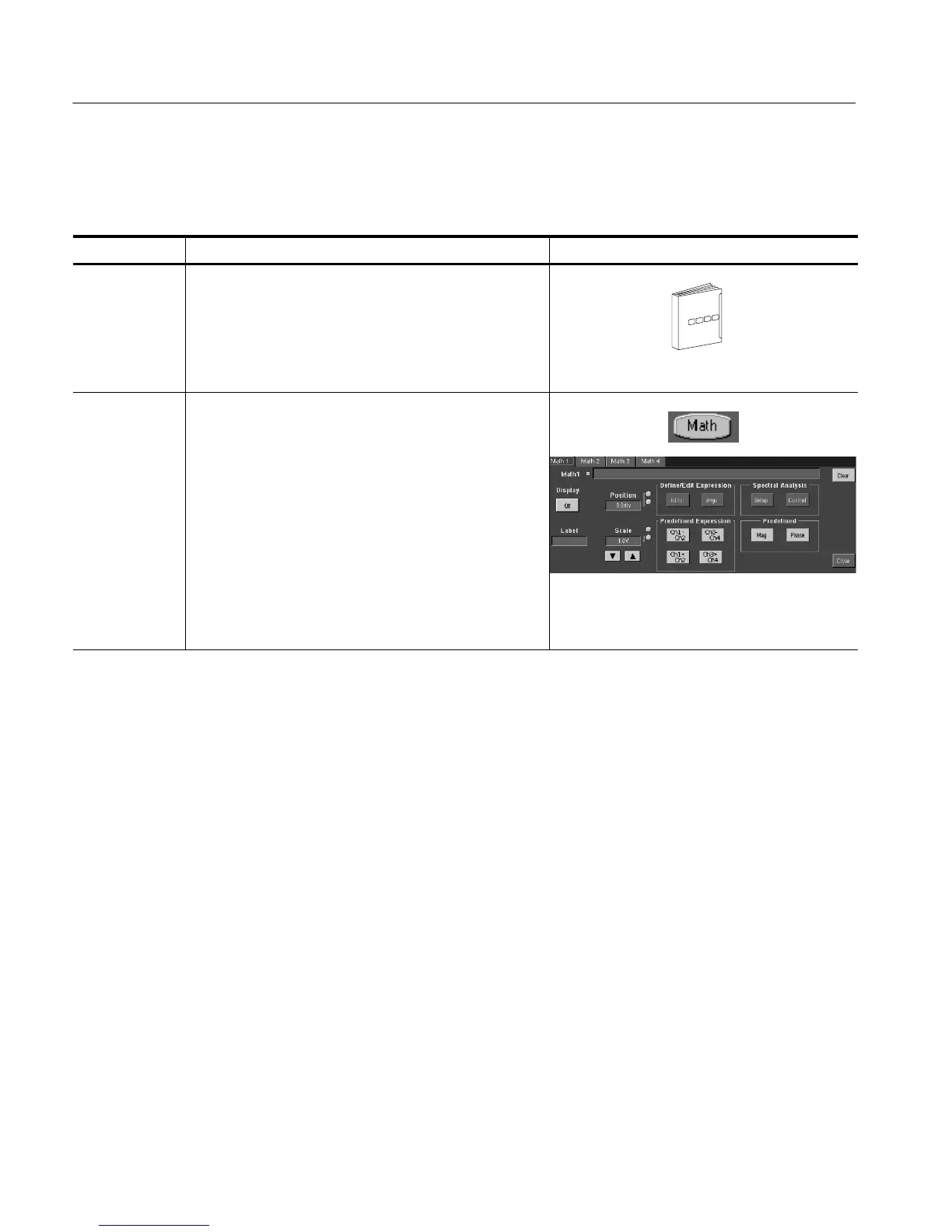

The procedure that follows demonstrates some common operations that you can
perform on math waveforms:
Overview To use math waveforms Related control elements and resources
Prerequisites
1. The Math waveform must be defined and displayed. See
the reference listed at right.
See To Define a Math Waveform on page 3--194
Select and
display
2. Touch the Math button to display the Math control
window.
3. Touch any Math(x) tab to make that math waveform the
selected waveform.
H If the waveform that you select is not defined, use
the To Define a Math Waveform procedure starting
on page 3--194 to define the math waveform.
H If the waveform is not displayed, touch Display to
toggle it on.
To Use Math Waveforms
To Next Page
