Tolerance setup
Set up mask testing source-tolerance
From the Mask menu, select Source.

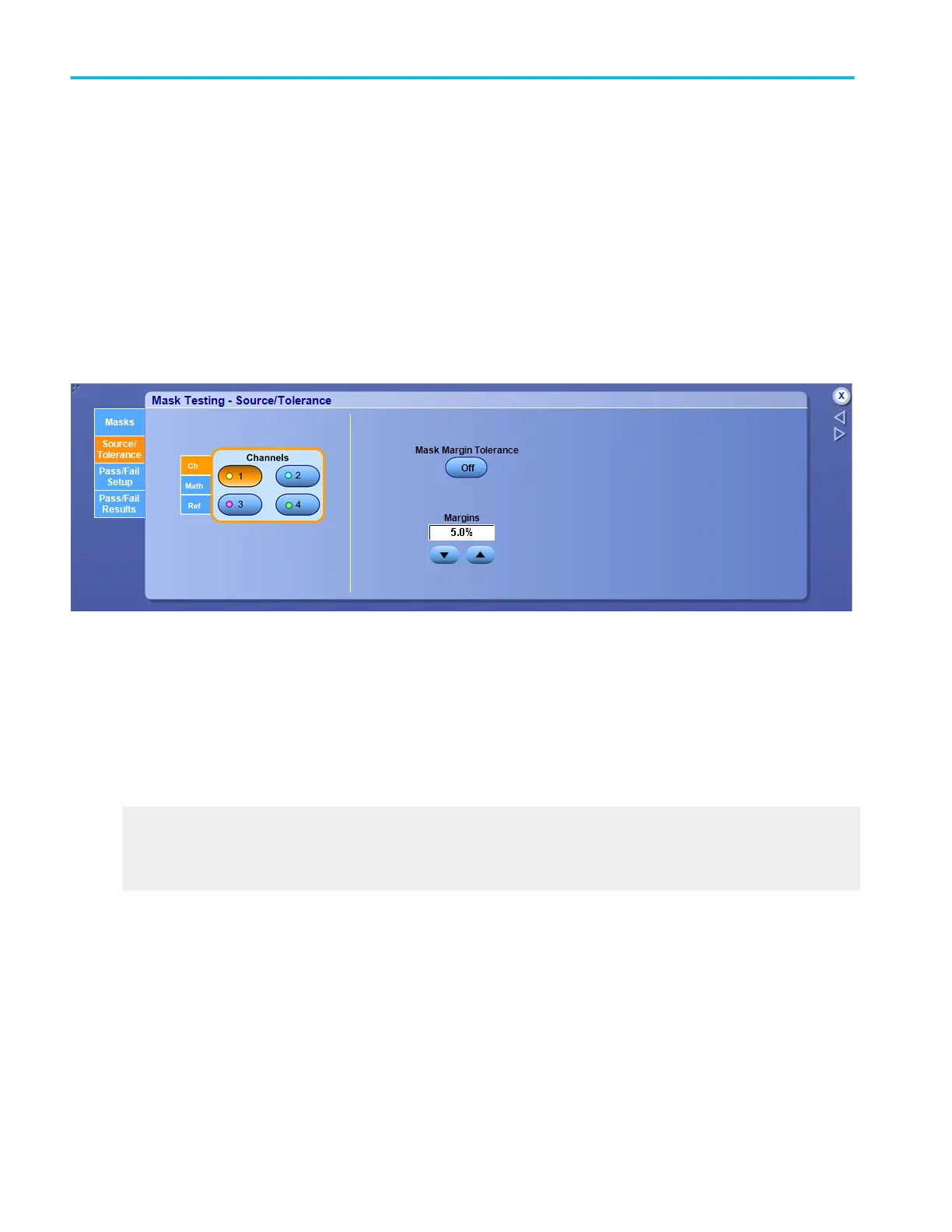

Overview. Use this control window to select the source of the signal you want to test.
For information on the controls, click the buttons.
■
Channels
■
Margins Tolerance
To use.
1. Click the Ch, Math, or Ref tab to select the source for mask testing.
2. Click the number (1–4) of the channel, math expression, or reference you want to use.
Behavior. When you click the Ch tab and select a channel number, it is used as the source for mask testing. You can select only
one source at a time for mask testing.
What do you want to do next?
Learn more about mask setups.
Learn more about mask test setups.
Go to the Mask Setup control window.
Set up mask margins
From the Mask menu, select Tolerance Setup.
