Set up a delay measurement
From the Measure menu highlight Time; then select Delay from the submenu, or open the Time tab in the Measurement Setup
control window and click the Delay button under Measurements.

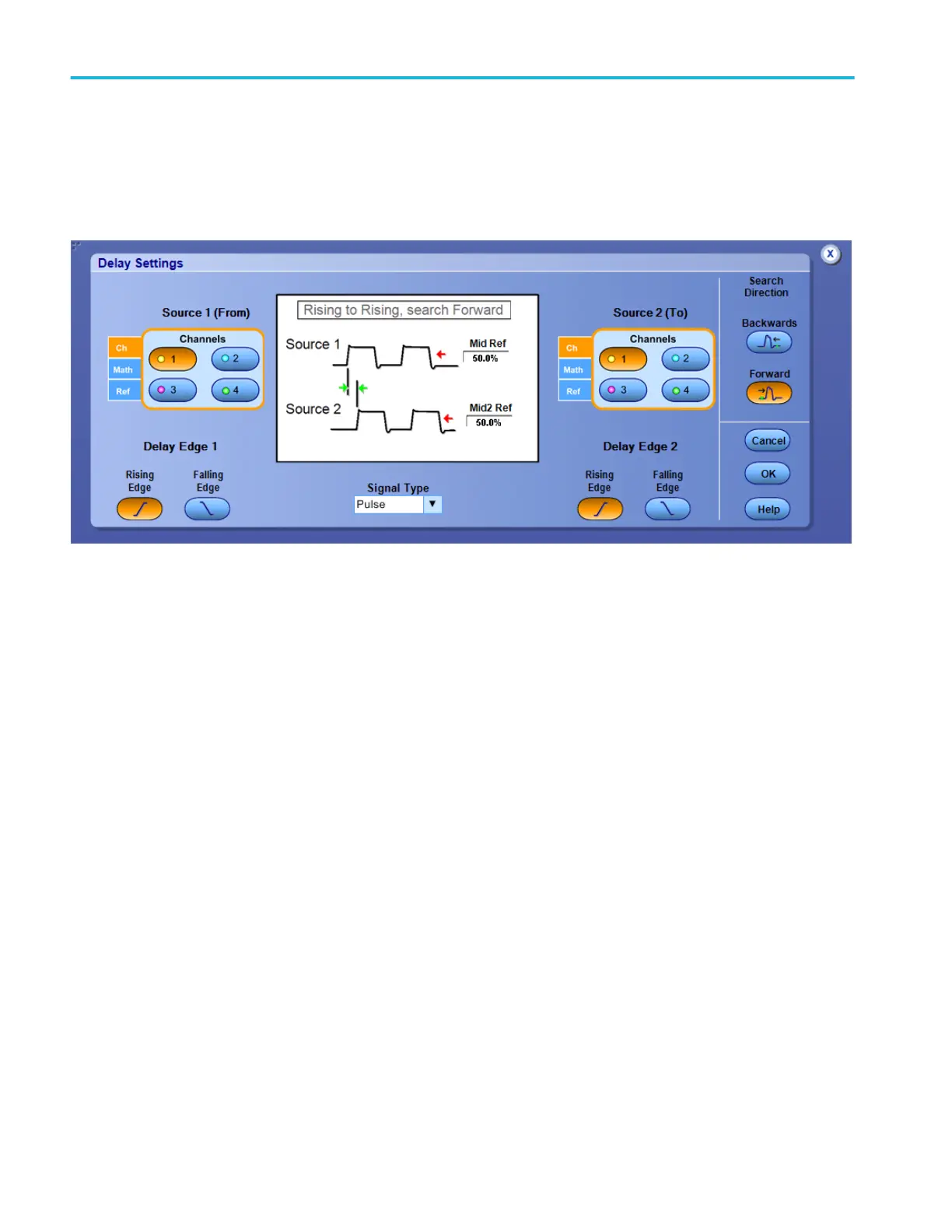

Overview. Use the Delay Measurement control window to set up the instrument to measure the delay between two waveforms.
To use.
1. Select the source waveforms from the Channels Selector.
2. Use the other controls in the control window to select the Delay Edges, Mid Reference point, Mid2 Reference point, and to
specify the Search Direction.
3. Click OK to add the measurement to the measurement list, or click Cancel to cancel the measurement and return to the
Measurement control window.
