Trigger after events
Trigger on nth event (Horizontal delay on). From the Trig menu, select A - B Trigger Sequence.

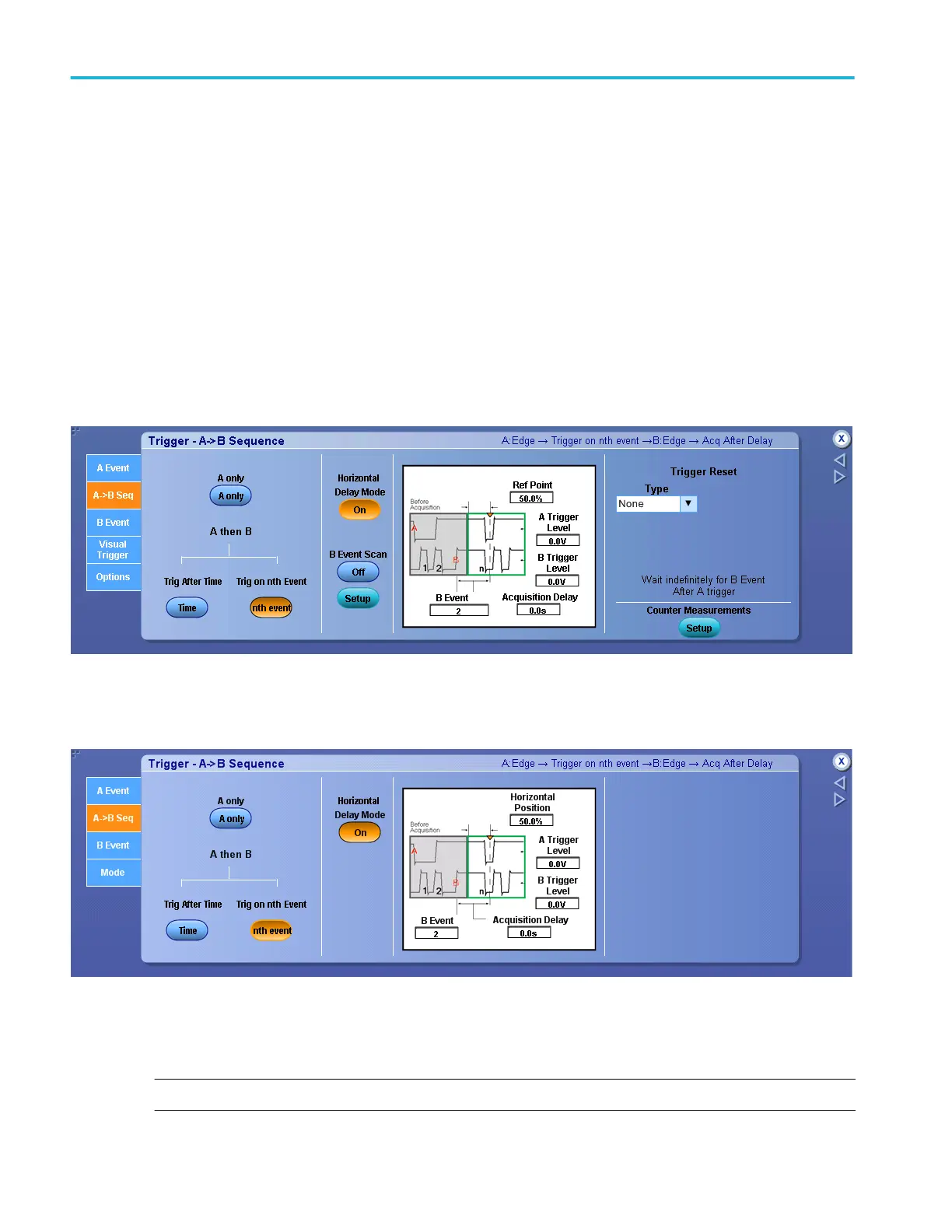

Overview. Use the controls in this window to define the parameters for the A ->B Sequence trigger with Horizontal Delay on.
For information on the controls, click the buttons.
■
Trigger Level
■
Trigger Events
■
Horizontal Delay
■
Reference Point
■
Trigger Reset
■
Counter Measurements
The following screen appears on MSO/DPO5000B Series instruments:
To use.
1. Set up the A Event and B Events from their individual tabs.
NOTE. On MSO/DPO5000B Series instruments, trigger on B events is available only for Edge trigger.
2. Select the A–>B Seq tab; then click Trig on nth Event.
Trigger setups
452 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
