Tektronix DPO71254C

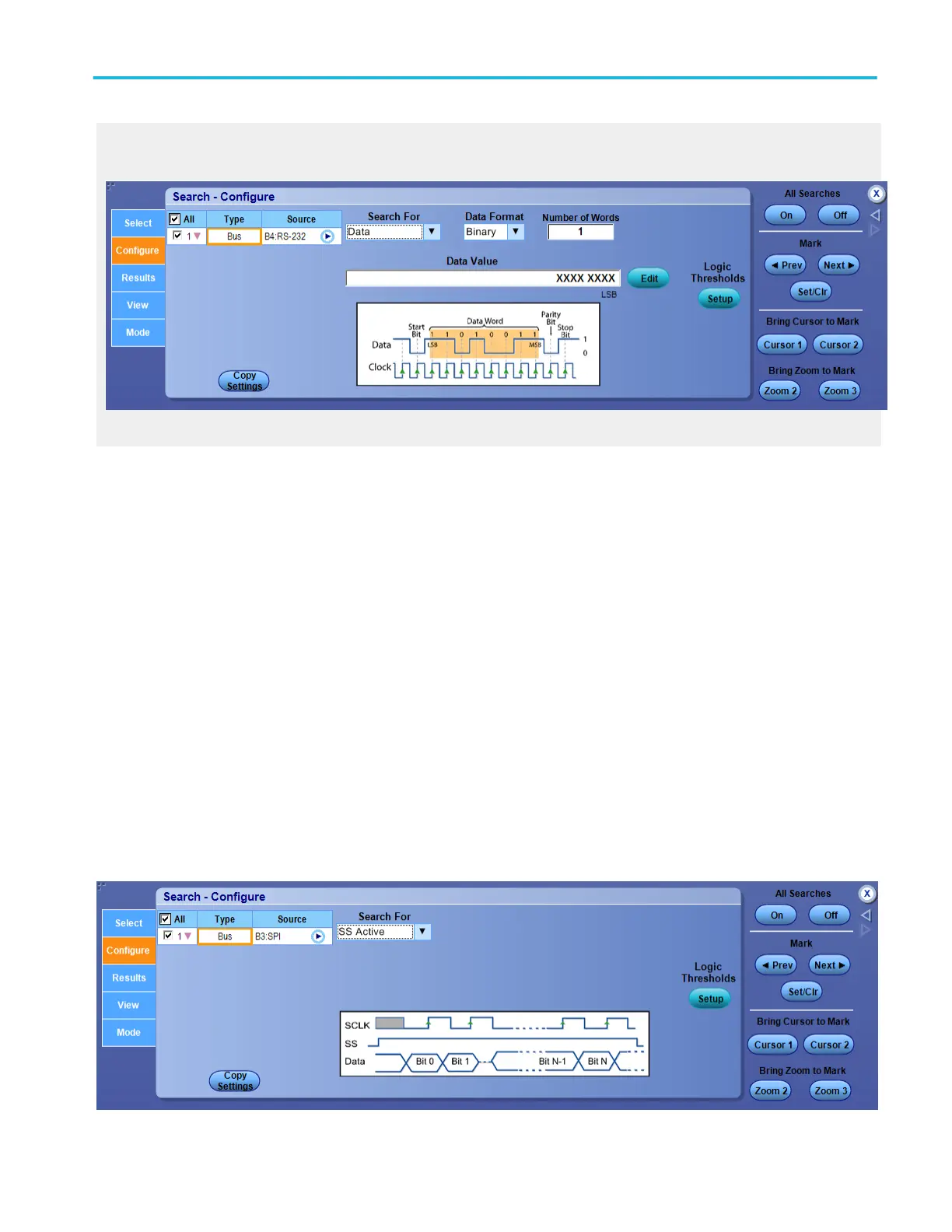

Search for data
The data type options available in Search For Data are Number of Bytes, Data Format, and Data Value.
Select the Data Format from the drop-down list. Click Edit to enter the data value. Click Setup to adjust the logic thresholds.
Set up SPI search parameters
After setting up an SPI bus, go to the Analyze menu, select Search, and then select the Bus trigger type; then open the Configure
tab.
Overview
Use the controls to set up the SPI Bus parameters.
To use
For information on the controls, click the buttons.
■
Type
■
Source
■
Copy Settings
■
Search Parameters
■
Search / Mark Controls
Analyzing waveforms
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 319
