To use
■
Click the Source box and select the bus number or name from the window. Bus Search Selection List
■
Select the pattern to search for using the Pattern Editor.
■
Select when to place a mark using the Mark When Pattern drop-down list.
What do you want to do next?
Learn about bus setups.
Learn about Custom Serial Bus Setup
View the results table
From the Bus Setup window, select the Display tab, and click Results Table, or in the Analyze menu, select Results Table.
Overview

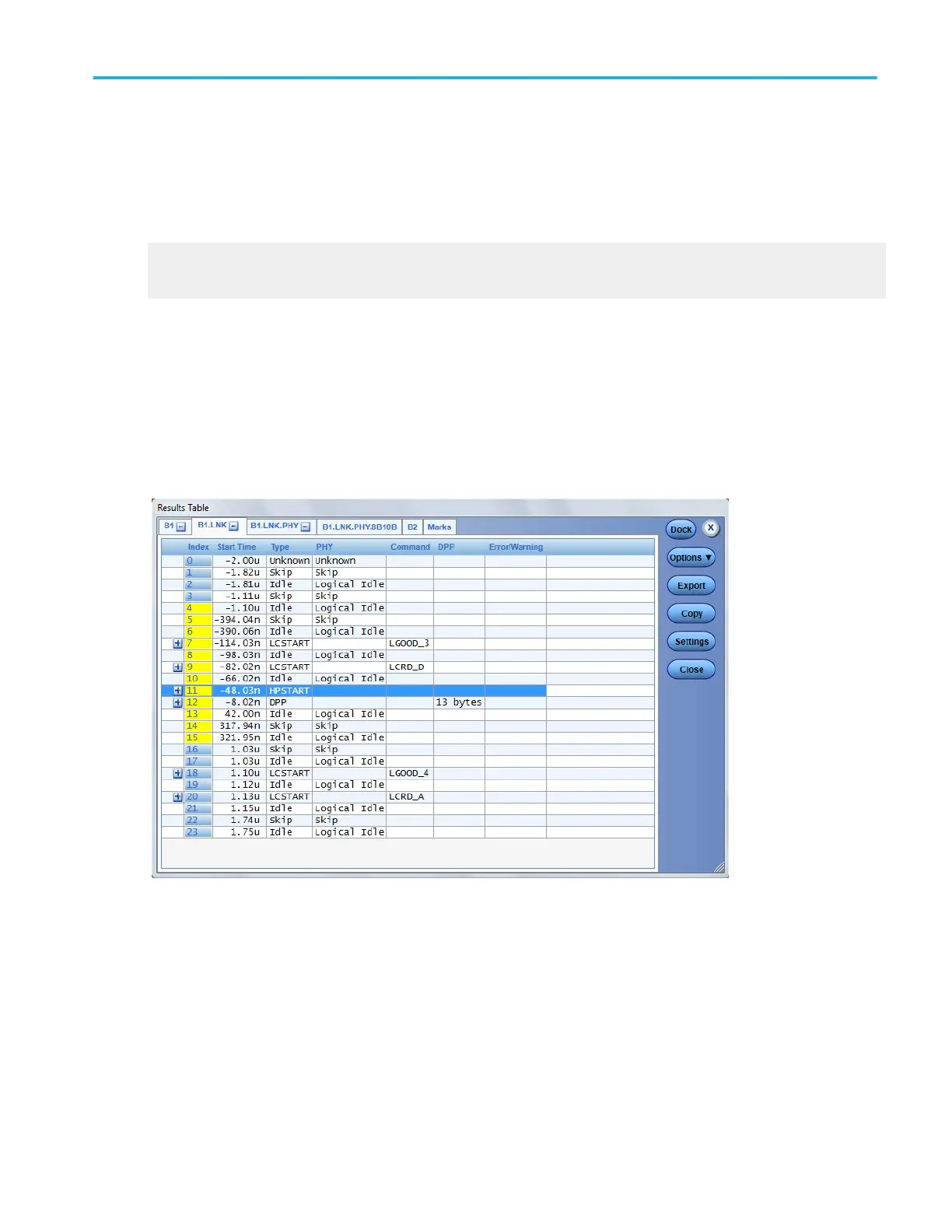

Use this dialog box to view the decoded contents of a bus.
To use
■
To view the decoded contents of a bus, select the tab for the bus, bus layer view, or marks. There is one tab for each
defined bus or bus layer.
