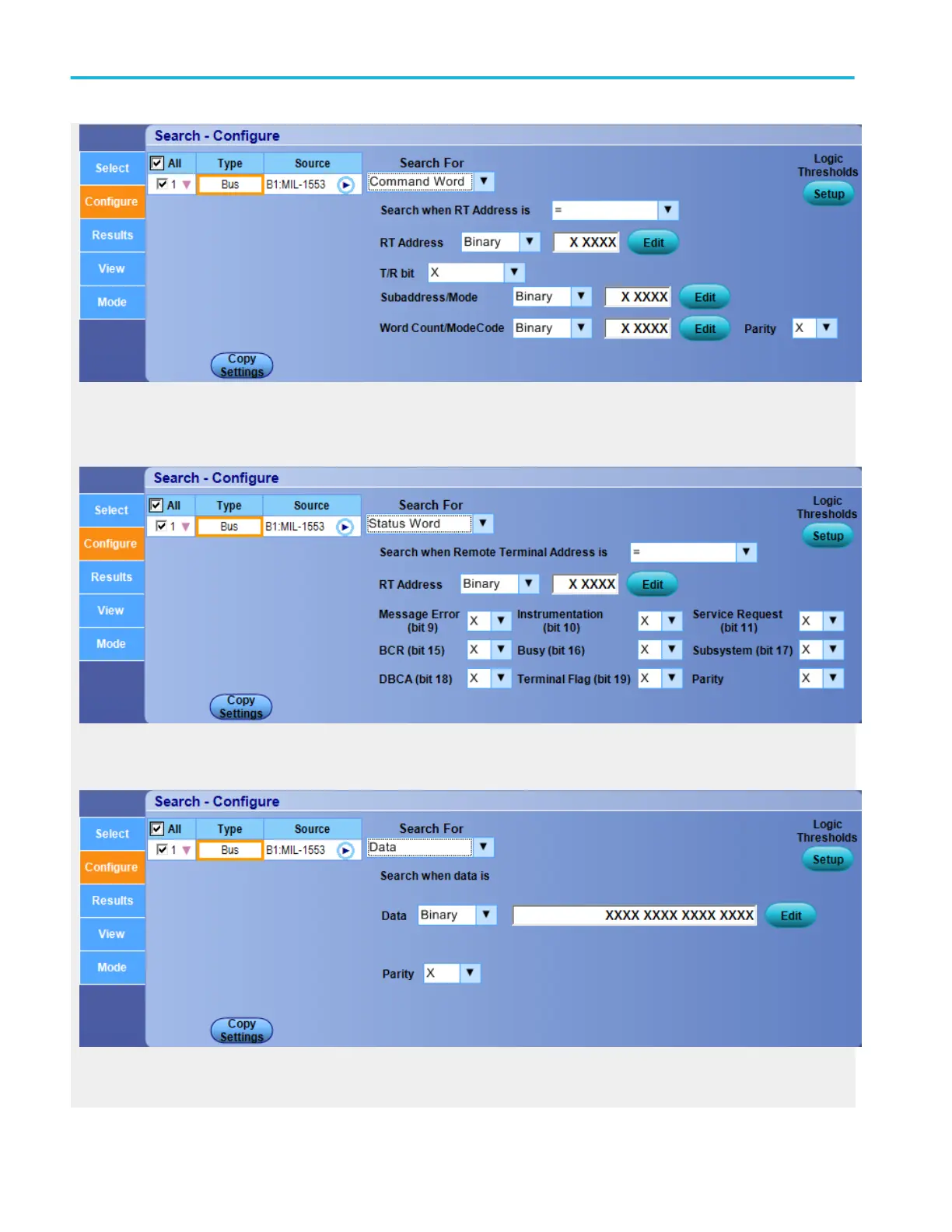

Search for status word

The data type options available in Search For Status Word are Message Error, Instrumentation, Service Request, BCR, Busy,

Subsystem, DBCA, Terminal Flag, Parity Search when Remote Terminal Address is, and RT Address (click the Edit button).

Search for data

The data type options available in Search For Data are Data, and Parity.

Search for RT/IMG Time

The data type options available in Search For RT/IMG Time are Search when data is, Maximum Time and Minimum Time.

Analyzing waveforms

352 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
