To Next Page

To Previous Page

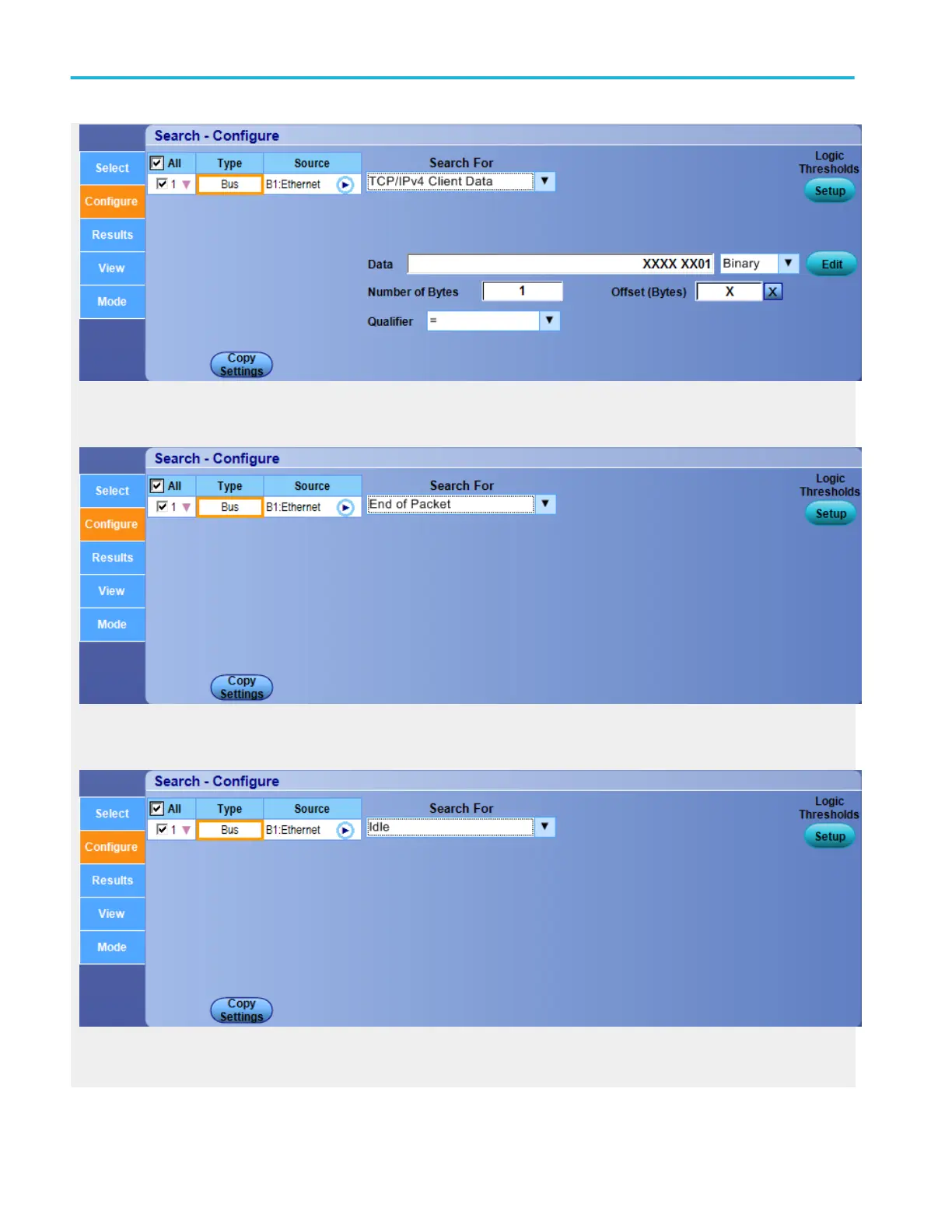

End of packet

Select End of Packet to search for the Ethernet End of Packet.

Idle

Select Idle to search for an Ethernet Idle character.

FCS (CRC) error

Select FCS (CRC) Error to search for an Ethernet FCS error.

Analyzing waveforms

358 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
