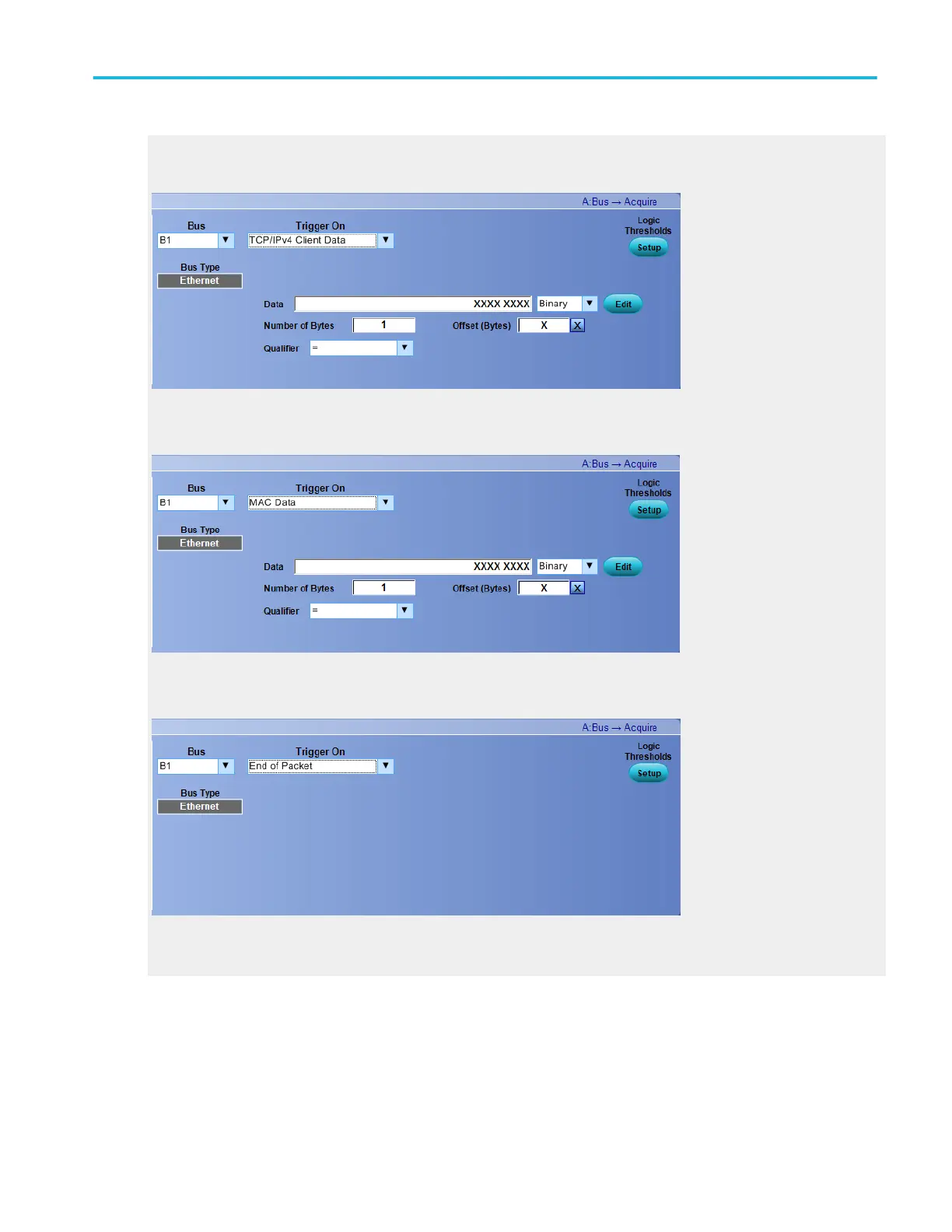

Trigger on TCP/IPv4 Client Data
For Trigger On TCP/IPv4 Client Data you need to specify the Data, Number of Bytes, Offset, and the Qualifier.
Trigger on MAC Data
For Trigger On MAC Data you need to specify the Data, Number of Bytes, Offset, and the Qualifier.
Trigger on End of Packet
Select End of Packet to trigger on an Ethernet End of Packet.
Trigger on Idle
Select Idle to trigger on an Ethernet idle character.
Trigger setups
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 411
