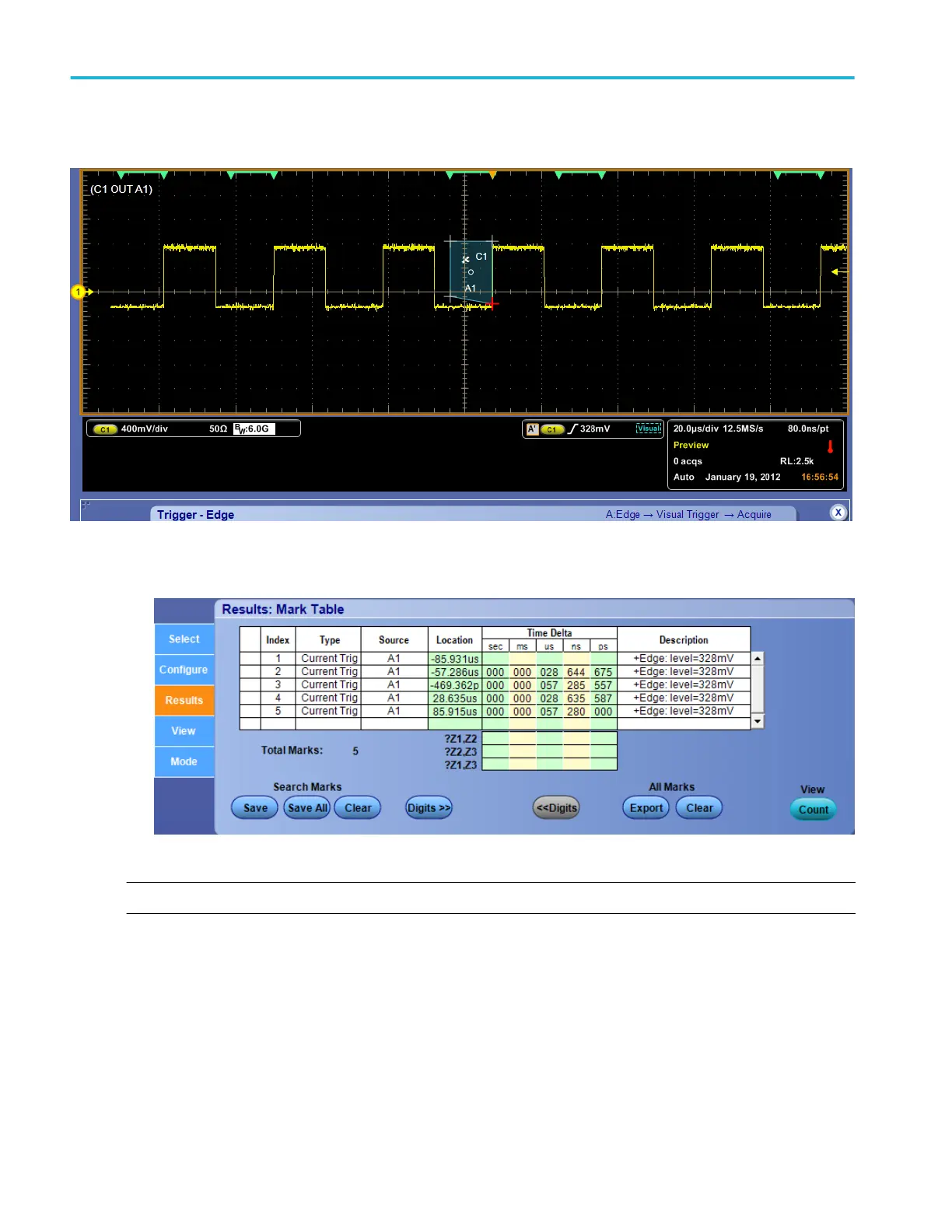

8. You can also add a visual trigger area. See Visual Trigger Setup

9. The results of the edge trigger and the visual trigger are also displayed in the search results.

NOTE. Mark All Trigger Events in Record is not available with some trigger types.

How to ?

638 DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series
