High pass filters. The following graphs show the available set of high pass filters. Their normalized frequency response is
shown from 0 to ½ the sample rate. These filters will operate at any sample rate with cutoff frequency scaled as shown below on
the graphs. The filters have normalized cutoff frequencies of 0.05, 0.1, 0.15, 0.20, 0.25, 0.3, 0.35, 0.40, and 0.45. Stop band
rejection is typically between –50 and –60 dB.

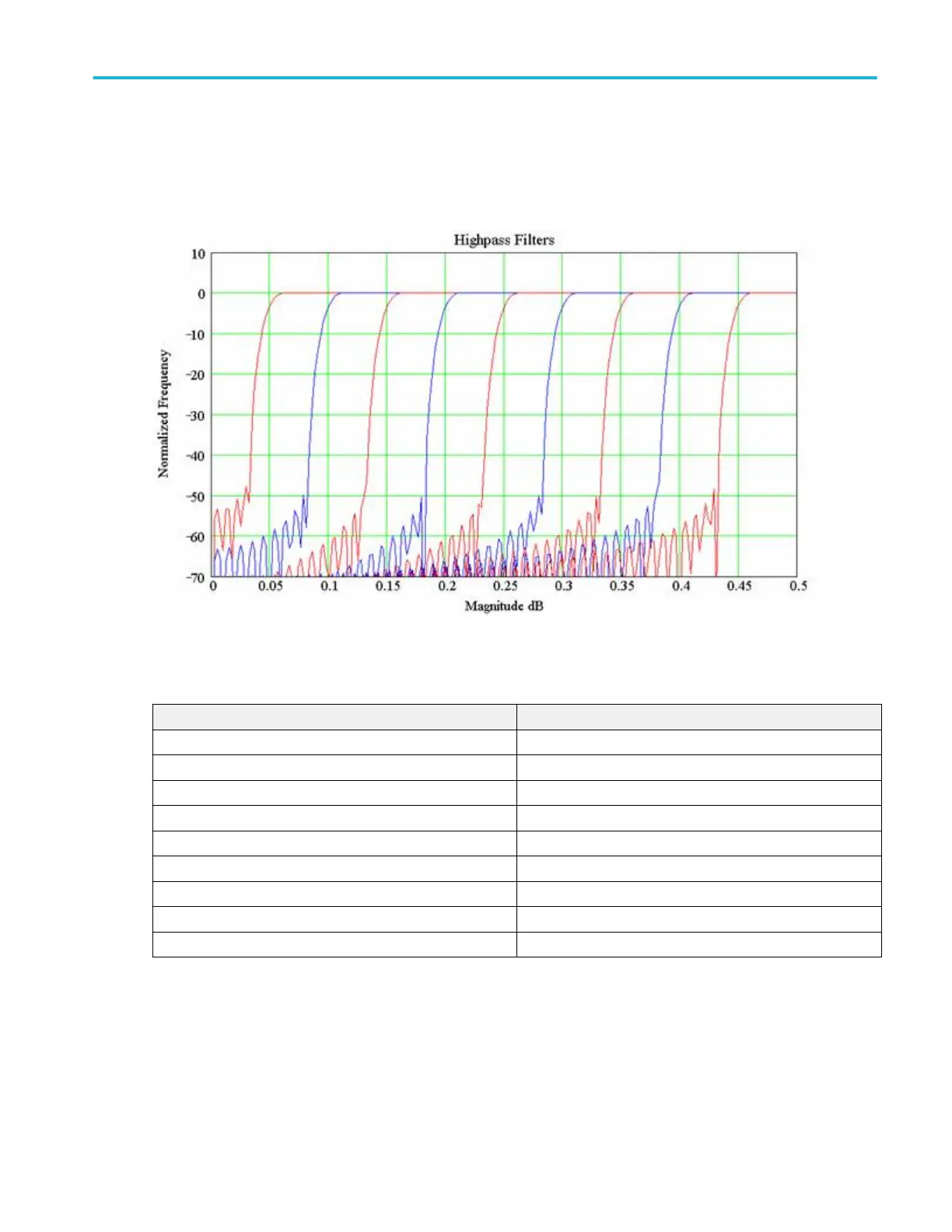

Figure 26: Frequency response of the available high pass filters
The following table lists the available high pass filters:
File name Normalized cutoff frequency
highpass_0.05bw.flt 0.05
highpass_0.10bw.flt 0.10
highpass_0.15bw.flt 0.15
highpass_0.20bw.flt 0.20
highpass_0.25bw.flt 0.25
highpass_0.30bw.flt 0.30
highpass_0.35bw.flt 0.35
highpass_0.40bw.flt 0.40
highpass_0.45bw.flt 0.45
Oscilloscope reference
DPO70000SX, MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO5000B Series 787
