Commands Listed in Alphabetical Order
Arguments
NR1 is an intege
r in the range of 0 through 15 representing a color as defined
in the above table.
Examples
DISPLAY:COLOR:CURSOR1 12 sets the color of cursor 1 to maroon.
DISPLAY:COLOR:CURSOR1? might return DISPLAY:CO LOR:CURSOR1 14,
indicating that the color of cursor 1 is gray.

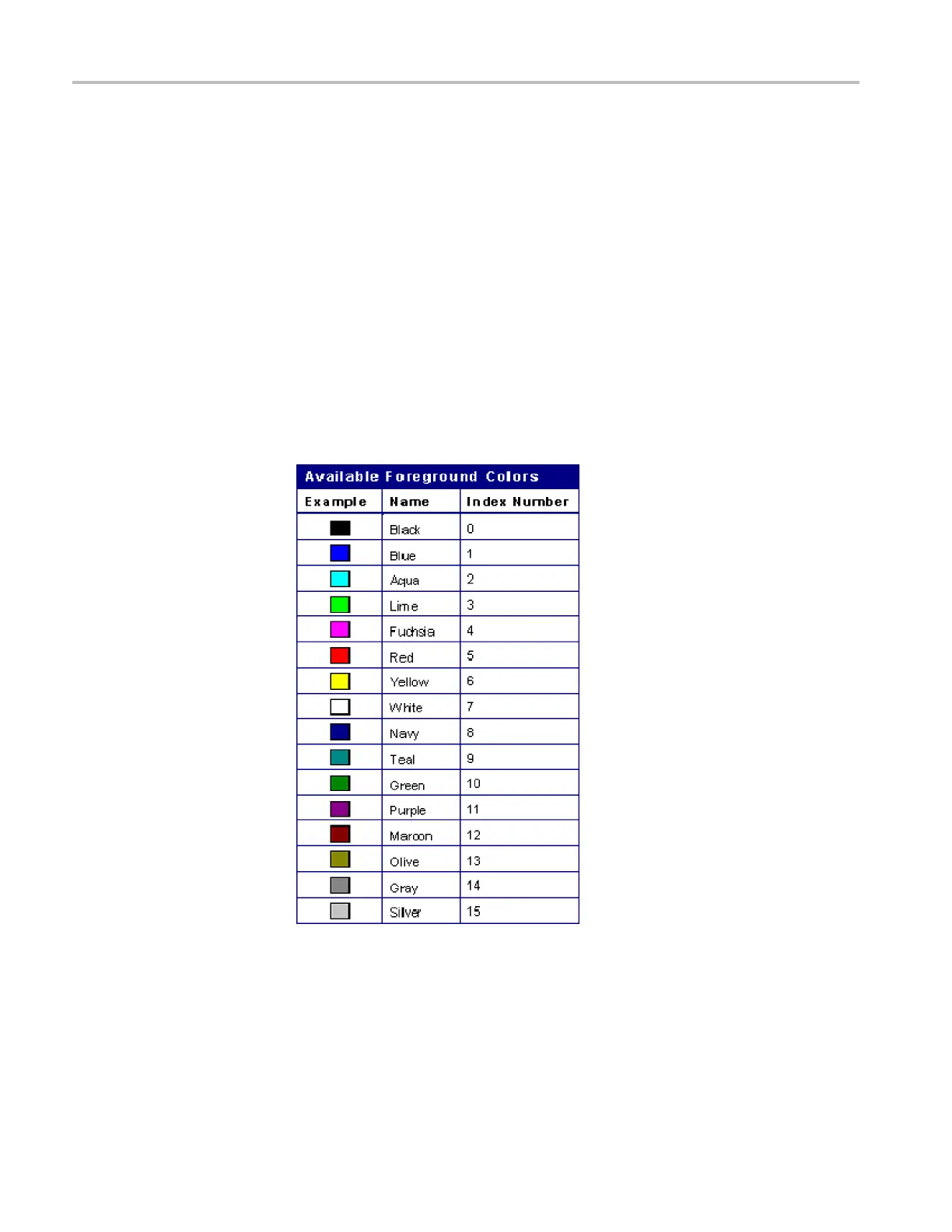

DISplay:COLor:FOREground
This command sets or queries the color of the graticule foreground, which is the
color of the graticule itself. This is equivalent to setting the Foreground color in
the Graticule section of the Display Setup dialog box. The d efault foreground
color is silver. The available foreground colors are listed in the following table.
Group
Display Control
Syntax
DISplay:COLor:FOREground <NR1>
DISplay:COLor:FOREground?
2-120 DSA/CSA/TDS8X00/B Series Programmer Manual
