Series 2600B System SourceMeter® instrument User's Manual Section 3: Instrument description
2600BS-900-01 Rev. A / August 2021 3-11
2601B, 2602B, 2604B, 2611B, 2612B, 2614B

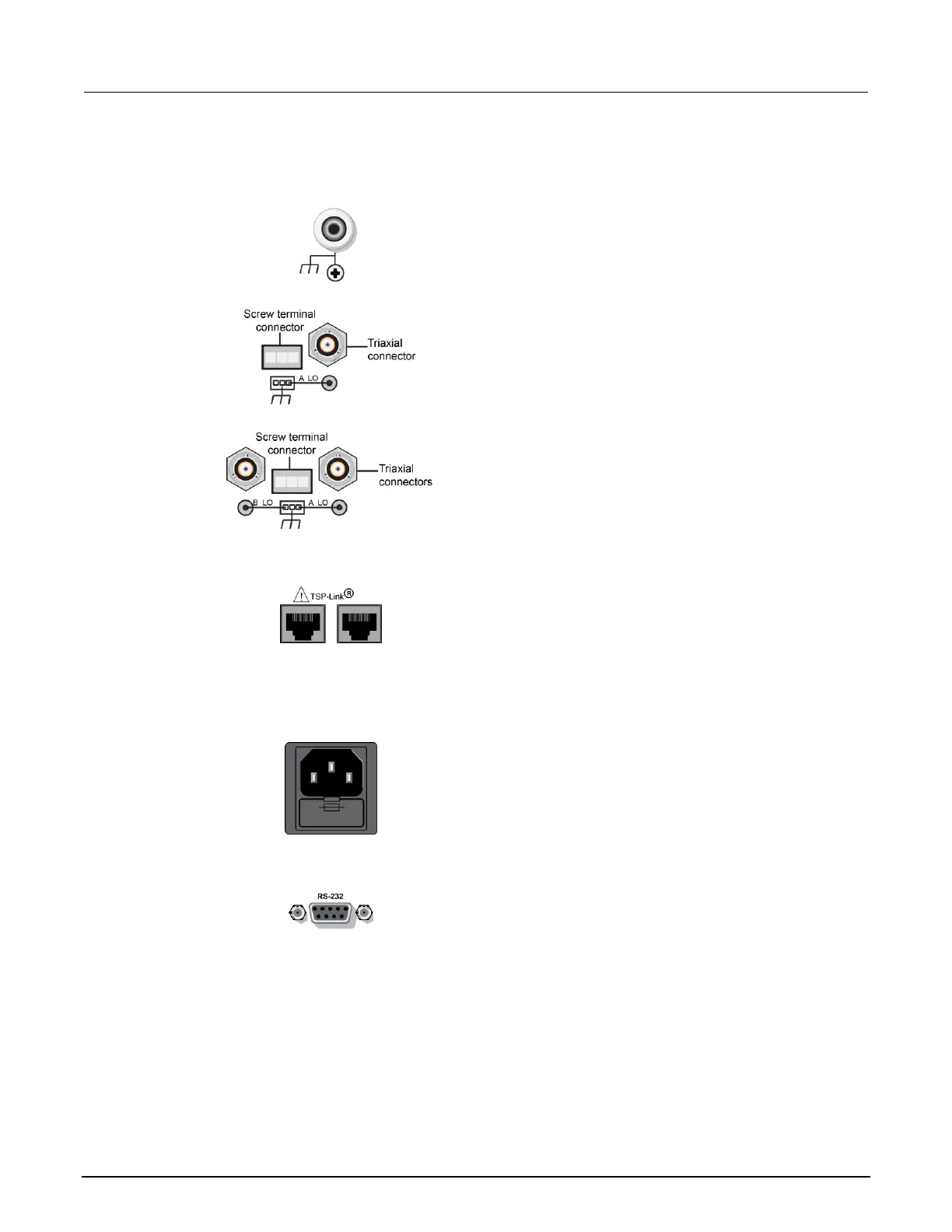

Ground terminal for connection output HI or LO to
chassis ground.
Ground screw for connections to chassis ground.
Triaxial connector on ground module.
Screw terminal connector on ground module.
Triaxial connector on ground module.
Screw terminal connector on ground module.
Expansion interface that allows a 2600B and other
TSP-enabled instruments to trigger and communicate
with each other. Use a category 5e or higher LAN
crossover cable.
The TSP-Link is not available on the 2604B, 2614B,
and 2634B.
Contains the ac line receptacle and power line fuse. The
instrument can operate on line voltages of 100 V ac to
240 V ac at line frequencies of 50 Hz or 60 Hz.
Female DB-9 connector. For RS-232 operation, use a
straight-through (not null modem) DB-9 shielded cable to
connect to the computer.
