Section 4: Operation Series 2600B System SourceMeter® instrument User's Manual
4-18 2600BS-900-01 Rev. A / August 2021

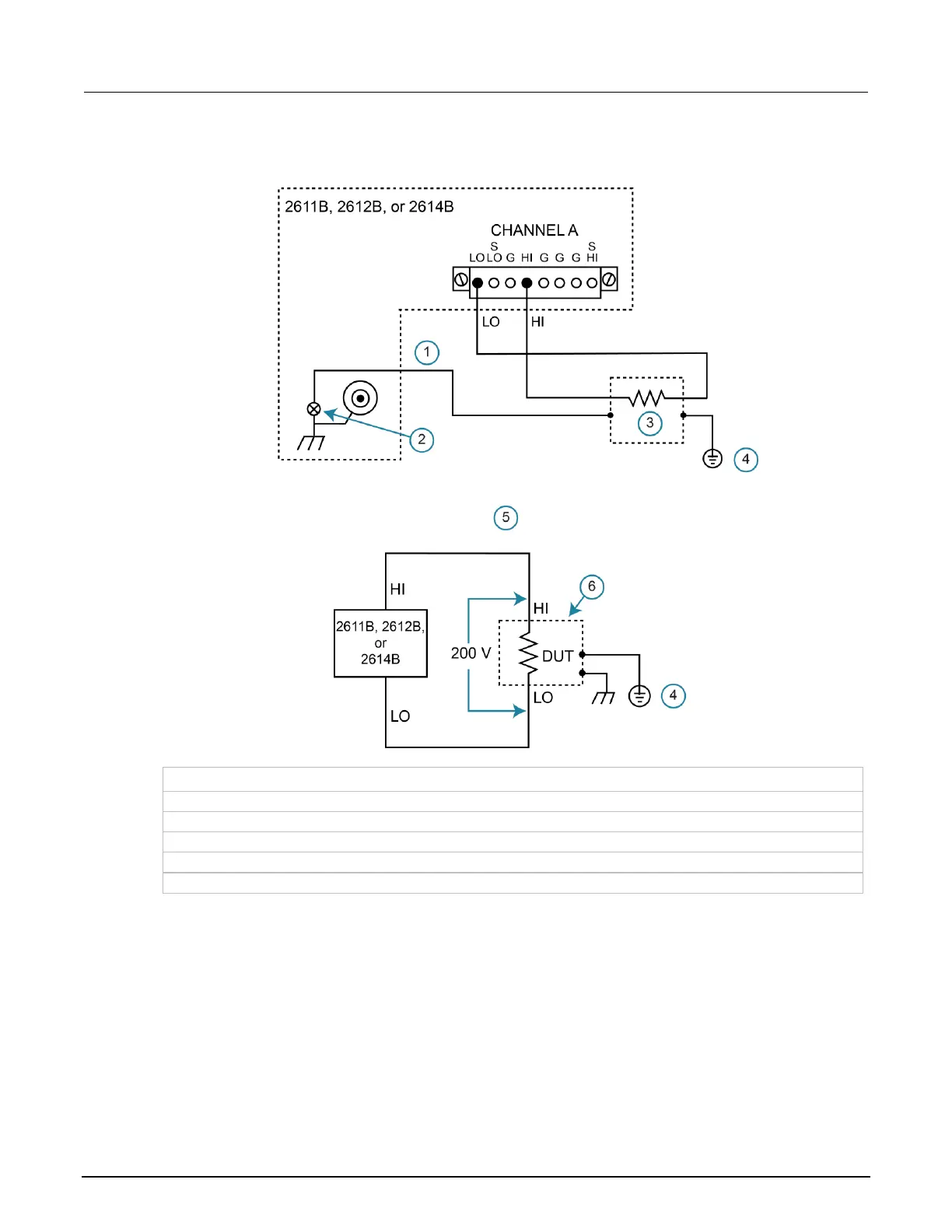

Figure 32: Model 2611B, 2612B, or 2614B safety shield for hazardous voltage test circuit
connections
1 Chassis
2 Chassis screw
3 Device under test (DUT)
4 Protective earth (safety ground)
5 Equivalent schematic
6 Metal safety shield
