Performance Ver
ification
Check AFG Sine and Ramp Frequency
This test checks the AFG Sine and Ramp Frequency.

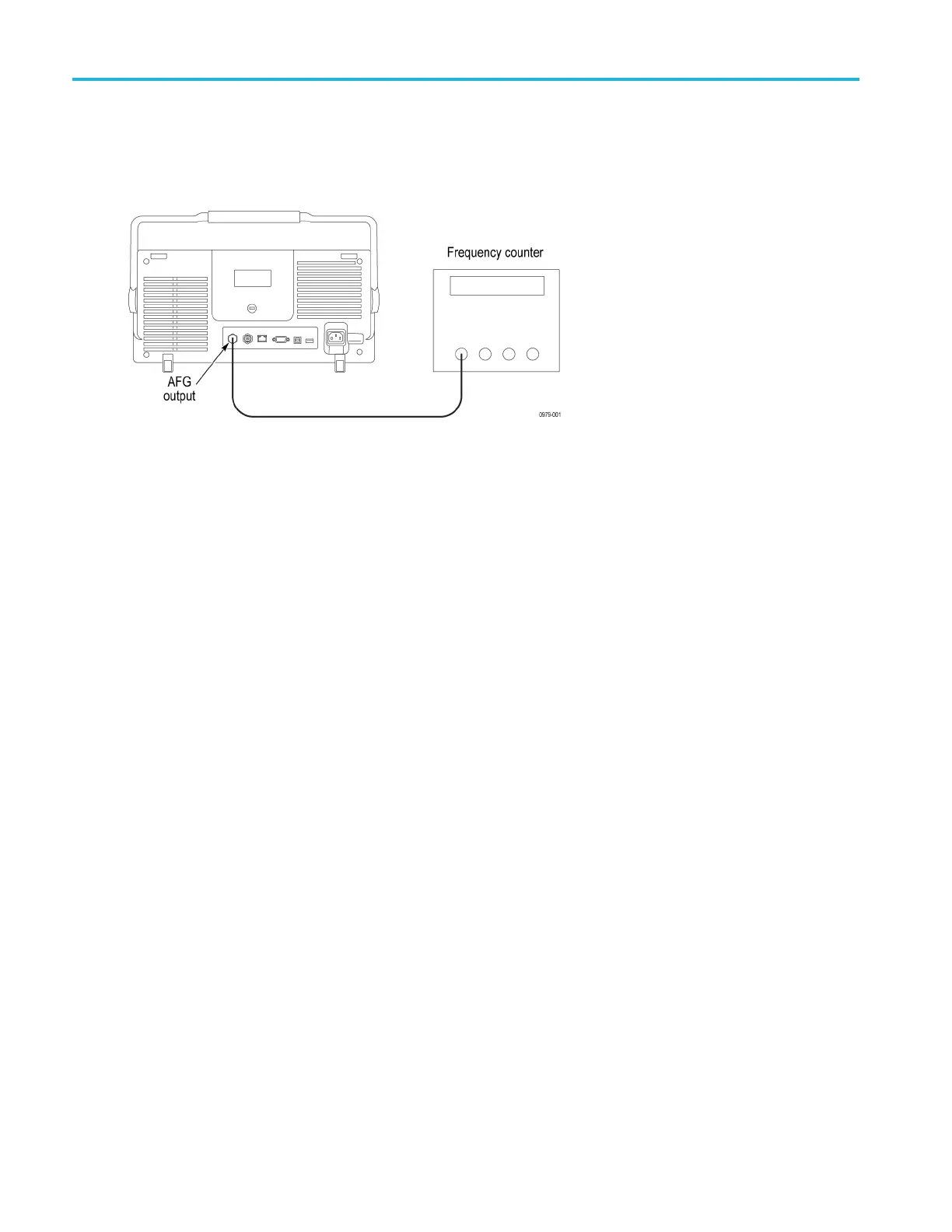

1. Connect AFG output to the frequency counter.
2. Push the Default Setup button on the oscilloscope front panel.
3. Push the AFG button on the front panel.
4. Under Waveform Settings, set amplitude and frequency to those shown in the test record.
5. Set Waveform to Sine wave (or R amp).
6. Push Output Settings on the bottom menu. Push Load Impe dan ce on the side menu to select 50 Ω.
7. Measure frequency in the frequency counter. Compare results to the limits in the test record.
8. Repeat steps 3 - 7 above for all rows in the test record.
This completes the procedure.
110 MDO3000 Series Specifications and Performance Verification
