Tektronix MDO3024 Installation And Safety Instructions

Operating Requirements

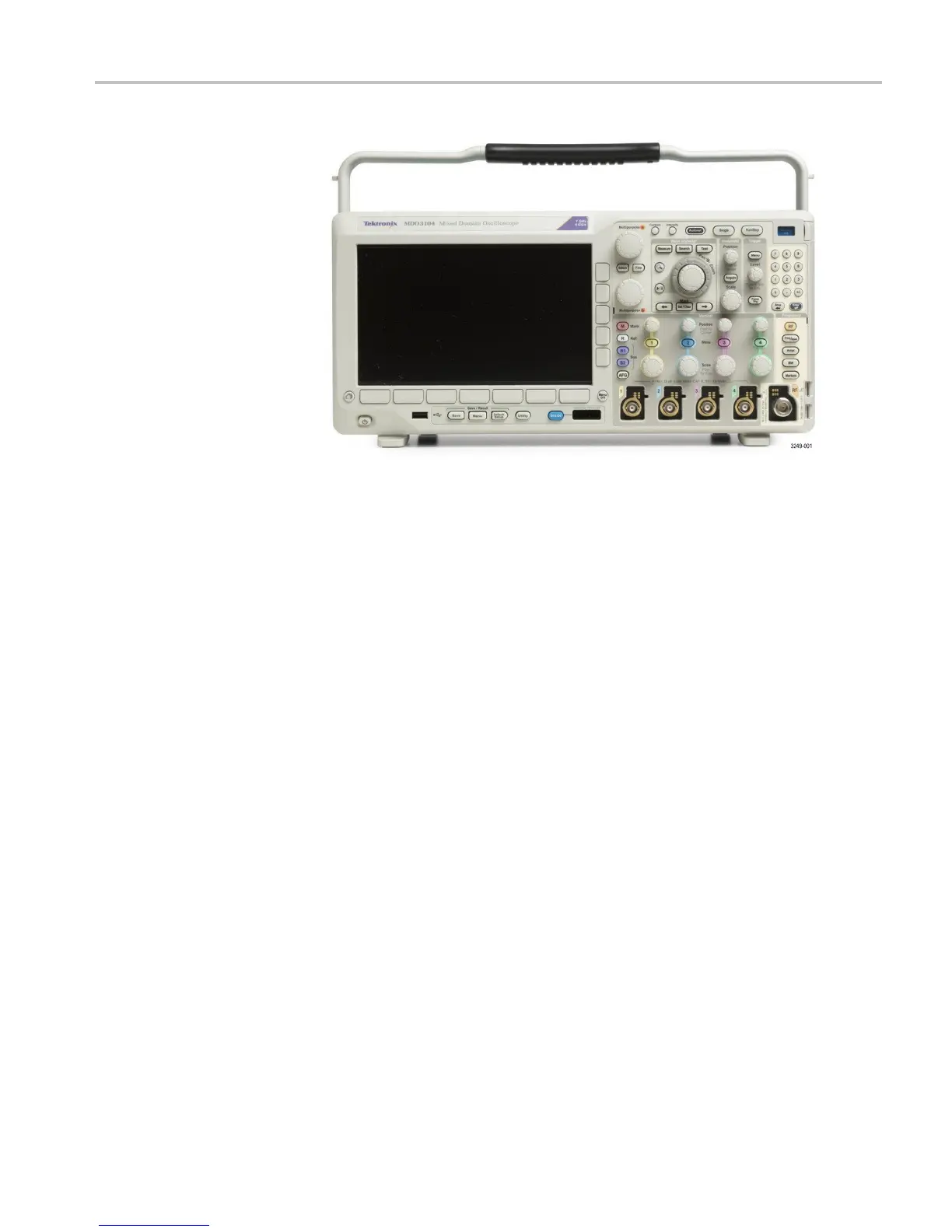

Figure 1: MDO3000 series
TPP0250, TPP0500B, or
TPP1000 Pass ive Probe
Maximum input voltage: 300 V
RMS
CAT II safety requirements
Temperature:
Operating:–15°Cto+65°C(+5°Fto+149°F)
Nonoperating: –62 °C to +85 °C ( –80 °F to +185 °F)
Humidity: 5% to 95% RH
Operating: 5% to 95% relative humidity (%RH) up to +30 °C, 5% to 75% RH
above +30 C up to +65 °C. Noncondensing
Nonoperating: 5% to 45% RH above +65° C up to +85 °C. Noncondensing
Altitude:
Operating: 3,000 m (9,842 ft.) maximum
Nonoperating: 12,200 m (40,000 ft.) maximum
Option MDO3MSO: Adds
16 digital channels and a
P6316 Digital Probe
Number of input channels: 16 digital inputs
Threshold Accuracy: ±(100 mV + 3% of threshold)
Threshold Range: –15 V to +25 V
Maximum nondestructive input signal to probe: –20 V to +30 V peak
Minimum signal swing: 500 mV
peak-to-peak
Input resistance: 101 kΩ
Input capacitance: 8.0 pF
Temperature:
Operating: 0 °C to +50 °C (+32 °F to +122 °F)
MDO3000 Installation and Safety Instructions 15

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
