Tektronix MDO3024 Installation And Safety Instructions

Installation Procedure
Installation Procedure

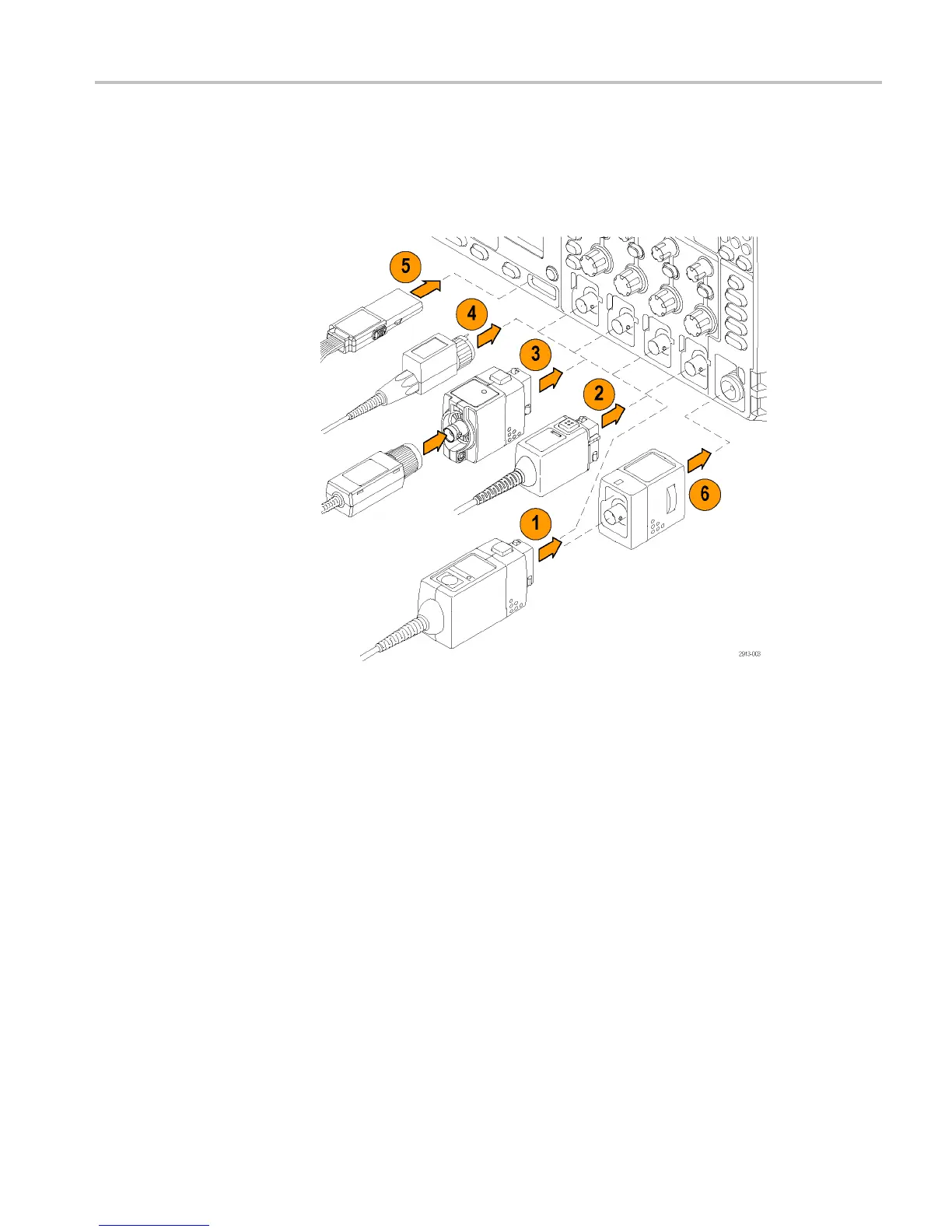

Connecting Probes
The oscilloscope supports probes with the following:
1. Tektronix Versatile Probe Interface (TekVPI)
These probes support two-way communication with the oscilloscope through
on-screen menus and remotely through programmable support. The remote
control is useful in applications like ATE where you want the syste m to preset
probe parameters.
2. Tektronix Versatile Probe Interface (TekVPI) for Passive Probes
These probes build upon the functionality of the TekVPI interface. Each
probe is matched with its corresponding oscilloscope channel, allowing
the oscilloscope to o ptimize the signal input path. This provides AC
compensation across the frequency band.
3. TPA-BNC Adapter
The T PA-BNC Adapter allows you to use TEKPROBE II probe capabilities,
such as providing probe power, and passing scaling and unit information to
the oscilloscope.
4. BNC Interfaces
MDO3000 Installation and Safety Instructions 19

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
