Tektronix MDO3024 Installation And Safety Instructions

A Tour of Your Instrument
8. Dedicated RF in
put with N-connector
9. Analog channel (1, 2, (3, 4)) inputs with TekVPI versatile probe interface
10. Digital channel input
11. Display: shows frequency or time domain
12. Arbitrary waveform generator (AFG) enable button

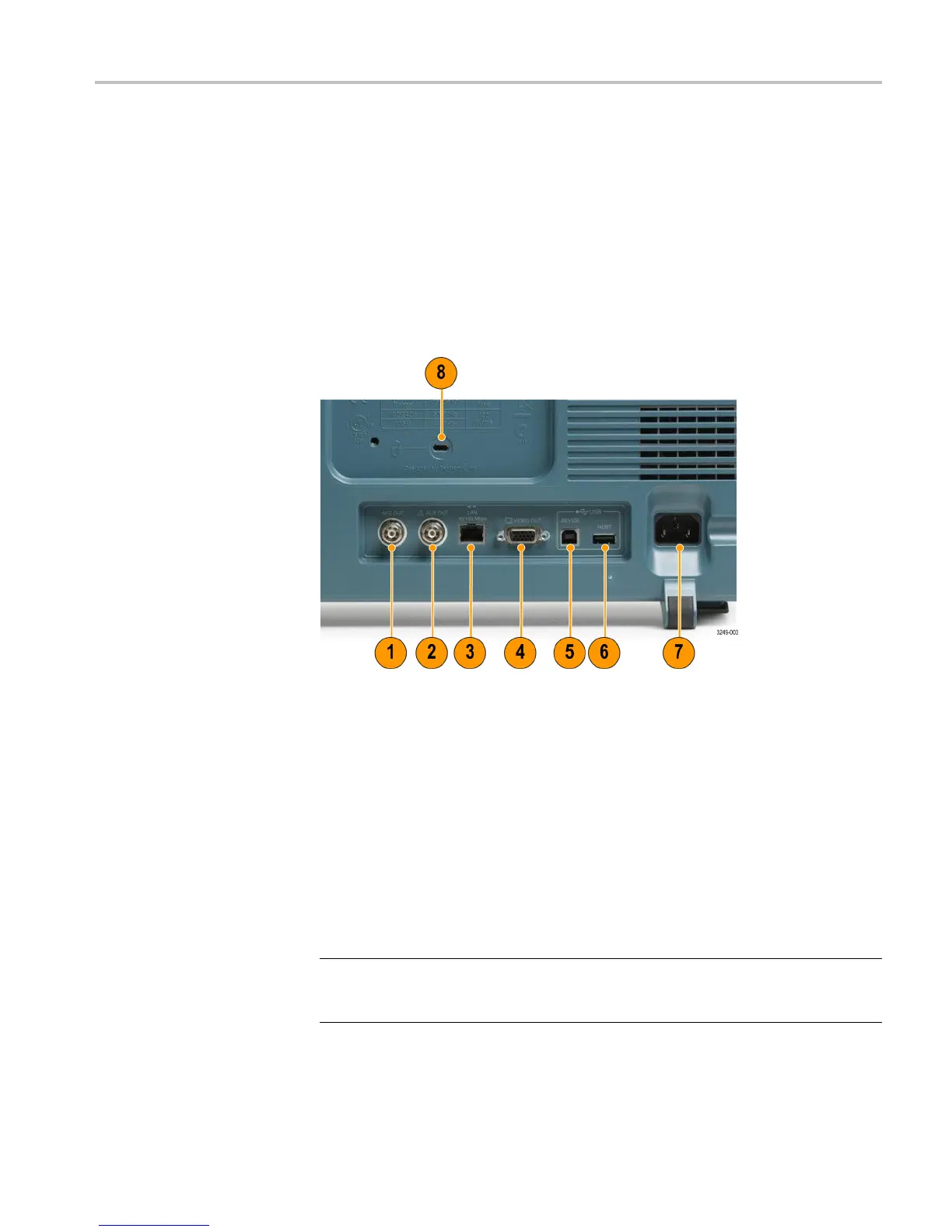

Rear-Panel Connectors
1. AFG OU
T. Use the AFG OUT port to transmit signals from the arbitrary
function generator.
2. AUX O
UT
3. LAN. Use the LAN (Ethernet) port (RJ-45 connector) to connect the
osc
illoscope to a 10/100 Base-T local area network.
4. Video Out. Use the Video Out port (DB-15 female connector) to show the
osc
illoscope display on an external monitor or projector.
5. USB 2.0 Device port. Use the USB 2.0 High Speed Device port to connect
aP
ictBridge compatible printer, or for direct PC control of the oscilloscope
using U SBTMC protocol.
NOTE. The cable connected from the USB 2.0 Device port to the host computer
must meet the USB2.0 specification for high speed operation when connected to
a high speed host controller.
MDO3000 Installation and Safety Instructions 21

Tektronix MDO3024 Specifications

General

Analog Channels	4
Bandwidth	200 MHz
Sample Rate	2.5 GS/s
Record Length	10 Mpoints
Digital Channels	16 (optional)
Spectrum Analyzer Frequency Range	9 kHz to 3 GHz
Digital Voltmeter	4-digit
Vertical Resolution	8 bits
Operating Temperature	0 °C to +50 °C
Display	9-inch WVGA (800x480) color display
Connectivity	USB, LAN, GPIB (optional)
Arbitrary Function Generator	50 MHz
Trigger Modes	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
Input Impedance	1 MΩ ±1%
Max Input Voltage	300 VRMS
Trigger Types	Edge, Pulse Width, Logic, Video, Runt, Rise/Fall Time, Setup/Hold
