Trigger Setup

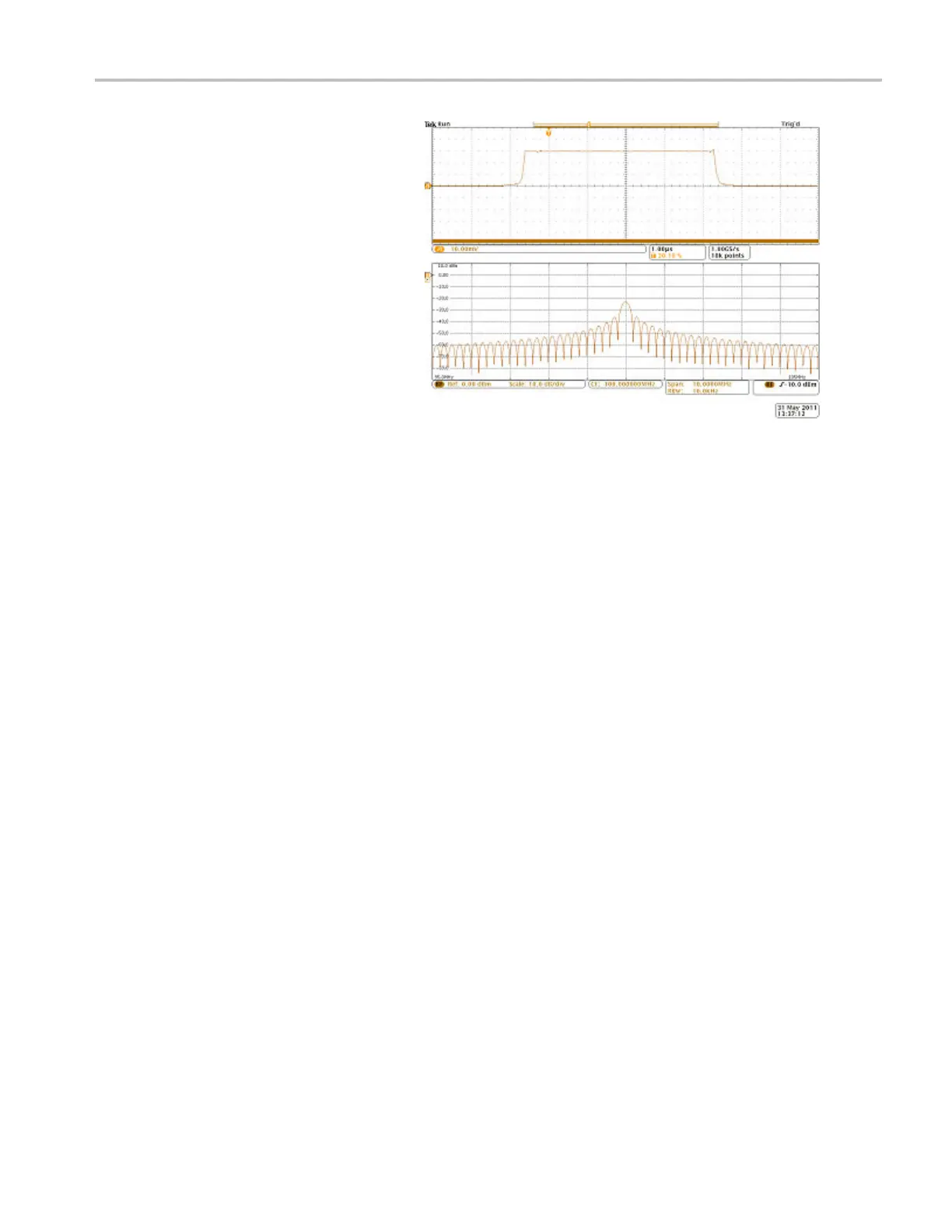

In the figure to the right, the edge trigger
power level is now raised to -10 dBm.
The trigger in
dication is now delayed
approximately 500 ns from the start of the
burst. This is due to the power detector
response dis
cussed previously.
