Tektronix MDO4104-6

Installation
Operating Considerations
MDO4000 Serie
s Oscilloscopes
Operating Li
ne Frequency and Voltage Range
Volts
100-240
115
Hz
50-60
400
Mains input
voltage range: 100 V - 240 V
Maximum Power Consumption: 225 W

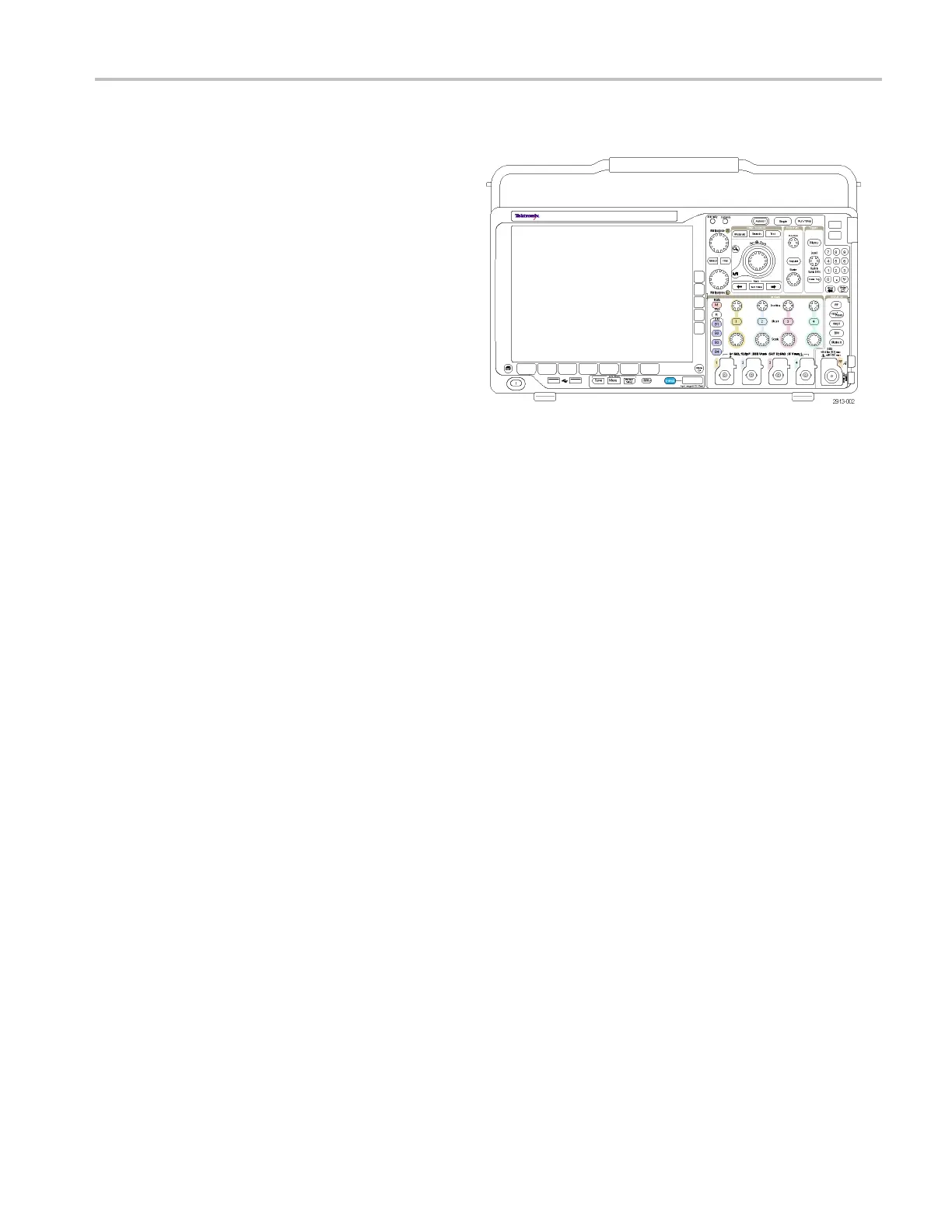

Weight:
5.0 kg (11.
0 lbs), standalone instrument, without front
cover
Height, feet folded in, handle folded down:
229 mm (9.
0in)
Width, from handle hub to handle hub: 439 mm
(17.3 in)
Depth, f
rom back of feet to front of knobs: 147 mm
(5.8 in)
Depth, from back of feet to front of front cover: 155
mm (6.1 i
n)
MDO4000 Se
ries
Temperature:
Operat
ing:+0°Cto+50°C(+32°Fto122°F)
Non-operating: -20 °C to +60 °C (-4 °F to 140 °F)
Humid
ity:
Operating: High: 40 °C to 50 °C (104 °F to 122 °F),
10% to 60% RH
Opera
ting: Low: 0 °C to 40 °C (32 °F to 104 °F), 10
to 90% RH
Non-operating: High: 40 °C to 60 °C (104 °F to
140 °
F), 5 to 60% RH
Non-operating: Low: 0 °C to 40 °C (32 °F to 104 °F),
5to90%RH
Altitude:
Operating: 3,000 m (about 9,843 ft)
Non
-operating Altitude: 12,000 m (39,370 ft)
Pollution Degree: 2, Indoor use only
MDO4000 Series Oscilloscopes User Manual 5
