Analyze Wavefor
morTraceData
3. Investigate your waveform by moving
from search mark to search mark. U se
the next ( )or
previous ()arrow
button to jump from one marked location
to another, without adjusting any other
controls.
4. Deleteamar
k. Push the next ( )or
previous ()arrowbuttontojumptothe
mark you want to clear. To remove the
current, ce
nter-positioned mark, push
Set/Clear. It works on both manually
and automatically created marks.

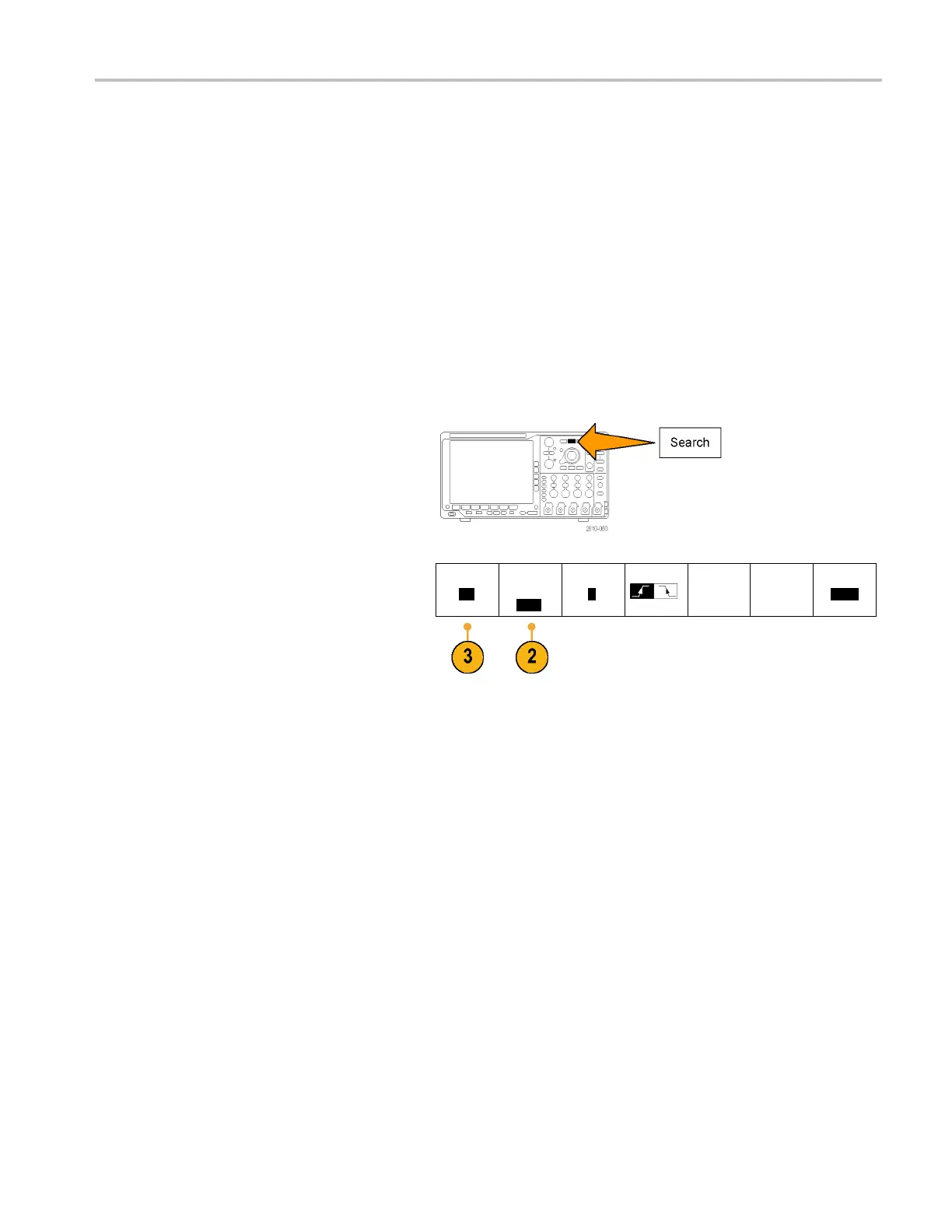

To automatically set and clear (delete) search marks:
1. Push Sear
ch.
2. Select t
he search type desired from the
lower-bezel menu.
Search
Off
Search
Type
Edge
Source
1
Slope
Threshold
0.00V
The search menu is similar to the trigger
menu.
3. From the side-bezel menu, turn on the
searc
h.
MDO4000 Series Oscilloscopes User Manual 147
