Get Acquainted w
ith the Instrument
30. Menu Off. Push to clear a displayed
menu from the screen.

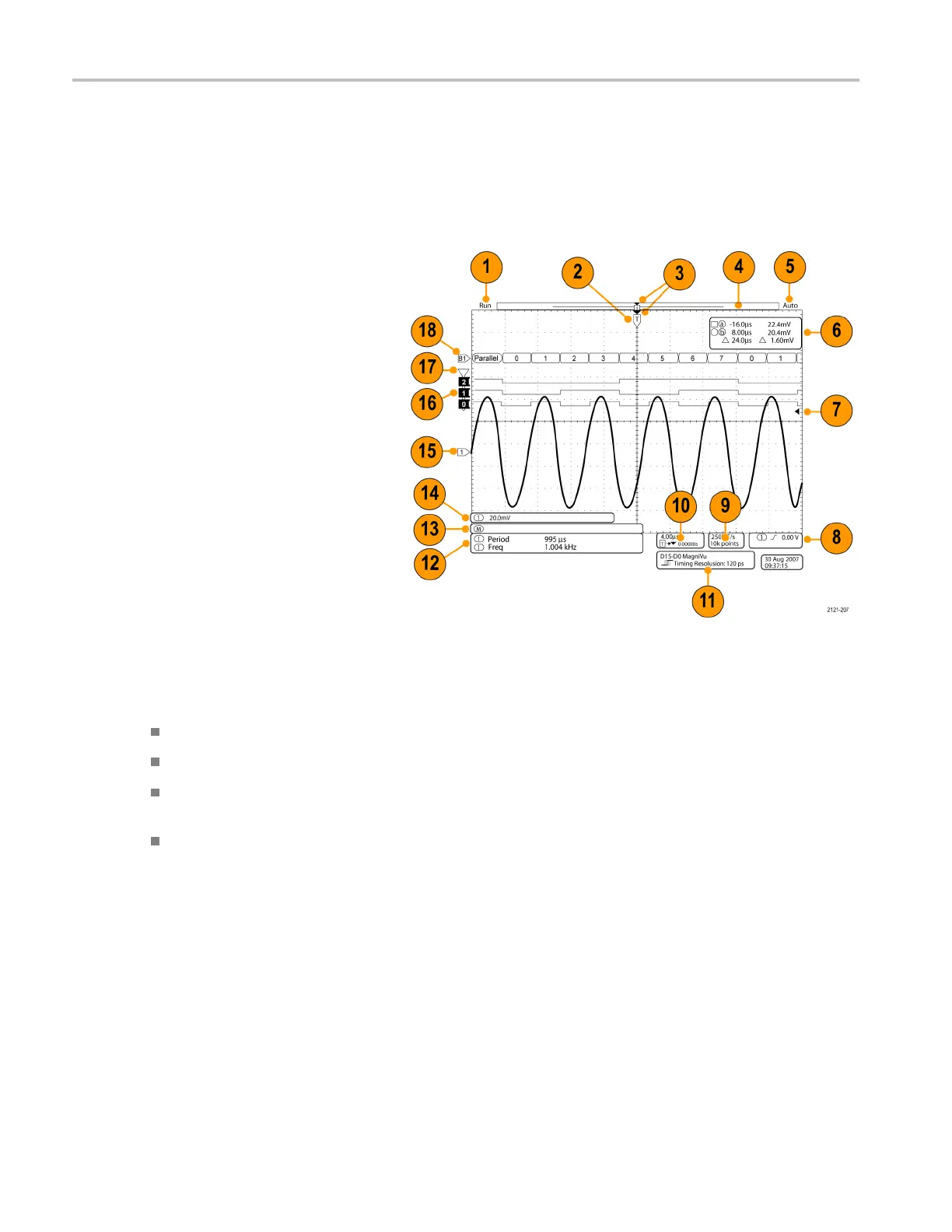

Identifying
Items in t he Time Domain Display
The items sho
wn to the right may appear in
the display. Not all of these items are visible
at any given time. Some readouts move
outside the
graticule area when menus are
turned off.
1. The acquisition readout shows when an
acquisition is running, stopped, or when
acquisi
tion preview is in effect. Icons are:
Run: Ac
quisitions enabled
Stop: A
cquisitions not enabled
Roll: I
n roll mode (40 ms/div or
slower)
PreVu: In this state, the oscilloscope
is stopped or between triggers.
You ca
n c hange the horizontal
or vertical position o r scale to
see approximately what the next
acqu
isition w ill look like.
42 MDO4000 Series Oscilloscopes User Manual
