Tektronix MSO70000 Series

Replaceable Parts (DSA/DPO70000B Series)
Table 5-12: Rep
laceable parts – Acquisition assembly (DSA/DPO70000B Series)
Fig. &
index
number
Tektronix
part
number
Serial no.
effective
Serial no.
discont’d Qty Name & description
5-14
ACQUISITION
-1 214-3903-00 8
SCREW, JACK; 4-40 X 0.312 LONG, 0.188 H HEX HEAD STAND OFF,
4-40 INT THD, X 0.312 THD EXT 4-40
-2
-------
1
ACQUISITION MODULE, RETURN TO TEKTRONIX FOR SERVICE
-3 211-0752-00 10
SCREW,MACHINE; 6-32 X 0.75, PNH, TORX
-4 211-1050-00
7
SCREW, MACHINE; 6-32 X 0.312 L, PNH, STL CAD PLT, T15

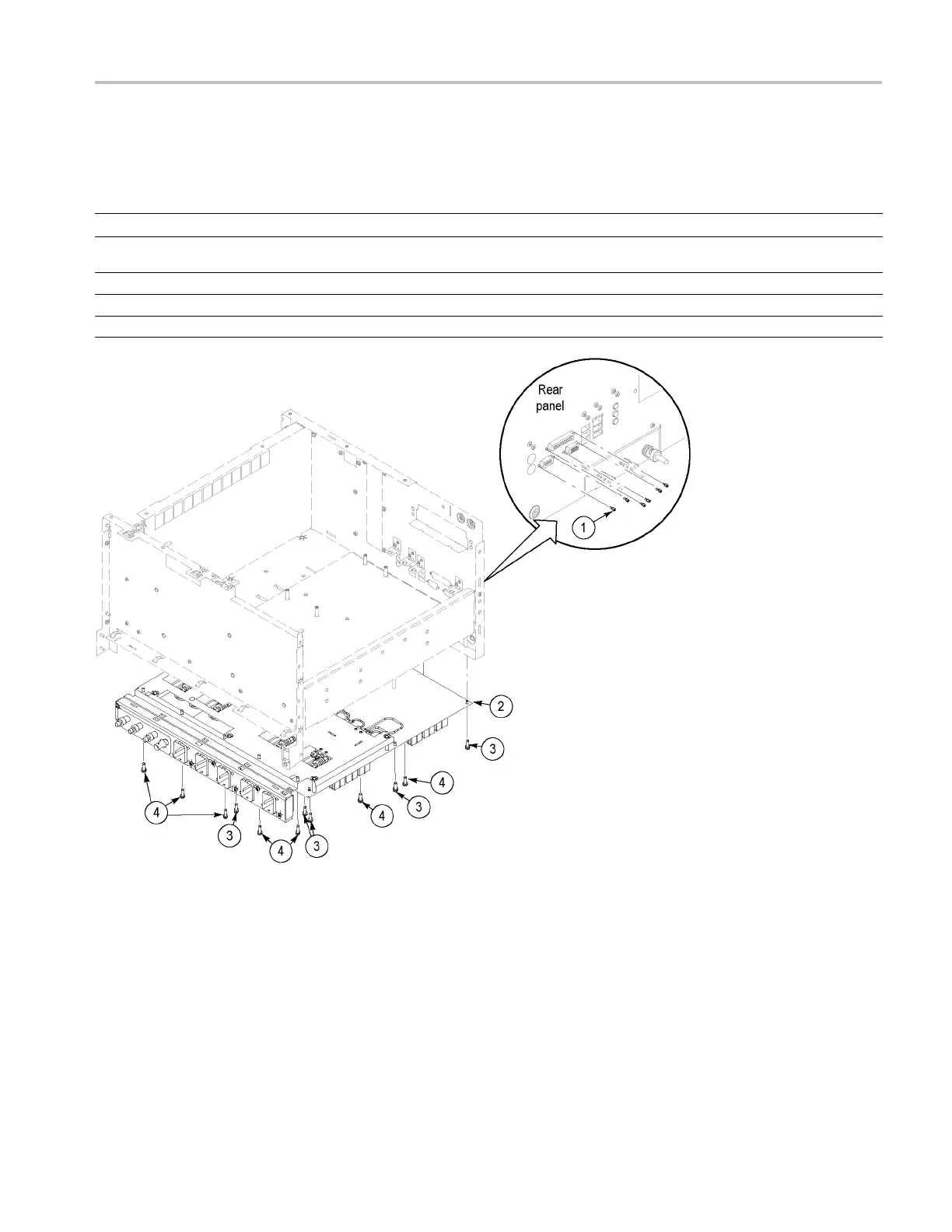

Figure 5-14: Acquisition assembly (DSA/DPO70000B Series)
