Troubleshooting (DPO7000 Series, MSO70000/C Series, DSA/DPO70000B/C Series)

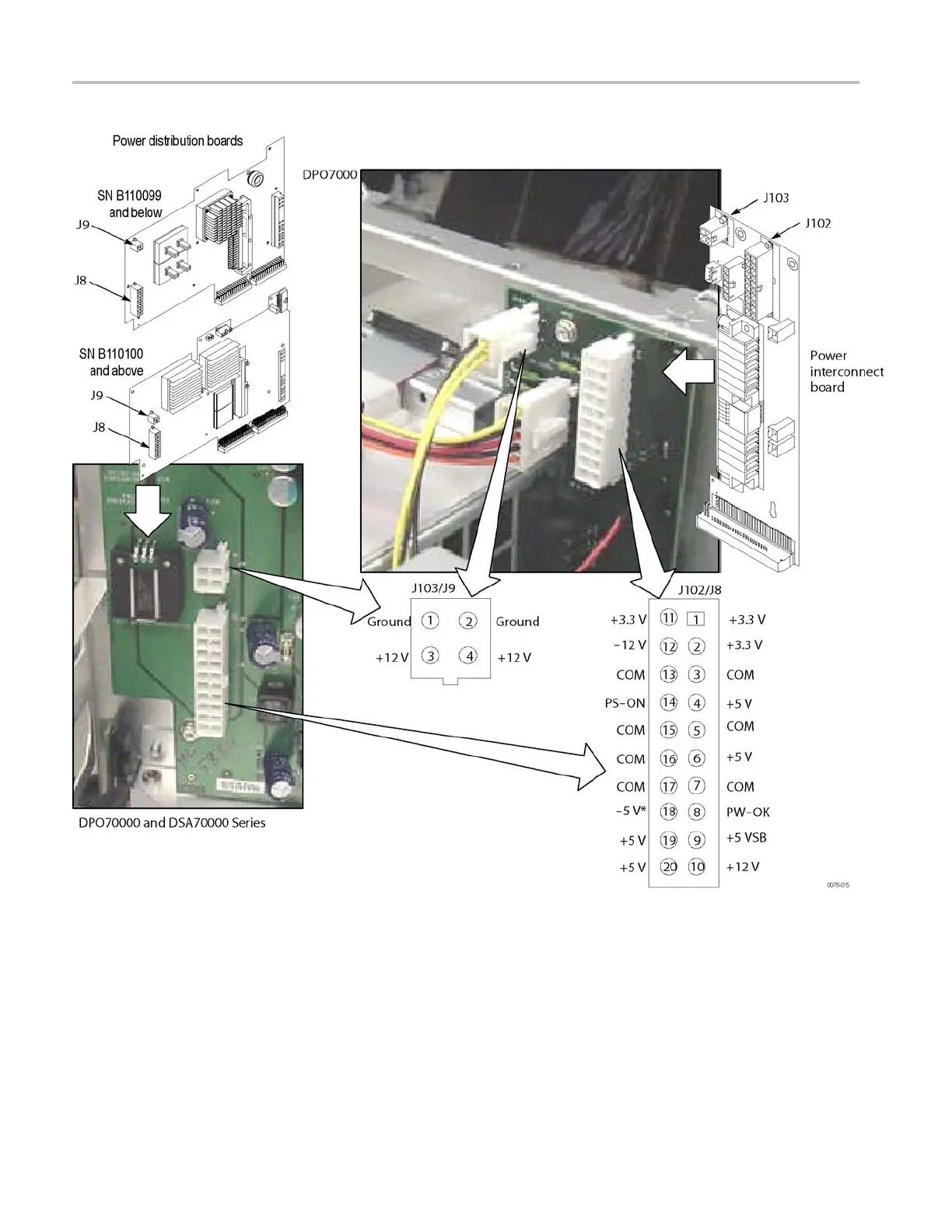

Figure 4-7: Power supply test points

If the Instrument Will Not Boot. If nothing is displayed, check that the display is

turned on. At boot time, and while using an external monitor connected to the

μA

TX external video port, press F2 to enter the BIOS setup. The Advanced Video

Conﬁguration menu lets you select PCI (LCD) or Integrated (the μAT X V I D E O

port on the rear panel). The lower X VGA port on the rear panel is the PCI video

port (driven by the same video controller as the LCD).

4–22 MSO70000/C, DSA70000B/C, DPO70000B/C, DPO7000, MSO5000, DPO5000 Series
