Tektronix TBS1000 Series - Figure 8-3: Power Supply Module, Cables, and Wires; Table 8-4: Replaceable Parts List; Power Supply Module, Instrument Cables, and Wires

Replaceable Parts

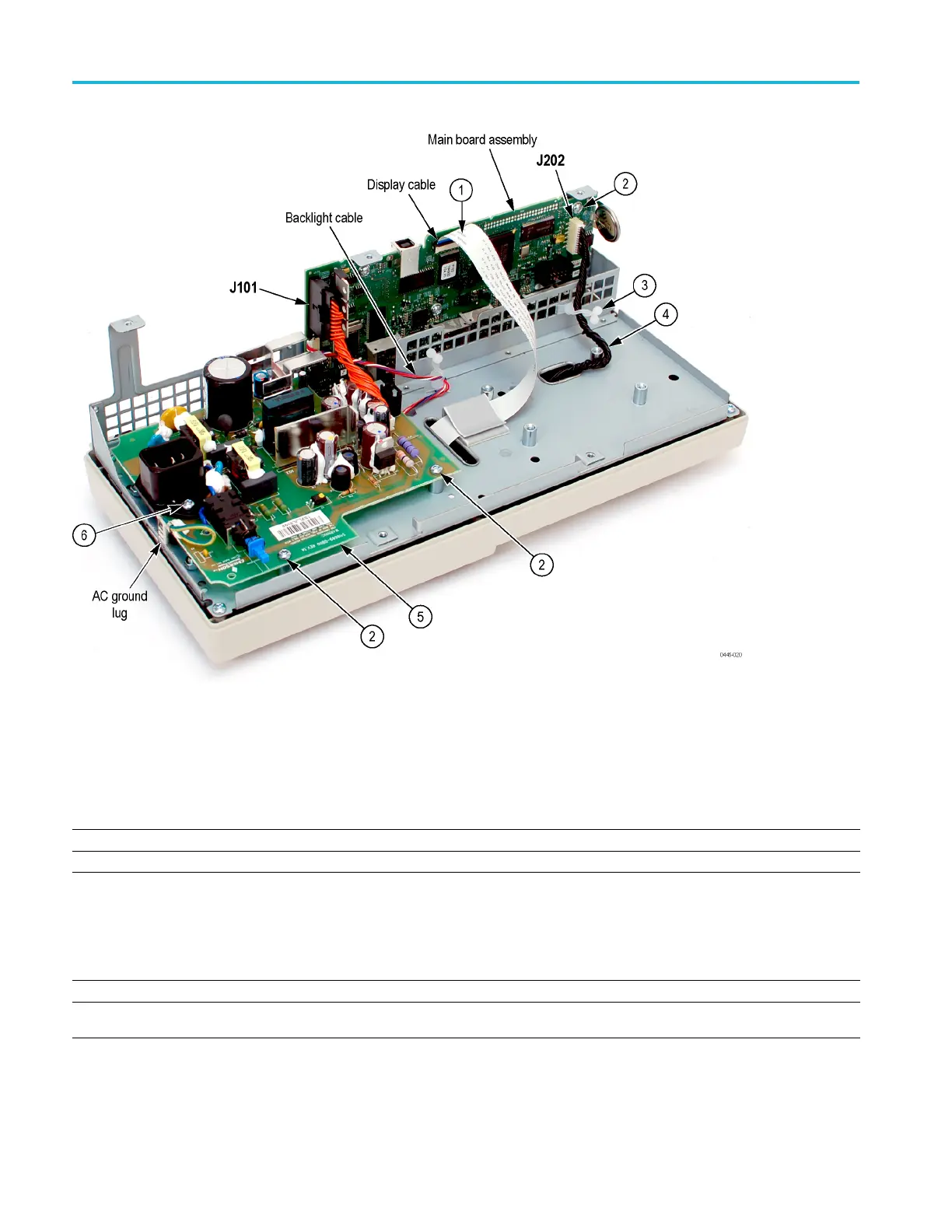

Figure 8-3: Power supply module, cables, and wires
Table 8-4: Replaceable parts list; power supply module, instrument cables, and wires
Fig. &
index
number
Tektronix
part
number
Serial
no.
effective
Serial
no.
discont’d Qty Name & description
8-3-
POWER SUPPLY, INSTRUMENT CABLES, WIRES
-1 174-6101-00 1
CA AS
SY, FPC/FFC; LCD DISPLAY DATA CABLE
-2 211-1272-00 10
SCREW, MACHINE; 6-32 X 0.250, PNH, STL, ZNPL, T- 15 TORX DR
-3 343-1673-00 2
CLA
MP, CABLE; NYLON 6/6, COLOR NATURAL
-4 174-4658-00 1
CA ASSY, SP; DISCRETE, 26 AWG, 5.5 L, FEMALE, 1 X 12, 0.059 (1.5 MM) CTR, DUAL
EN
DED, FRONT PANEL
8–8 TBS1000 Series O scilloscope Service Manual
